EBL 155420 H (2690892) - Beal 42" Lawn Tractor, Hydro Drive, 15.5hp (2010) Engine Group - 12.5HP, 15.5HP & 17.5HP Briggs & Stratton Parts Diagram

42" Lawn Tractor, Hydro Drive, 15.5hp

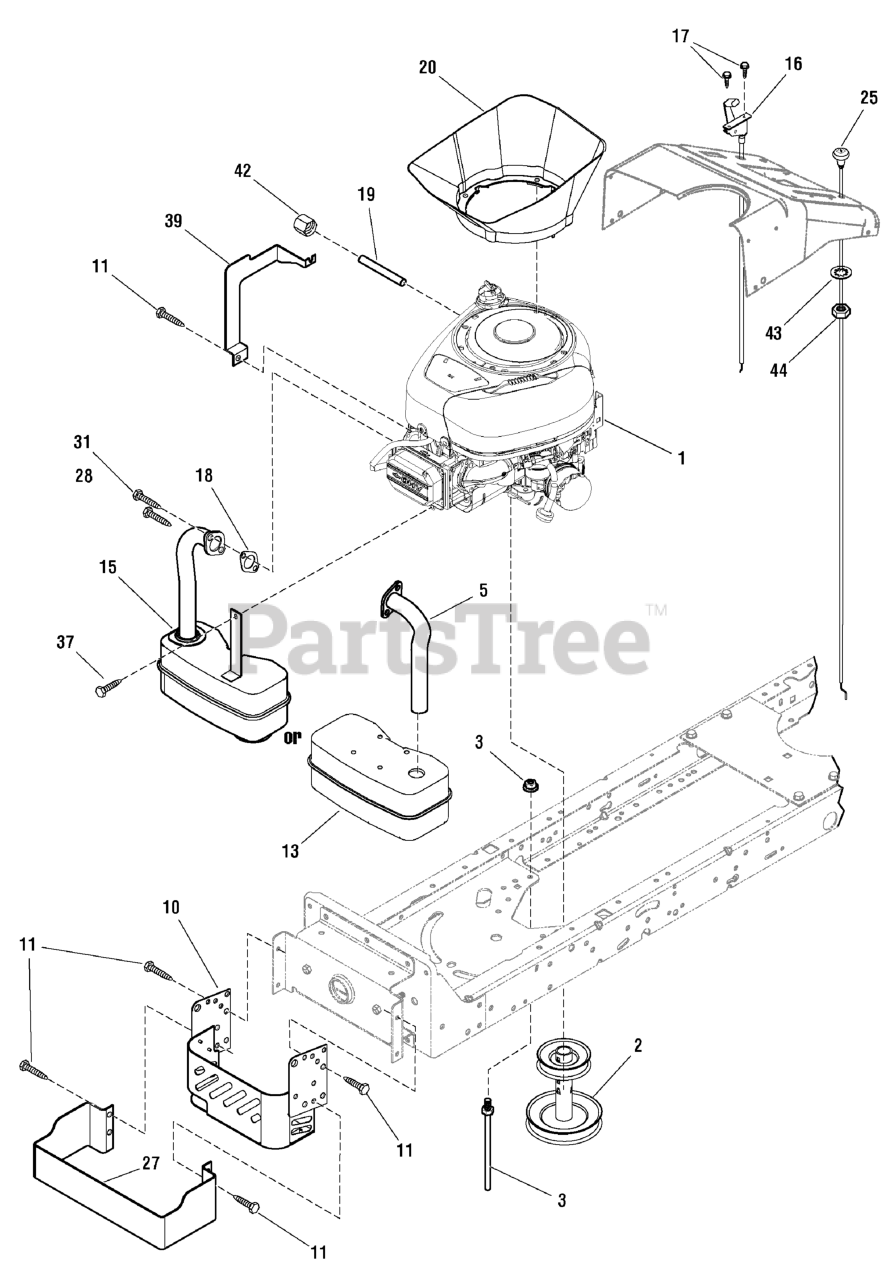

Engine Group - 12.5HP, 15.5HP & 17.5HP Briggs & Stratton Parts Diagram

  • Title

1

Murray 219807-0150-B1

* ENGINE, 12.5HP Briggs & Stratton

Note: (Engine Model: 219807-0150-B1)

$

$

Currently unavailable

1

Murray 31A607-0138-B1

* ENGINE, 15.5HP Briggs & Stratton

Note: (Engine Model: 31A607-0138-B1)

$

$

Currently unavailable

1

Murray 31G777-0139-B1

* ENGINE, 17.5HP Briggs & Stratton

Note: (Engine Model: 31G777-0139-B1)

$

$

Currently unavailable

2

Murray 690439MA

PULLEY, Stack

Note: (Used on 12.5HP, 15.5HP)

$64.99

$

In Stock, Qty 5

0

2

Murray 7101524YP

PULLEY, Stack

Note: (Used on 17.5HP)

$102.99

$

Usually ships in 2-12 days

0

3

Murray 094066MA

GUIDE, Belt

$14.99

$

In Stock, only 2 left!

0

4

Murray 015X79MA

NUT, Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

5

Murray 1001496MA

EXHAUST TUBE, Single

Note: (Used on 17.5HP)

$33.99

$

Usually ships in 2-12 days

0

10

Murray 1740501BMYP

HEAT SHIELD

Note: (Used on 12.5HP, 15.5HP)

$125.99

$

Usually ships in 2-12 days

0

10

Murray 7500533BMYP

HEAT SHIELD

Note: (Used on 17.5HP)

$90.99

$

Usually ships in 2-12 days

0

11

Murray 06X104MA

SCREW, Hex Head, 5/16-18 x 5/8

$4.49

$

Usually ships in 2-12 days

0

15

Murray 7102601YP

MUFFLER ASSEMBLY, Single

Note: (Used on 12.5HP)

$131.99

$

Usually ships in 2-12 days

0

15

Murray 7102483YP

MUFFLER ASSEMBLY, Single

Note: (Used on 15.5HP)

$131.99

$

Usually ships in 2-12 days

0

13

Murray 094654MA

MUFFLER, Single

Note: (Used on 17.5HP)

$

$

Not available

16

Murray 092371MA

THROTTLE CONTROL

$37.99

$

Usually ships in 2-12 days

0

17

Murray 26X201MA

SCREW, Self Tap #8 x 3/8

$4.49

$

In Stock, only 2 left!

0

18

Murray 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

19

Murray 7102821YP

NIPPLE, Pipe, 3/8 x 3 in

$14.99

$

Usually ships in 2-12 days

0

20

Murray 7101960YP

PLENUM, Murray

Note: (Used on 17.5HP)

$47.99

$

Usually ships in 2-12 days

0

25

Murray 690401MA

CABLE, Choke

$32.99

$

In Stock, only 1 left!

0

27

Murray 7300783BMYP

GUARD, Heat Shield, Front

$83.99

$

Usually ships in 2-12 days

0

28

Murray 7091738SM

SCREW, Torx Head, 5/16-18 x 3/4

Note: (Used on 12.5HP)

$4.99

$

In Stock, Qty 14

0

31

Murray 7091738SM

SCREW, 5/16-18 x 3/4

Note: (Used on 15.5HP, 17.5HP)

$4.99

$

In Stock, Qty 14

0

37

Murray 7091819SM

SCREW, Thread Forming, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

39

Murray 1740504BMYP

GUARD, Exhaust Pipe

Note: (Used on 12.5HP, 15.5HP)

$35.99

$

Usually ships in 2-12 days

0

39

Murray 1001880MA

GUARD, Exhaust Pipe
(Superseded to 1001880E701MA)

Note: (Used on 17.5HP)

$29.99

$

Usually ships in 2-12 days

0

42

Murray 021651ZMA

CAP, Pipe, 3/8

$7.49

$

Usually ships in 2-12 days

0

43

Murray 7090390SM

WASHER, Star
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

44

Murray 7091302SM

NUT, Hex, 3/8-16

$4.49

$

Usually ships in 2-12 days

0
