EBA 440 - RedMax Backpack Blower (1990-10) 022 - BLOWER/FUEL TANK/ACCESSORIES Parts Diagram

Backpack Blower

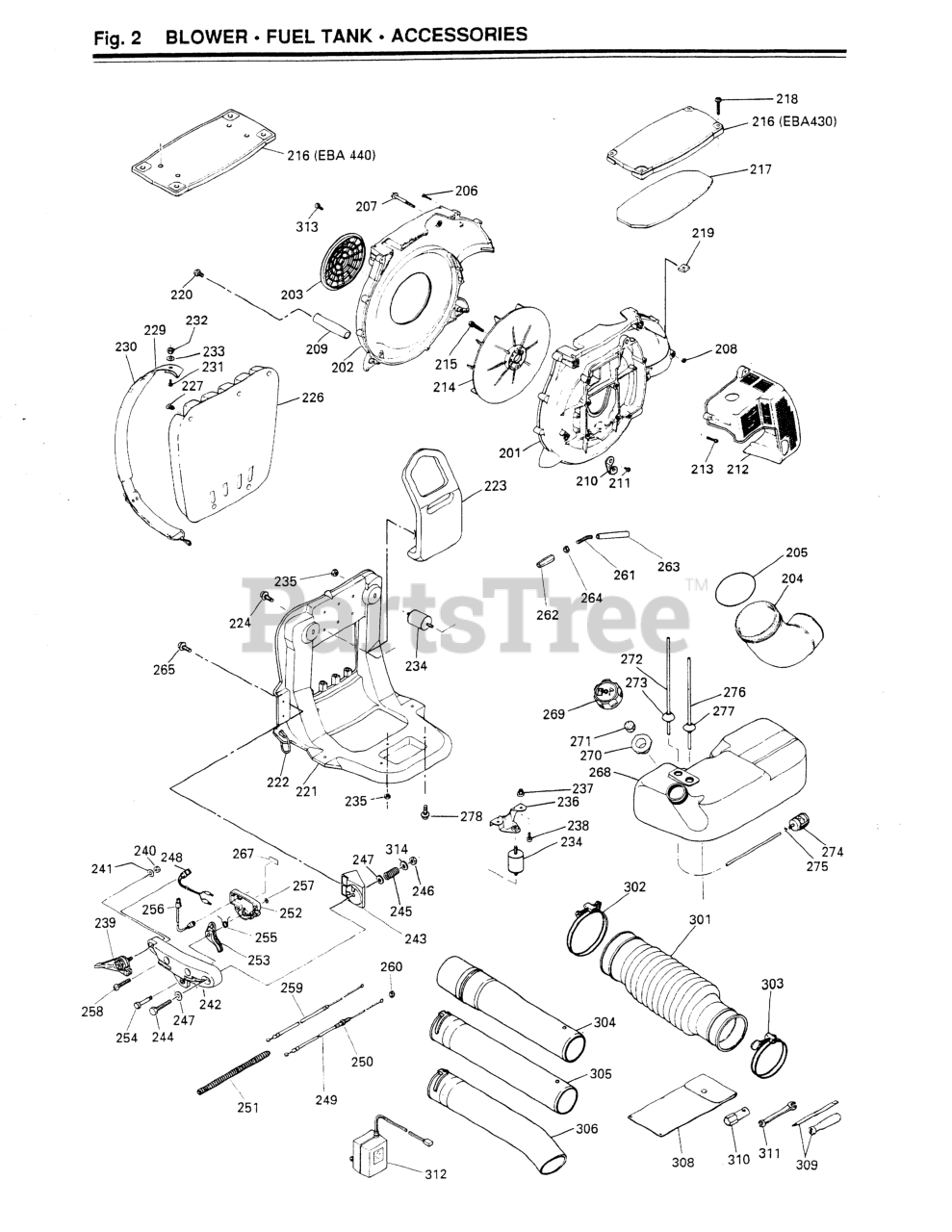

022 - BLOWER/FUEL TANK/ACCESSORIES Parts Diagram

  • Title
201

RedMax 346111113

3461-11116
(Superseded to 346111116)

$96.99

$

Usually ships in 3-10 days

0

202

RedMax 346111123

3461-11125
(Superseded to 346111125)

$82.81

$

Usually ships in 3-10 days

0

203

RedMax 306312221

3063-12222

$

$

Not available

204

RedMax 349011150

2751-31410
(Superseded to 513675101)

$

$

Not available

205

RedMax 0700002095

O-RING
(Superseded to 544264501)

$4.99

$

In Stock, only 2 left!

0

206

RedMax 349011160

SCREW
(Superseded to 514329901)

$2.49

$

Usually ships in 3-10 days

0

207

RedMax 349011171

3468-11171

$

$

Not available

208

RedMax 028010504

NUT, M5 X 4
(Superseded to 505172301)

$4.99

$

In Stock, only 2 left!

0

$1.71

$

Usually ships in 3-10 days

0

210

RedMax 349716110

BRACKET
(Superseded to 514340601)

$4.99

$

Usually ships in 3-10 days

0

211

RedMax 026390512

SCREW, M5 X 12
(Superseded to 516113001)

$

$

Not available

212

RedMax 346011211

3460-11212
(Superseded to 521122301)

$

$

Not available

213

RedMax 026330525

SCREW, M5 x 25

$0.31

$

Usually ships in 3-10 days

0

214

RedMax 349012110

FAN (USE 3405-12102)
(Superseded to 340512102)

$71.80

$

Usually ships in 3-10 days

0

215

RedMax 022530635

BOLT, M6x35 (RPLS -50635)

$

$

Not available

216

RedMax 349613110

3496-13112
(Superseded to 521149901)

$

$

Not available

217

RedMax 349013150

COVER, PACKING
(Superseded to 514330801)

$

$

Not available

218

RedMax 349013121

SCREW
(Superseded to 521142001)

$

$

Not available

219

RedMax 349013130

NUT
(Superseded to 521142101)

$

$

Not available

220

RedMax 022530512

BOLT, M5 X 12
(Superseded to 516089901)

$3.49

$

Usually ships in 3-10 days

0

221

RedMax 349721100

3497-21101
(Superseded to 349721101)

$97.76

$

Usually ships in 3-10 days

0

222

RedMax 349021120

RING (USE -21121)
(Superseded to 521142801)

$4.99

$

In Stock, Qty 14

0

223

$18.21

$

Usually ships in 3-10 days

0

224

$0.48

$

Usually ships in 3-10 days

0

226

RedMax 346021311

PAD (RPLS -21310)
(Superseded to 514314001)

$

$

Not available

227

RedMax 349521320

CLIP (RPLS 3490-21320)
(Superseded to 526476701)

$4.99

$

In Stock, Qty 20+

0

NI

RedMax 357014502

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$26.89

$

Usually ships in 3-10 days

0

229

RedMax 357014511

BAND
(Superseded to 521201101)

$11.99

$

Usually ships in 3-10 days

0

230

RedMax 305525230

3405-21420
(Superseded to 514283701)

$6.99

$

Usually ships in 3-10 days

0

231

RedMax 305025241

(NO LONGER AVAILABLE)

Note: Context Note: @ÿ

$

$

Not available

232

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

233

RedMax 349021530

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

234

RedMax 349022110

3407-22110

$

$

Not available

235

RedMax 0158400605

NUT, M6 X 5
(Superseded to 521519601)

$3.49

$

In Stock, Qty 7

0

236

RedMax 349022510

3490-22512

$

$

Not available

237

RedMax 160086110

WASHER
(Superseded to 516398801)

$

$

Not available

238

RedMax 026330516

SCREW, M5 x 16
(Superseded to 516110201)

$3.99

$

Usually ships in 3-10 days

0

NI

RedMax 349725001

LEVER (RPLS -25000)

$97.76

$

Usually ships in 3-10 days

0

239

RedMax 349525110

LEVER, THROTTLE
(Superseded to 514335901)

$13.99

$

Usually ships in 3-10 days

0

240

RedMax 028010504

NUT, M5 X 4
(Superseded to 505172301)

$4.99

$

In Stock, only 2 left!

0

241

RedMax 0164220508

WASHER, M5x.8(RPLS 01624-20508
(Superseded to 544276501)

$

$

Not available

242

RedMax 349725000

3497-25001
(Superseded to 349725001)

$97.76

$

Usually ships in 3-10 days

0

243

RedMax 349525310

BRACKET
(Superseded to 514336101)

$

$

Not available

244

RedMax 349525410

BOLT
(Superseded to 514336201)

$4.99

$

In Stock, only 4 left!

0

245

RedMax 349525420

SPRING
(Superseded to 514336301)

$4.99

$

In Stock, only 3 left!

0

246

RedMax 0158400605

NUT, M6 X 5
(Superseded to 521519601)

$3.49

$

In Stock, Qty 7

0

247

RedMax 0164220810

WASHER, PLANE(USE 01640-20816)
(Superseded to 516077101)

$3.99

$

Usually ships in 3-10 days

0

248

RedMax 349525510

SWITCH, STOP
(Superseded to 514336801)

$14.99

$

Usually ships in 3-10 days

0

249

RedMax 149183610

CABLE COMP,THROTTLE EB441
(Superseded to 513304701)

$

$

Not available

250

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

251

RedMax 349525810

TUBE (USE 5548-73310)
(Superseded to 515434901)

$

$

Not available

252

$5.14

$

Usually ships in 3-10 days

0

253

RedMax 349725620

LEVER
(Superseded to 514341201)

$

$

Not available

$1.14

$

Usually ships in 3-10 days

0

255

$0.76

$

Usually ships in 3-10 days

0

256

RedMax 349725710

SWITCH ASSEMBLY

$7.19

$

Usually ships in 3-10 days

0

257

RedMax 030800040

RING, SNAP, M4
(Superseded to 574054101)

$4.99

$

Usually ships in 3-10 days

0

258

RedMax 335632210

SCREW
(Superseded to 521078101)

$

$

Not available

259

RedMax 148083110

CABLE COMP, CHOKE

$4.67

$

Usually ships in 3-10 days

0

260

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

261

RedMax 148083211

PIPE (RPLS -83210)

$4.18

$

Usually ships in 3-10 days

0

$4.18

$

Usually ships in 3-10 days

0

263

RedMax 148083311

TUBE (RPLS -83310)

$0.97

$

Usually ships in 3-10 days

0

264

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

265

RedMax 349025910

BOLT
(Superseded to 521145801)

$4.99

$

In Stock, only 2 left!

0

267

RedMax 349725820

LABEL, ARM

$0.32

$

Usually ships in 3-10 days

0

268

RedMax 349023003

3490-23006

$

$

Not available

269

RedMax 140385302

CAP ASSEMBLY (USE 3490-23203)

$

$

Not available

270

RedMax 140085324

1400-85326
(Superseded to 515374001)

$3.49

$

In Stock, only 1 left!

0

271

RedMax 103085140

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

272

RedMax 349023400

1696-85400

$

$

Not available

273

RedMax 160085720

GROMMET
(Superseded to 513349801)

$4.99

$

Usually ships in 3-10 days

0

274

RedMax 330685400

3302-85400
(Superseded to 574081101)

$10.99

$

Usually ships in 3-10 days

0

275

RedMax 126085460

CLIP (REPLACES 2841-31280)
(Superseded to 506707001)

$4.99

$

In Stock, Qty 5

0

276

RedMax 349023500

PIPE ASSEMBLY
(Superseded to 514333401)

$

$

Not available

277

RedMax 160085720

GROMMET
(Superseded to 513349801)

$4.99

$

Usually ships in 3-10 days

0

278

RedMax 349023610

3490-23611
(Superseded to 349023611)

$

$

Not available

301

RedMax 349551110

HOSE, FLEXIBLE
(Superseded to 514337201)

$26.99

$

Usually ships in 3-10 days

0

302

RedMax 349051510

2756-51510 (RPLS. 07280-09832)
(Superseded to 526343301)

$5.99

$

Usually ships in 3-10 days

0

303

RedMax 305013230

2756-51520
(Superseded to 574006101)

$

$

Not available

304

RedMax 349551201

JOINT, SWIVEL
(Superseded to 514337601)

$

$

Not available

305

RedMax 349551321

PIPE, EXTENSION
(Superseded to 514337801)

$

$

Not available

306

RedMax 349551331

PIPE, BENT
(Superseded to 514338001)

$30.99

$

Usually ships in 3-10 days

0

NI

RedMax 349091000

3490-91001

$

$

Not available

$3.44

$

Usually ships in 3-10 days

0

309

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

310

$2.26

$

Usually ships in 3-10 days

0

311

RedMax 090100810

3540-91120
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

312

RedMax 349774910

CHARGER, FOR 120V AC

$65.26

$

Usually ships in 3-10 days

0

313

RedMax 026330510

SCREW, M5 X 10

$0.25

$

Usually ships in 3-10 days

0

314

RedMax 349525440

WASHER
(Superseded to 514336501)

$3.49

$

In Stock, only 3 left!

0
