EB6500X AH (EALC) - Honda Generator, Made in China (SN: EALC-1000001 - EALC-9999999) CONTROL PANEL (1) Parts Diagram

Generator, Made in China

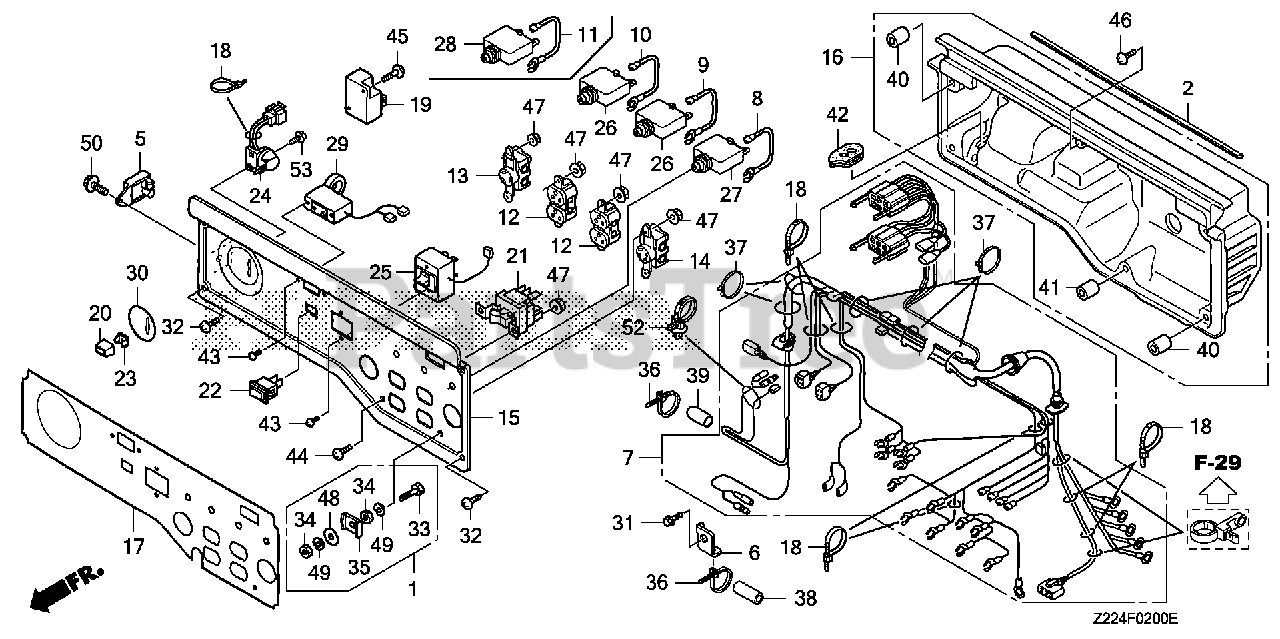

CONTROL PANEL (1) Parts Diagram

  • Title

1

Honda 31428-Z22-000

TERMINAL SET, GROUND

$9.49

$

In Stock, only 1 left!

0

2

Honda 31462-Z22-000

RUBBER, CONTROL

$314.99

$

Usually ships in 3-6 days

0

5

Honda 31720-Z18-003

DIODE

$118.99

$

Usually ships in 3-6 days

0

6

Honda 32103-Z18-000

BRACKET, WIRE HARNESS CLIP (A)

$

$

Not available

7

Honda 32150-Z23-E30

WIRE HARNESS ASSY., CONTROL

$399.99

$

Usually ships in 3-6 days

0

8

Honda 32151-Z22-E30

WIRE, TERMINAL (A)

$9.99

$

Usually ships in 3-6 days

0

9

Honda 32152-Z22-E30

WIRE, TERMINAL (B)

$10.99

$

Usually ships in 3-6 days

0

10

Honda 32153-Z22-E30

WIRE, TERMINAL (C)

$10.99

$

Usually ships in 3-6 days

0

11

Honda 32154-Z22-E30

WIRE, TERMINAL (D)

$12.99

$

Usually ships in 3-6 days

0

12

Honda 32330-Z07-C30

SEE PART DETAILS - PRI; RECEPTACLE ASSY. (125V-20A) (MATSUSHITA)

Note: Use up to Frame SN 1021770.

$61.99

$

In Stock, only 1 left!

0

12

Honda 32330-Z21-A31

RECEPTACLE (20A/125V) (CONFIRM RECEPTACLE AS NON-GCFI. IF GCFI, TRY #42.)

Note: Use from Frame SN 1021771.

$55.99

$

Usually ships in 3-6 days

0

13

Honda 32332-Z22-E31

RECEPTACLE (30A-125V)

Note: Use from Frame SN 1021771.

$93.99

$

In Stock, only 1 left!

0

13

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

Note: Use up to Frame SN 1021770.

$48.99

$

In Stock, only 1 left!

0

14

Honda 32334-ZA0-631

SEE PART DETAILS - PRI; RECEPTACLE (30A/125-250V)

Note: Use up to Frame SN 1021770.

$

$

Not available

14

Honda 32334-Z22-A31

RECEPTACLE (30A-125/250V)

Note: Use from Frame SN 1021771.

$111.99

$

In Stock, only 1 left!

0

15

Honda 32345-Z22-E31ZA

PANEL, CONTROL *NH105* (MAT BLACK)

$242.99

$

Usually ships in 3-6 days

0

16

Honda 32356-Z22-010ZA

CASE, CONTROL PANEL *R280* (POWER RED)

$

$

Not available

17

Honda 32366-Z23-E31

MARK, PANEL

$101.99

$

Usually ships in 3-6 days

0

18

Honda 32903-ZC8-N01

TIE, CABLE (C)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 34140-Z22-E31

CONTROL UNIT, IDLE

$259.99

$

Usually ships in 3-6 days

0

20

Honda 35123-Z22-E31

KNOB, ENGINE SWITCH

$9.49

$

In Stock, only 1 left!

0

21

Honda 35320-Z22-E31

SWITCH ASSY., VOLT CHANGE

$113.99

$

Usually ships in 3-6 days

0

22

Honda 35340-Z22-E31

SWITCH ASSY., IDLE CONTROL

$41.99

$

Usually ships in 3-6 days

0

23

Honda 36106-892-003

BUSH, CONTROL KNOB

$6.99

$

Usually ships in 3-6 days

0

24

Honda 36110-ZB4-702

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

$35.99

$

Usually ships in 3-6 days

0

25

Honda 38220-Z23-E30

BREAKER, CIRCUIT (25A)

$463.99

$

Usually ships in 3-6 days

0

26

Honda 38240-Z22-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A)

$92.99

$

In Stock, only 1 left!

0

27

Honda 38241-Z22-E31

PROTECTOR, CIRCUIT (30A)

$92.99

$

Usually ships in 3-6 days

0

28

Honda 38241-Z22-E31

PROTECTOR, CIRCUIT (30A)

$92.99

$

Usually ships in 3-6 days

0

29

Honda 38540-ZC2-E31

SEE PART DETAILS - PRI; RELAY ASSY. (GFCI)

$397.99

$

In Stock, only 1 left!

0

30

Honda 87501-Z22-E30

MARK, ENGINE SWITCH

$22.99

$

Usually ships in 3-6 days

0

31

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

32

Honda 90101-Z15-000

SCREW, TRUSS (6X18)

$0.99

$

Usually ships in 3-6 days

0

33

Honda 90111-Z22-000

BOLT, HEX. (6X28)

$3.49

$

In Stock, only 1 left!

0

34

Honda 90112-Z22-000

NUT, HEX. (6MM)

$1.49

$

In Stock, only 1 left!

0

35

Honda 90501-ZA7-640

RETAINER (6MM)

$3.99

$

In Stock, only 1 left!

0

36

Honda 90672-SB2-003

STRAP, CABLE (105MM) *NH1* (Honda Code 1685536). (BLACK)

$7.49

$

Usually ships in 3-6 days

0

37

Honda 90672-ZB4-003

TIE, CABLE (NATURAL 225X5.0)

$6.49

$

Usually ships in 3-6 days

0

38

Honda 91406-ZB3-740

TUBE, CORD

$5.49

$

Usually ships in 3-6 days

0

39

Honda 91408-Z22-000

TUBE (22X60)

$7.99

$

Usually ships in 3-6 days

0

40

Honda 91551-Z15-000

COLLAR, CONTROL CASE

$3.49

$

Usually ships in 3-6 days

0

41

Honda 91551-Z22-000

COLLAR, CONTROL CASE

$3.49

$

Usually ships in 3-6 days

0

42

Honda 91601-Z22-000

GROMMET, TUBE

$2.99

$

Usually ships in 3-6 days

0

43

Honda 93500-04006-0G

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 6

0

44

Honda 93500-05018-0G

SCREW, PAN (5X18)

$0.99

$

In Stock, Qty 10

0

45

Honda 93892-05014-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X14) (Honda Code 0660720).

$1.49

$

Usually ships in 3-6 days

0

46

Honda 93911-24410

SCREW, TAPPING (4X16) (NOT AVAILABLE)

$

$

Not available

47

Honda 94050-04000

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 5

0

48

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

49

Honda 94111-06000

SEE PART DETAILS - PRI; WASHER, SPRING (6MM)

$1.49

$

In Stock, only 1 left!

0

50

Honda 96001-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2105930).

$2.49

$

In Stock, Qty 5

0

53

Honda 93500-04008-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X8) (Honda Code 0156463).

$1.49

$

In Stock, only 4 left!

0
