EB6500X A (EALC) - Honda Generator, Made in China (SN: EALC-1000001 - EALC-9999999) ROTOR@STATOR Parts Diagram

Generator, Made in China

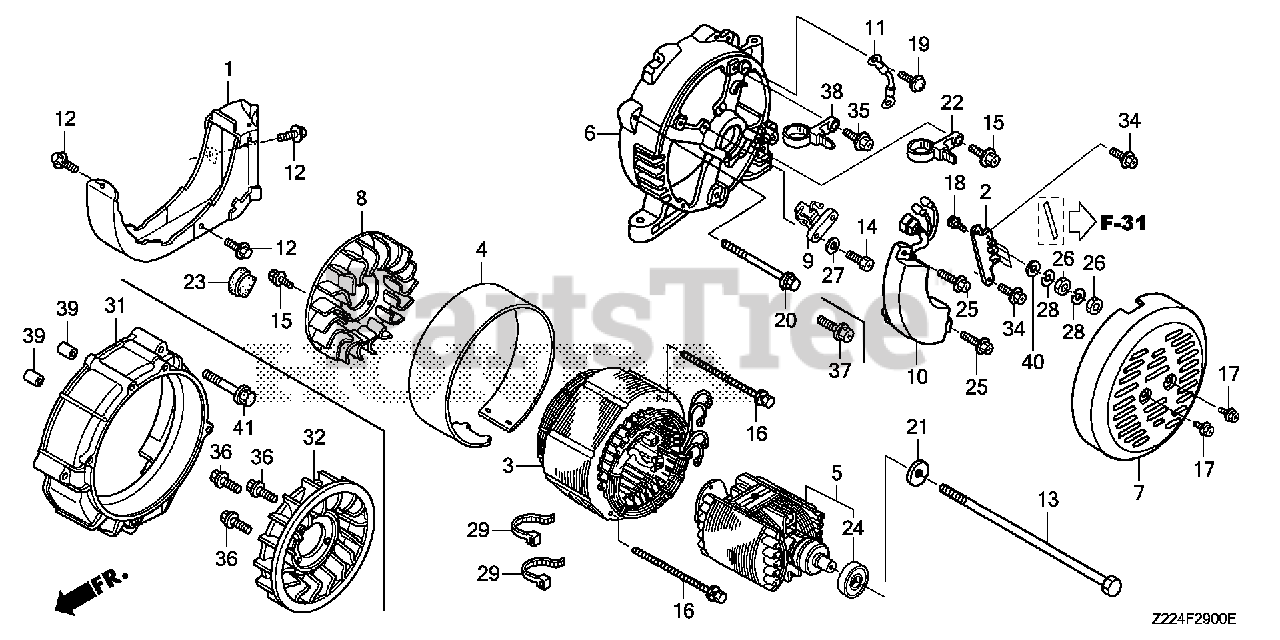

ROTOR@STATOR Parts Diagram

  • Title

1

Honda 11315-Z22-000

COVER, DUCT

$49.99

$

Usually ships in 3-6 days

0

2

Honda 31118-898-691

TERMINAL, VOLT CHANGE

$46.99

$

Usually ships in 3-6 days

0

3

Honda 31120-Z23-E31

STATOR ASSY.

$1260.99

$

Usually ships in 3-6 days

0

4

Honda 31127-Z18-000ZB

COVER, STATOR *NH105* (MAT BLACK)

$48.99

$

Usually ships in 3-6 days

0

5

Honda 31130-Z23-000

ROTOR

$530.99

$

Usually ships in 3-6 days

0

6

Honda 31171-ZR6-T61

HOUSING, RR.

$

$

Not available

7

Honda 31186-Z22-000ZA

COVER, GENERATOR END *NH105* (MAT BLACK)

$71.99

$

Usually ships in 3-6 days

0

8

Honda 31190-Z23-H60

FAN, GENERATOR COOLING

Note: Use from Frame SN 1019233.

$26.99

$

Usually ships in 3-6 days

0

8

Honda 31191-ZR6-T61

FAN, GENERATOR COOLING

Note: Use up to Frame SN 1019232.

$36.99

$

Usually ships in 3-6 days

0

9

Honda 31295-ZR6-T61

BRUSH ASSY.

$30.99

$

Usually ships in 3-6 days

0

10

Honda 31700-Z22-A31

REGULATOR ASSY., AUTOMATIC VOLTAGE

$382.99

$

Usually ships in 3-6 days

0

11

Honda 32611-Z22-000

WIRE, GROUND

$5.99

$

Usually ships in 3-6 days

0

12

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90101-ZD1-E30

BOLT, HEX. (10X265)

$29.99

$

Usually ships in 3-6 days

0

14

Honda 90031-ZC0-003

SCREW, TAPPING (5X18)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90091-ZR8-T61

BOLT-WASHER (5X210)

$7.49

$

Usually ships in 3-6 days

0

17

Honda 90101-Z18-000

SCREW, TAPPING (5X12)

$1.99

$

In Stock, only 3 left!

0

18

Honda 90102-Z22-000

BOLT, HEX. (5X20)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90102-899-003

SCREW, PAN (5X12) (GROUND CABLE)

$4.49

$

Usually ships in 3-6 days

0

20

Honda 90157-ZR8-T61

BOLT, FLANGE (6X175)

$7.49

$

Usually ships in 3-6 days

0

21

Honda 90504-ZA0-000

WASHER (10.5MM)

$6.49

$

Usually ships in 3-6 days

0

22

Honda 90673-ZR6-T61

TIE, CABLE

$4.49

$

Usually ships in 3-6 days

0

23

Honda 90855-ZB4-000

GROMMET, CRANKCASE

$4.49

$

Usually ships in 3-6 days

0

24

Honda 91051-ZB4-003

BEARING ASSY. (6204)

$33.99

$

Usually ships in 3-6 days

0

25

Honda 90103-Z22-000

SCREW, TAPPING (5X20)

$1.99

$

In Stock, only 2 left!

0

26

Honda 94002-05390-0S

NUT, HEX. (5MM)

$0.99

$

Usually ships in 3-6 days

0

27

Honda 94101-05800

WASHER, PLAIN (5MM) (Honda Code 0285791).

$1.49

$

In Stock, only 2 left!

0

28

Honda 94111-05800

SEE PART DETAILS - PRI; WASHER, SPRING (5MM) (Honda Code 0251215).

$1.49

$

Usually ships in 3-6 days

0

34

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

35

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

38

Honda 90673-ZR6-T61

TIE, CABLE

$4.49

$

Usually ships in 3-6 days

0

40

Honda 94101-05800

WASHER, PLAIN (5MM) (Honda Code 0285791).

$1.49

$

In Stock, only 2 left!

0
