EB6500SX A (EZCH) - Honda Generator, Made in Japan (SN: EZCH-1000001 - EZCH-1049999) RECOIL STARTER (1) Parts Diagram

Generator, Made in Japan

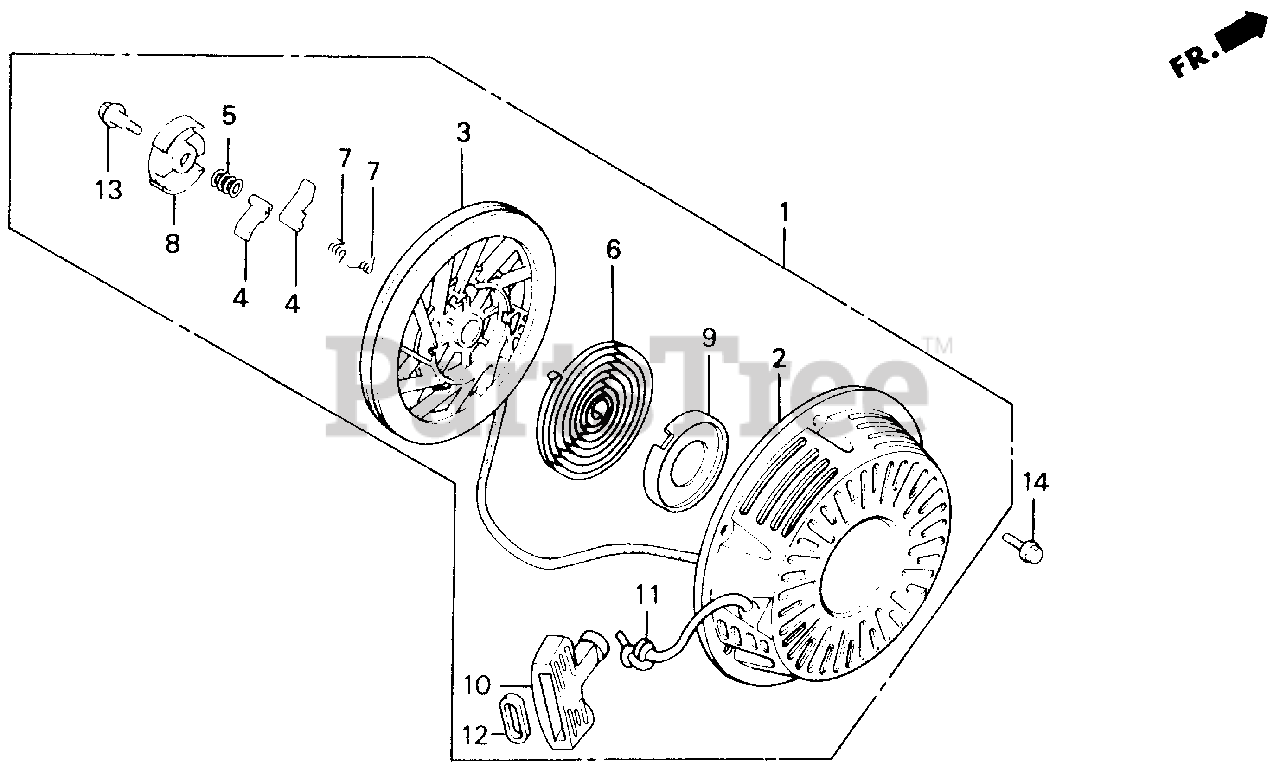

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZE3-W01ZA

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: Use up to Engine SN 2070390.

$

$

Currently unavailable

1

Honda 28400-ZE3-W01ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *NH1* (BLACK)

Note: Use from Engine SN 2070391 to 2584635.

$

$

Currently unavailable

1

Honda 28400-ZE3-W01ZP

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R280* (POWER RED)
(Superseded to 28400-ZE3-W02ZP)

Note: Use up to Engine SN 2070390.

$123.99

$

In Stock, only 1 left!

0

2

Honda 28410-ZE3-W01ZA

SEE PART DETAILS - SUP; CASE, RECOIL STARTER *R8* (BRIGHT RED)

Note: Use up to Engine SN 2070390.

$

$

Currently unavailable

2

Honda 28410-ZE3-W01ZB

CASE, RECOIL STARTER *NH1* (BLACK)

Note: Use from Engine SN 2070391 to 2584635.

$112.99

$

In Stock, only 1 left!

0

3

Honda 28421-ZE3-W01

PULLEY, RECOIL STARTER

Note: Use up to Engine SN 2584635.

$44.99

$

In Stock, only 1 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

Note: Use up to Engine SN 2584635.

$7.49

$

Usually ships in 3-6 days

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

Note: Use up to Engine SN 2584635.

$6.49

$

In Stock, Qty 10

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

Note: Use up to Engine SN 2584635.

$18.99

$

Usually ships in 3-6 days

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

Note: Use up to Engine SN 2584635.

$5.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

Note: Use up to Engine SN 2584635.

$14.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE2-W02

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZE2-W03)

Note: Use up to Engine SN 2584635.

$7.99

$

Usually ships in 3-6 days

0

11

Honda 28462-ZE3-W01

ROPE, RECOIL STARTER

Note: Use up to Engine SN 2584635.

$14.99

$

In Stock, only 1 left!

0

12

Honda 28469-ZE2-W01

GRIP, REINFORCEMENT

Note: Use up to Engine SN 2584635.

$6.99

$

In Stock, only 1 left!

0

13

Honda 90004-ZE2-W01

SCREW, CENTER

Note: Use up to Engine SN 2584635.

$4.49

$

In Stock, Qty 10

0

14

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: Use up to Engine SN 2584635.

$3.49

$

In Stock, Qty 8

0
