EB6500SX A (EZCH) - Honda Generator, Made in Japan (SN: EZCH-1000001 - EZCH-1049999) CAMSHAFT Parts Diagram

Generator, Made in Japan

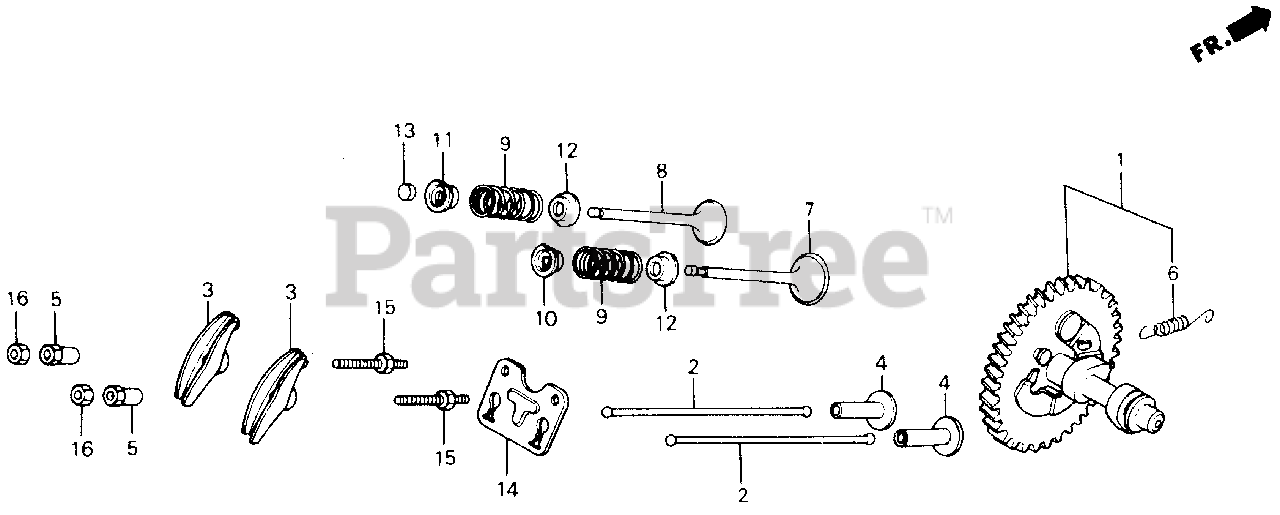

CAMSHAFT Parts Diagram

  • Title
1

Honda 14100-ZF6-W00

SEE PART DETAILS - SUP; CAMSHAFT ASSY.
(Superseded to 14100-ZF6-W01)

Note: Use up to Engine SN 2391939.

$265.99

$

Usually ships in 3-6 days

0

1

Honda 14100-ZF6-W01

SEE PART DETAILS - PRI; CAMSHAFT ASSY.

Note: Use from Engine SN 2391940.

$265.99

$

Usually ships in 3-6 days

0

1

Honda 14100-ZF6-305

SEE PART DETAILS - SUP; CAMSHAFT

Note: Use up to Engine SN 2391939.

$

$

Not available

2

Honda 14410-ZE3-013

SEE PART DETAILS - PRI; ROD, PUSH

$8.49

$

In Stock, Qty 5

0

3

Honda 14431-ZE2-010

SEE PART DETAILS - PRI; ARM, VALVE ROCKER

$9.99

$

In Stock, Qty 20+

0

4

Honda 14441-ZE2-000

SEE PART DETAILS - PRI; LIFTER, VALVE

$17.99

$

In Stock, only 2 left!

0

5

Honda 14451-ZE1-013

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

$6.49

$

In Stock, Qty 5

0

6

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN

$3.49

$

In Stock, only 1 left!

0

7

Honda 14711-ZE3-000

VALVE, IN.

$23.99

$

In Stock, only 3 left!

0

8

Honda 14721-ZE3-810

SEE PART DETAILS - SUP; VALVE, EX. (STELLITE)
(Superseded to 14721-ZK6-800)

$81.99

$

Usually ships in 3-6 days

0

8

Honda 14721-ZK6-800

SEE PART DETAILS - PRI; VALVE, EX.

$81.99

$

Usually ships in 3-6 days

0

9

Honda 14751-ZE2-003

SPRING, VALVE

$5.99

$

In Stock, only 2 left!

0

10

Honda 14771-ZE2-000

SEE PART DETAILS - SUP; RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z8S-000)

$2.49

$

In Stock, Qty 10

0

11

Honda 14773-ZE2-000

RETAINER, EX. VALVE SPRING

$2.99

$

In Stock, only 2 left!

0

12

Honda 14775-ZE2-010

SEAT, VALVE SPRING

$3.99

$

In Stock, only 2 left!

0

13

Honda 14781-ZE2-000

ROTATOR, VALVE

$5.99

$

In Stock, Qty 10

0

14

Honda 14791-ZE2-010

SEE PART DETAILS - PRI; PLATE, PUSH ROD GUIDE

$4.49

$

In Stock, only 2 left!

0

15

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

$8.99

$

In Stock, only 2 left!

0

16

Honda 90206-ZE1-000

NUT, PIVOT ADJUSTING

$4.49

$

In Stock, Qty 6

0

17

Honda 12209-ZE8-003

SEAL, VALVE STEM

Note: Use from Engine SN 3065844.

$8.99

$

In Stock, Qty 8

0
