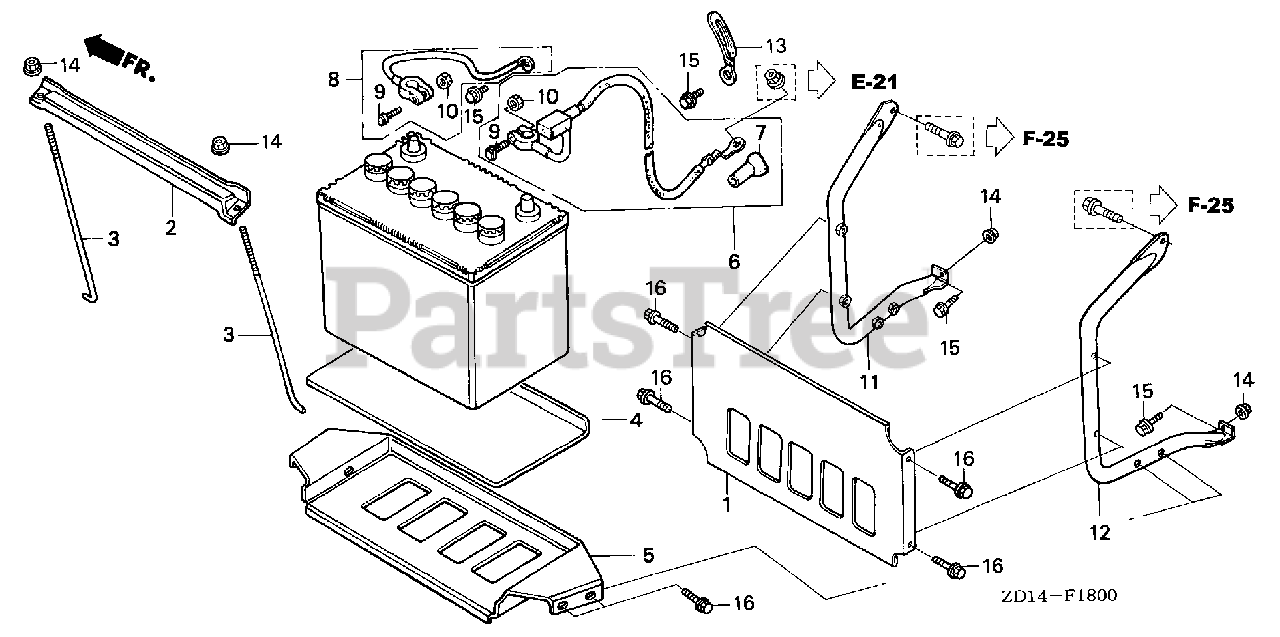

EB6500SX A (EZCH) - Honda Generator, Made in Japan (SN: EZCH-1000001 - EZCH-1049999) BATTERY Parts Diagram

Generator, Made in Japan

BATTERY Parts Diagram

  • Title

NI

Honda 31500-SB2-HPE

BATTERY (GR.51)

$

$

Not available

1

Honda 31511-ZB4-000

PLATE, BATTERY GUARD

$78.99

$

Usually ships in 3-6 days

0

2

Honda 31512-880-810

PLATE, BATTERY SETTING

$

$

Not available

3

Honda 31513-634-000

BOLT, BATTERY SETTING (220MM)

$11.99

$

Usually ships in 3-6 days

0

4

Honda 31521-880-000

PLATE, BATTERY

$24.99

$

Usually ships in 3-6 days

0

5

Honda 31550-899-000

BASE, BATTERY TRAY

$84.99

$

Usually ships in 3-6 days

0

6

Honda 32410-ZB4-620

CABLE ASSY., STARTING

$53.99

$

Usually ships in 3-6 days

0

7

Honda 32411-230-000

COVER, STARTER MOTOR TERMINAL

$9.49

$

Usually ships in 3-6 days

0

8

Honda 32430-ZB4-620

CABLE ASSY., GROUND

$35.99

$

Usually ships in 3-6 days

0

9

Honda 32601-SK7-900

SEE PART DETAILS - PRI; BOLT, BATTERY TERMINAL

$12.99

$

Usually ships in 3-6 days

0

10

Honda 32602-SK7-900

NUT, BATTERY TERMINAL

$7.49

$

Usually ships in 3-6 days

0

11

Honda 50365-ZD1-E30ZA

GUARD, FR. BATTERY *NH105* (MAT BLACK)

$105.99

$

Usually ships in 3-6 days

0

12

Honda 50375-ZD1-E30ZA

GUARD, RR. BATTERY *NH105* (MAT BLACK)

$105.99

$

Usually ships in 3-6 days

0

13

Honda 91406-729-000

CLIP, HEAD

$4.49

$

Usually ships in 3-6 days

0

14

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

15

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

16

Honda 95701-06028-00

BOLT, FLANGE (6X28)

$2.49

$

In Stock, Qty 7

0
