EB6500SX A/A (EZCH) - Honda Generator, Made in Japan (SN: EZCH-1050001 - EZCH-9999999) CRANKCASE COVER Parts Diagram

Generator, Made in Japan

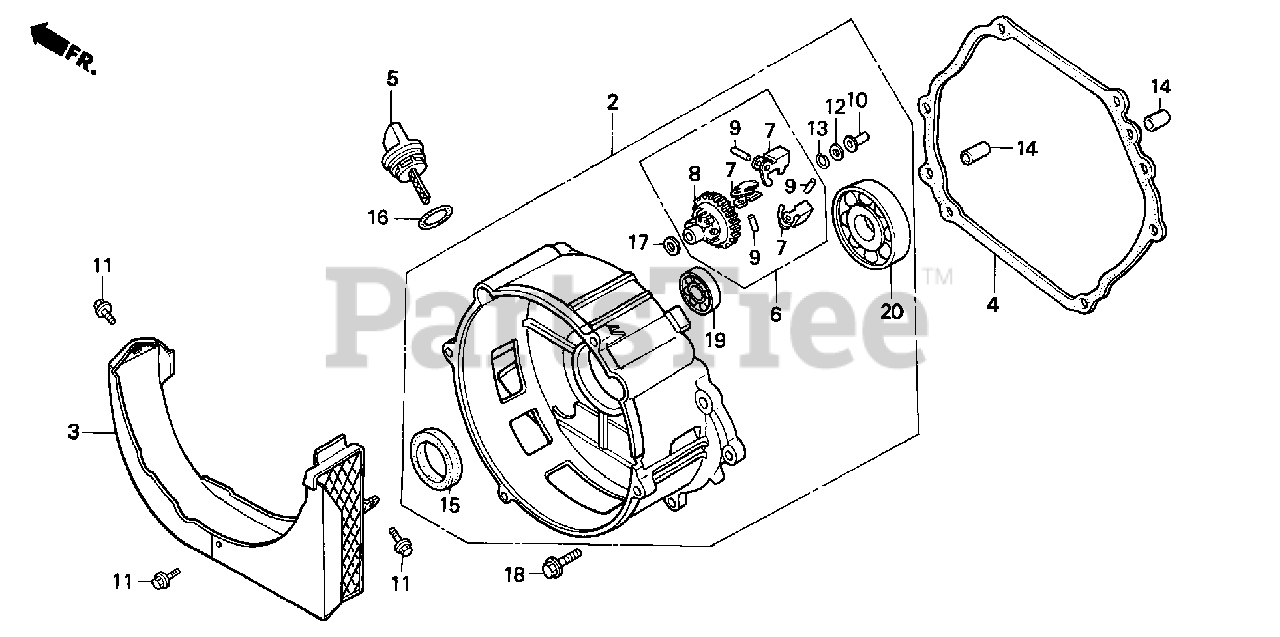

CRANKCASE COVER Parts Diagram

  • Title

2

Honda 11300-ZE3-704

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$290.99

$

Usually ships in 3-6 days

0

3

Honda 11315-ZE3-700

COVER, DUCT

$63.99

$

Usually ships in 3-6 days

0

4

Honda 11381-ZE3-801

SEE PART DETAILS - PRI; GASKET, CASE COVER

$13.99

$

In Stock, only 4 left!

0

5

Honda 15620-ZE2-700

CAP, OIL FILLER

$8.99

$

In Stock, only 2 left!

0

6

Honda 16510-ZE3-000

GOVERNOR ASSY.

$33.99

$

In Stock, only 1 left!

0

7

Honda 16511-ZE8-000

WEIGHT, GOVERNOR

$7.99

$

Usually ships in 3-6 days

0

8

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT

$19.99

$

Usually ships in 3-6 days

0

9

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

10

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, only 3 left!

0

11

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

14

Honda 90701-HC4-000

PIN, DOWEL (8X12)

$3.99

$

In Stock, only 2 left!

0

15

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$11.99

$

In Stock, Qty 6

0

16

Honda 91301-805-000

O-RING (26X2.7)

$5.49

$

In Stock, Qty 7

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 20+

0

19

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 3 left!

0

20

Honda 96100-62070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0
