EB6500SX A/A (EZCH) - Honda Generator, Made in Japan (SN: EZCH-1050001 - EZCH-9999999) CONTROL BOX Parts Diagram

Generator, Made in Japan

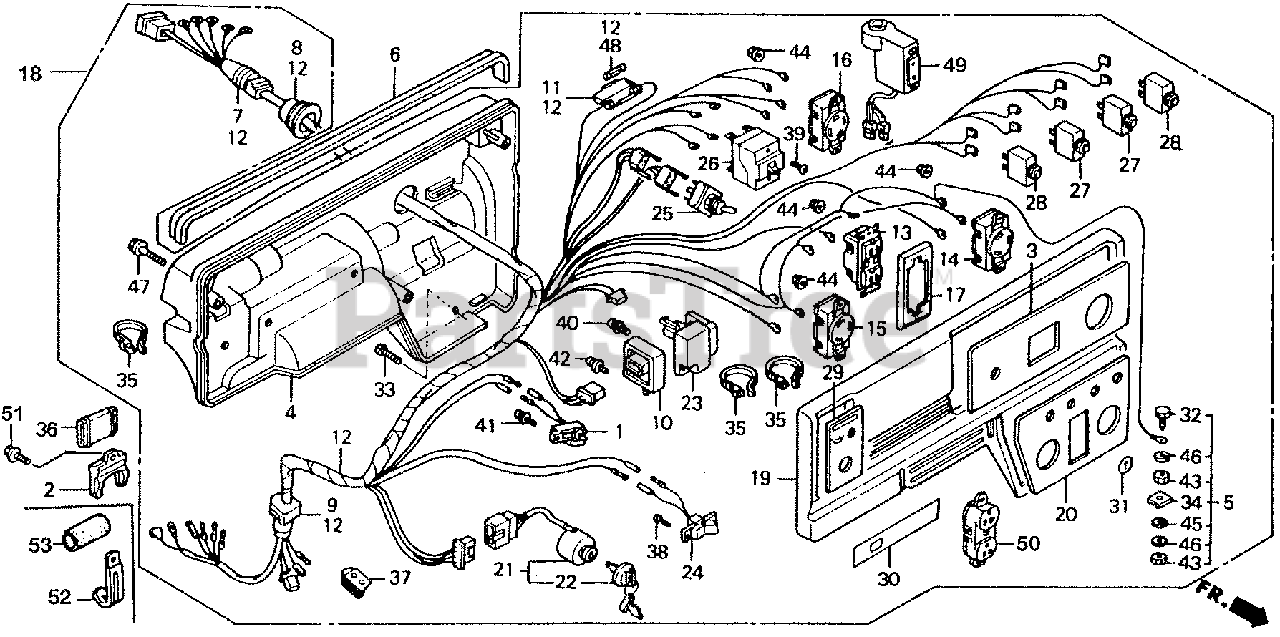

CONTROL BOX Parts Diagram

  • Title

3

Honda 31406-ZB4-E32

MARK, SWITCH PANEL

$

$

Not available

4

Honda 31425-ZB4-010ZD

SEE PART DETAILS - PRI; CASE, CONTROL *R280* (POWER RED)

$

$

Not available

5

Honda 31428-899-840

TERMINAL SET, GROUND

$25.99

$

Usually ships in 3-6 days

0

6

Honda 31462-ZB4-000

RUBBER, CONTROL

$22.99

$

In Stock, only 1 left!

0

7

Honda 31481-ZB4-003

GROMMET, A.C. WIRE

$15.99

$

Usually ships in 3-6 days

0

8

Honda 31482-ZB4-003

GROMMET, MAIN WIRE

$18.99

$

Usually ships in 3-6 days

0

9

Honda 31483-ZB4-003

GROMMET, SWITCH WIRE

$13.99

$

Usually ships in 3-6 days

0

10

Honda 31720-ZD1-E31

DIODE ASSY.

$

$

Not available

11

Honda 32114-230-003

CASE, FUSE CONNECTOR (SUMITOMO)

$6.49

$

Usually ships in 3-6 days

0

12

Honda 32150-ZD1-E33

WIRE HARNESS ASSY. (EB-A)

$

$

Not available

14

Honda 32331-899-630

RECEPTACLE (20A/125V)

$40.99

$

Usually ships in 3-6 days

0

15

Honda 32332-ZB4-630

SEE PART DETAILS - SUP; RECEPTACLE (30A/125V)

$50.99

$

In Stock, only 1 left!

0

15

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$50.99

$

In Stock, only 1 left!

0

16

Honda 32334-ZA0-631

SEE PART DETAILS - PRI; RECEPTACLE (30A/125-250V)

$38.99

$

Usually ships in 3-6 days

0

18

Honda 32340-ZD1-E36ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use up to Frame SN 1052178.

$

$

Not available

18

Honda 32340-ZD1-E36ZB

BOX ASSY., CONTROL *R280* (POWER RED)

Note: Use from Frame SN 1052179.

$

$

Currently unavailable

19

Honda 32341-ZD1-E31ZB

SEE PART DETAILS - PRI; PANEL, CONTROL *R280* (POWER RED)

$

$

Not available

20

Honda 31408-ZC2-E32

MARK, A.C. OUT

$79.99

$

Usually ships in 3-6 days

0

21

Honda 35100-ZB4-013

SEE PART DETAILS - SUP; SWITCH ASSY., COMBINATION
(Superseded to 35100-ZB4-023)

$152.99

$

Usually ships in 3-6 days

0

22

Honda 35111-880-003

SEE PART DETAILS - SUP; KEY
(Superseded to 35111-880-013)

Note: Use up to Frame SN 1056180.

$12.99

$

In Stock, Qty 5

0

22

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY

$12.99

$

In Stock, Qty 5

0

23

Honda 36210-ZB4-004

SEE PART DETAILS - SUP; THROTTLE UNIT, AUTO (SAWAFUJI)
(Superseded to 36210-ZB4-014)

$279.99

$

Usually ships in 3-6 days

0

23

Honda 36210-ZB4-014

SEE PART DETAILS - PRI; THROTTLE UNIT, AUTO (SAWAFUJI)

$279.99

$

Usually ships in 3-6 days

0

24

Honda 36214-ZB4-003

SEE PART DETAILS - SUP; SWITCH, AUTO THROTTLE
(Superseded to 36214-ZB4-013)

$

$

Not available

25

Honda 36221-ZD1-E30

SWITCH ASSY., VOLT CHANGE

$247.99

$

Usually ships in 3-6 days

0

26

Honda 38220-ZD1-630

BREAKER, CIRCUIT (23A)

$

$

Not available

27

Honda 38240-ZC2-E31

SEE PART DETAILS - SUP; PROTECTOR, CIRCUIT (20A)
(Superseded to 38240-ZC2-E32)

$104.99

$

In Stock, only 1 left!

0

27

Honda 38240-ZC2-E32

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A)

$104.99

$

In Stock, only 1 left!

0

28

Honda 38241-ZC2-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (30A)

$103.99

$

Usually ships in 3-6 days

0

29

Honda 87501-ZB4-A32

MARK, ENGINE SWITCH

$

$

Not available

30

Honda 87524-ZB4-E31

MARK, AUTO-THROTTLE

$9.49

$

Usually ships in 3-6 days

0

31

Honda 87534-892-640

SEE PART DETAILS - PRI; MARK, GROUND

$2.99

$

In Stock, Qty 5

0

32

Honda 90011-899-840

BOLT, HEX. (6X28)

$4.99

$

Usually ships in 3-6 days

0

33

Honda 90101-692-000

SCREW, GLOVE BOX

$1.99

$

Usually ships in 3-6 days

0

34

Honda 90501-ZA7-640

RETAINER (6MM)

$4.49

$

In Stock, only 1 left!

0

35

Honda 90672-ZB4-003

TIE, CABLE

$6.49

$

Usually ships in 3-6 days

0

37

Honda 91601-ZB4-003

GROMMET, TUBE

$4.49

$

Usually ships in 3-6 days

0

38

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, only 3 left!

0

39

Honda 93500-04006-0H

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 7

0

40

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.99

$

In Stock, Qty 11

0

42

Honda 93893-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

$1.99

$

Usually ships in 3-6 days

0

42

Honda 93893-04012-18

SEE PART DETAILS - SUP; SCREW-WASHER (4X12)
(Superseded to 93893-04012-08)

$1.99

$

Usually ships in 3-6 days

0

43

Honda 94001-06390-0S

NUT, HEX. (6MM)

$2.49

$

Usually ships in 3-6 days

0

44

Honda 94050-04000

NUT, FLANGE (4MM)

$1.99

$

In Stock, only 4 left!

0

45

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

46

Honda 94111-06800

WASHER, SPRING (6MM)

$1.99

$

Usually ships in 3-6 days

0

47

Honda 95701-06040-08

BOLT, FLANGE (6X40)

$2.99

$

Usually ships in 3-6 days

0

48

Honda 98200-21000

SEE PART DETAILS - PRI; FUSE B (10A)

$1.49

$

In Stock, Qty 8

0

49

Honda 38540-ZC2-E31

SEE PART DETAILS - PRI; RELAY ASSY. (GFCI)

$415.99

$

In Stock, only 1 left!

0

50

Honda 32330-ZA1-631

RECEPTACLE (20A/125V) (MATSUSHITA)
(Superseded to 32330-Z03-C31)

$55.99

$

In Stock, only 1 left!

0

51

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

52

Honda 91406-671-000

CLIP, WIRE HARNESS

$21.99

$

Usually ships in 3-6 days

0

53

Honda 91406-ZB3-740

TUBE, CORD

$5.49

$

Usually ships in 3-6 days

0
