EB5000X K3 AT1 (EBPC) - Honda Generator, Made in China (SN: EBPC-1000001 - EBPC-1499999) IGNITION COIL (2) Parts Diagram

Generator, Made in China

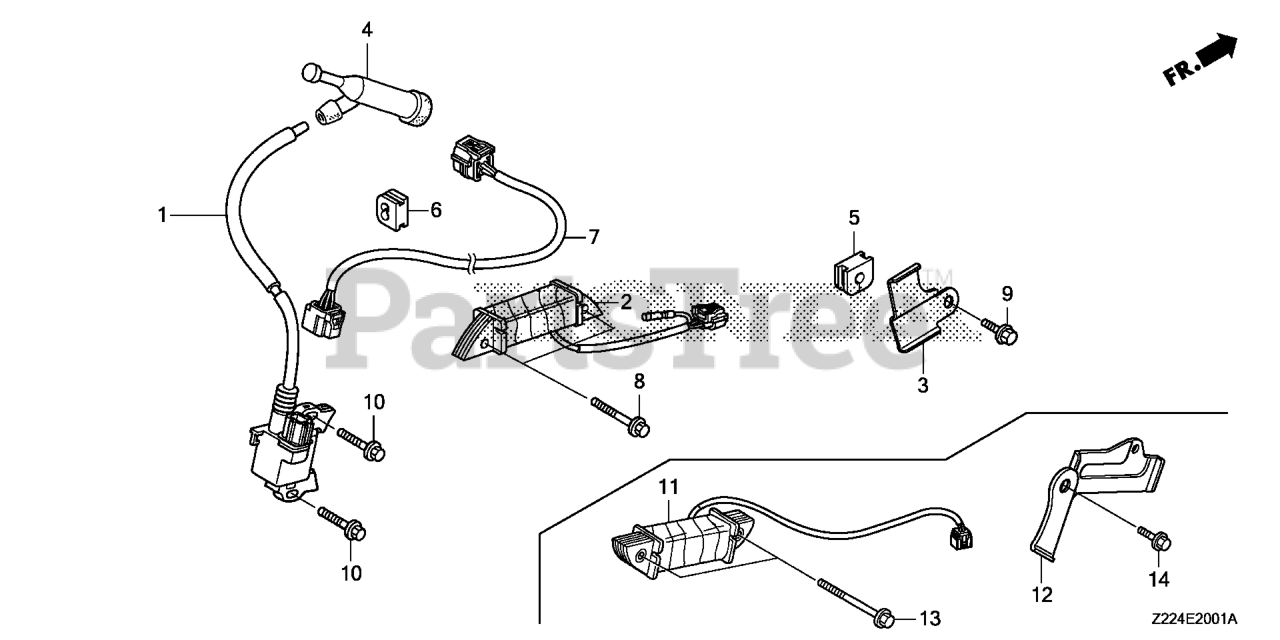

IGNITION COIL (2) Parts Diagram

  • Title
1

Honda 30500-Z5T-003

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$74.99

$

Usually ships in 3-6 days

0

1

Honda 30500-Z5T-004

COIL ASSY., IGNITION (IIDA)

$42.99

$

Usually ships in 3-6 days

0

2

Honda 30595-Z1C-D21

COIL ASSY., POWER

$63.99

$

Usually ships in 3-6 days

0

3

Honda 30596-Z5T-W00

BRACKET B, HARNESS

$54.99

$

Usually ships in 3-6 days

0

4

Honda 30700-Z1C-813

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (NGK Y-EZD)

$6.99

$

Usually ships in 3-6 days

0

5

Honda 31512-Z5T-W00

GROMMET, WIRE

$7.99

$

Usually ships in 3-6 days

0

6

Honda 31512-ZE2-000

GROMMET, WIRE (Honda Code 2026557).

$4.49

$

Usually ships in 3-6 days

0

7

Honda 32110-Z1C-D20

WIRE HARNESS ASSY., ENGINE

$75.99

$

Usually ships in 3-6 days

0

8

Honda 90012-888-000

BOLT, FLANGE (6X40) (Honda Code 0671529).

$4.99

$

Usually ships in 3-6 days

0

9

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

10

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

$3.99

$

In Stock, Qty 8

0
