EB5000X K3 AT1/A (EBPC) - Honda Generator, Made in China (SN: EBPC-1500001 - EBPC-9999999) RECOIL STARTER (3) Parts Diagram

Generator, Made in China

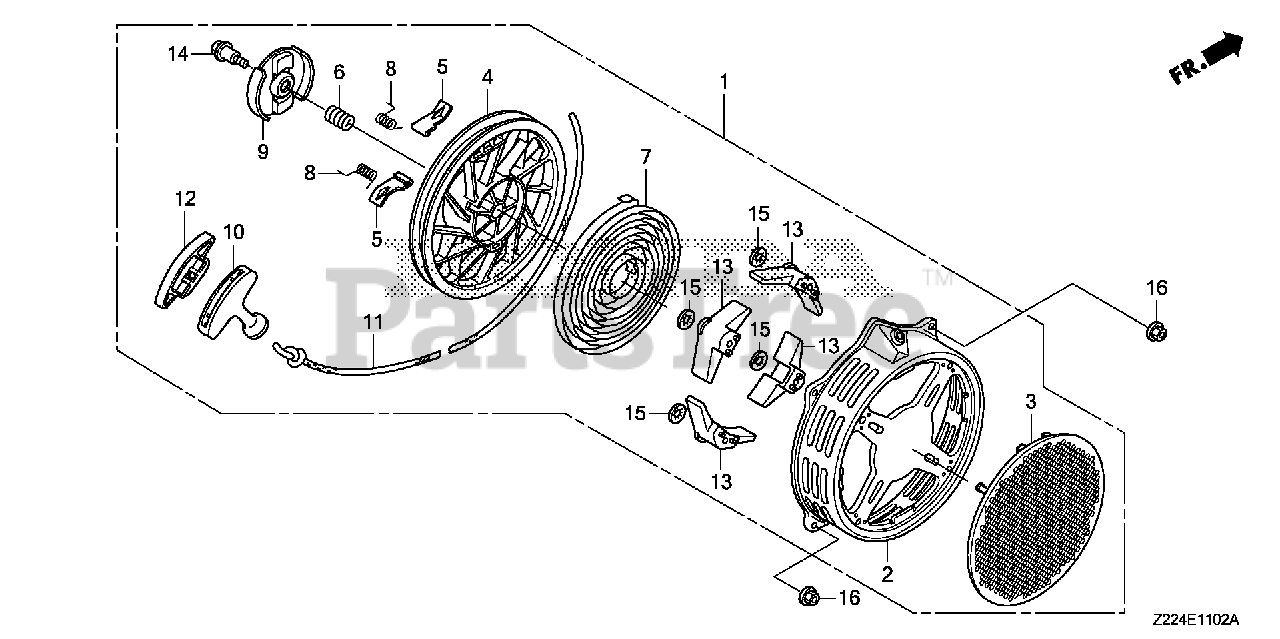

RECOIL STARTER (3) Parts Diagram

  • Title

1

Honda 28400-Z1C-306ZA

STARTER ASSY., RECOIL *NH1* (COO)(FOR U.S.A.) (BLACK)

$79.99

$

Usually ships in 3-6 days

0

2

Honda 28410-Z1C-D41ZB

CASE, RECOIL STARTER *NH1* (BLACK)

$43.99

$

Usually ships in 3-6 days

0

3

Honda 28411-Z5T-W01

COVER, RECOIL STARTER

$27.99

$

Usually ships in 3-6 days

0

4

Honda 28421-Z5T-W01

PULLEY, RECOIL STARTER

$27.99

$

Usually ships in 3-6 days

0

5

Honda 28422-ZE2-W01

RATCHET, STARTER (Honda Code 3678877).

$7.99

$

In Stock, only 1 left!

0

6

Honda 28441-ZE2-W01

SPRING, FRICTION (Honda Code 3678885).

$6.49

$

In Stock, Qty 10

0

7

Honda 28442-ZE2-W01

SPRING, STARTER RETURN (Honda Code 3678893).

$19.99

$

In Stock, only 2 left!

0

8

Honda 28443-ZE2-W01

SPRING, RATCHET (Honda Code 3678901).

$5.49

$

In Stock, Qty 12

0

9

Honda 28444-ZE2-W01

RETAINER, SPRING (Honda Code 3678919).

$14.99

$

Usually ships in 3-6 days

0

10

Honda 28461-Z5T-003

SEE PART DETAILS - PRI; GRIP, STARTER
(Superseded to 28461-Z5T-305)

$11.99

$

In Stock, Qty 14

0

11

Honda 28462-ZE3-W01

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (#6X64") (N/A: USE P/N 08560-ZG921-11) (Honda Code 3713344).

$15.99

$

In Stock, Qty 6

0

12

Honda 28463-Z5T-013

SEE PART DETAILS - PRI; GRIP, REINFORCEMENT

$3.49

$

In Stock, Qty 20+

0

13

Honda 28465-Z5T-W01

COVER, ROPE

$5.99

$

In Stock, only 4 left!

0

14

Honda 90004-ZE2-W01

SCREW, CENTER (Honda Code 3679024).

$4.49

$

In Stock, Qty 10

0

15

Honda 90201-Z5T-W01

NUT, PUSH

$8.99

$

Usually ships in 3-6 days

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
