EB5000X K3 AT1/A (EBPC) - Honda Generator, Made in China (SN: EBPC-1500001 - EBPC-9999999) CONTROL PANEL (4) Parts Diagram

Generator, Made in China

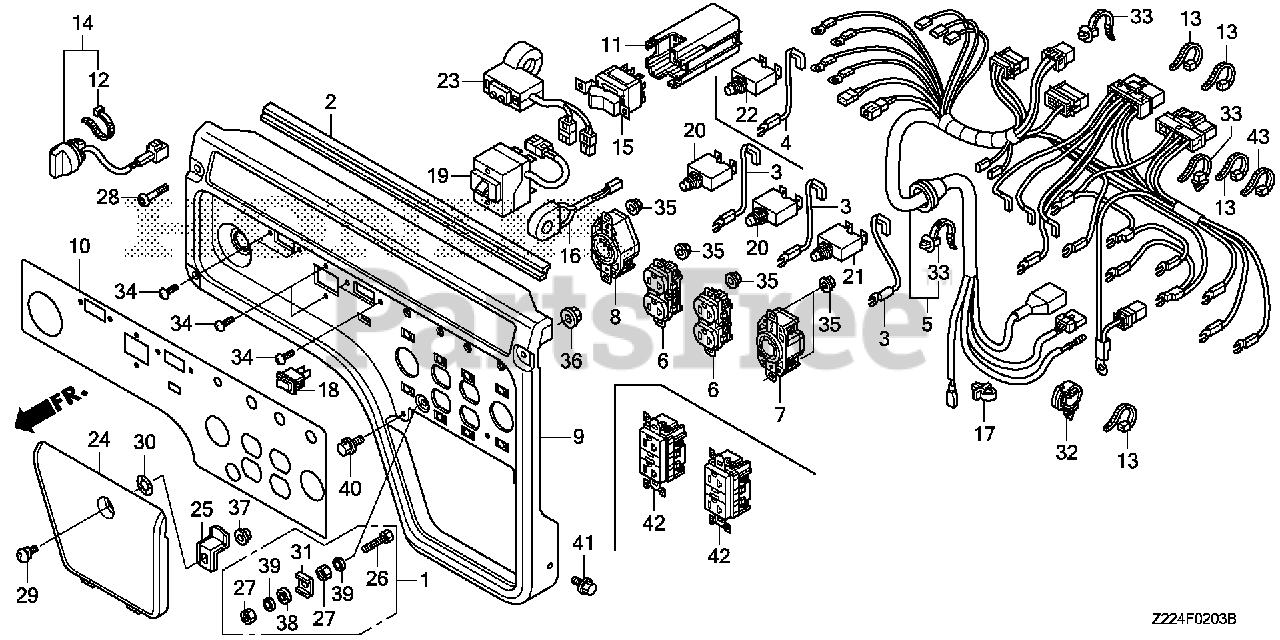

CONTROL PANEL (4) Parts Diagram

  • Title

1

Honda 31428-Z22-000

TERMINAL SET, GROUND

$9.49

$

In Stock, only 1 left!

0

2

Honda 31462-Z23-F10

RUBBER, CONTROL PANEL

$11.99

$

In Stock, only 1 left!

0

3

Honda 32101-Z23-F20

SUB-WIRE ASSY. (A)

$8.99

$

In Stock, only 1 left!

0

4

Honda 32101-Z23-F20

SUB-WIRE ASSY. (A)

$8.99

$

In Stock, only 1 left!

0

5

Honda 32150-Z23-D20

WIRE HARNESS ASSY., CONTROL (EB-A1)

$473.99

$

In Stock, only 1 left!

0

7

Honda 32334-Z22-A31

RECEPTACLE (30A-125/250V)

$116.99

$

In Stock, only 1 left!

0

8

Honda 32332-Z22-E31

RECEPTACLE (30A-125V)

$97.99

$

Usually ships in 3-6 days

0

9

Honda 32345-Z23-D20ZA

PANEL, CONTROL (EB-A1) *R280* (POWER RED)

$294.99

$

In Stock, only 1 left!

0

10

Honda 32366-Z23-D20

MARK, PANEL (EB-A1)

$96.99

$

In Stock, only 1 left!

0

11

Honda 32395-Z30-S32

CONNECTOR (12P)

$127.99

$

In Stock, only 1 left!

0

12

Honda 32902-892-003

BAND (Honda Code 0947457).

$4.99

$

In Stock, only 4 left!

0

13

Honda 32903-Z22-000

TIE, CABLE (C)

$2.49

$

In Stock, only 1 left!

0

14

Honda 35120-Z30-C41

SWITCH ASSY., ENGINE STOP

$35.99

$

In Stock, Qty 9

0

15

Honda 35320-Z23-F21

SWITCH ASSY., VOLT CHANGE

$122.99

$

In Stock, only 1 left!

0

16

Honda 35694-Z23-003

SENSOR ASSY. (CT)

$114.99

$

In Stock, only 1 left!

0

17

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE Use up to Engine SN 2056819.

$2.99

$

In Stock, only 1 left!

0

18

Honda 36214-Z11-A01

SWITCH, AUTO-THROTTLE (OTAX)

$27.99

$

Usually ships in 3-6 days

0

19

Honda 38220-Z22-G20

BREAKER, CIRCUIT (21A)

$353.99

$

In Stock, only 1 left!

0

20

Honda 38240-Z23-F20

PROTECTOR, CIRCUIT (20A)

$103.99

$

In Stock, only 1 left!

0

21

Honda 38241-Z23-F20

PROTECTOR, CIRCUIT (30A)

$29.99

$

In Stock, only 2 left!

0

22

Honda 38241-Z23-F20

PROTECTOR, CIRCUIT (30A)

$29.99

$

In Stock, only 2 left!

0

23

Honda 38540-ZC2-E31

SEE PART DETAILS - PRI; RELAY ASSY. (GFCI)

$415.99

$

In Stock, only 1 left!

0

24

Honda 50361-Z23-F10

COVER (LOWER)

$58.99

$

In Stock, only 1 left!

0

25

Honda 50362-Z23-F10

LOCK PLATE, COVER (LOWER)

$11.99

$

In Stock, only 1 left!

0

26

Honda 90111-Z22-000

BOLT, HEX. (6X28)

$3.99

$

In Stock, only 1 left!

0

27

Honda 90112-Z22-000

NUT, HEX. (6MM)

$1.49

$

In Stock, only 1 left!

0

28

Honda 90128-MEM-630

BOLT, SOCKET (8X22)

$2.99

$

In Stock, only 1 left!

0

29

Honda 90163-Z23-F10

BOLT, MAINTENANCE LID LOCK

$3.49

$

In Stock, only 3 left!

0

30

Honda 90444-397-000

WASHER, WAVE (12MM)

$6.49

$

In Stock, only 1 left!

0

31

Honda 90501-ZA7-640

RETAINER (6MM)

$4.49

$

In Stock, only 1 left!

0

32

Honda 90681-763-A01

CLIP, WIRE HARNESS

$11.99

$

In Stock, only 1 left!

0

33

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0

34

Honda 93500-04006-0G

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 7

0

35

Honda 94050-04000

NUT, FLANGE (4MM)

$1.99

$

In Stock, only 4 left!

0

36

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

37

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

38

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

39

Honda 94111-06000

SEE PART DETAILS - PRI; WASHER, SPRING (6MM)

$1.49

$

In Stock, only 1 left!

0

40

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, only 4 left!

0

41

Honda 95701-06010-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, only 1 left!

0

42

Honda 32330-Z23-G12

SEE PART DETAILS - PRI; RECEPTACLE (20A-125V) (GFCI)

$

$

Not available

43

Honda 32903-Z22-000

TIE, CABLE (C)

$2.49

$

In Stock, only 1 left!

0
