EB5000X K3 AT1/A (EBPC) - Honda Generator, Made in China (SN: EBPC-1500001 - EBPC-9999999) A.V.R. UNIT@CONTROL PANEL CASE Parts Diagram

Generator, Made in China

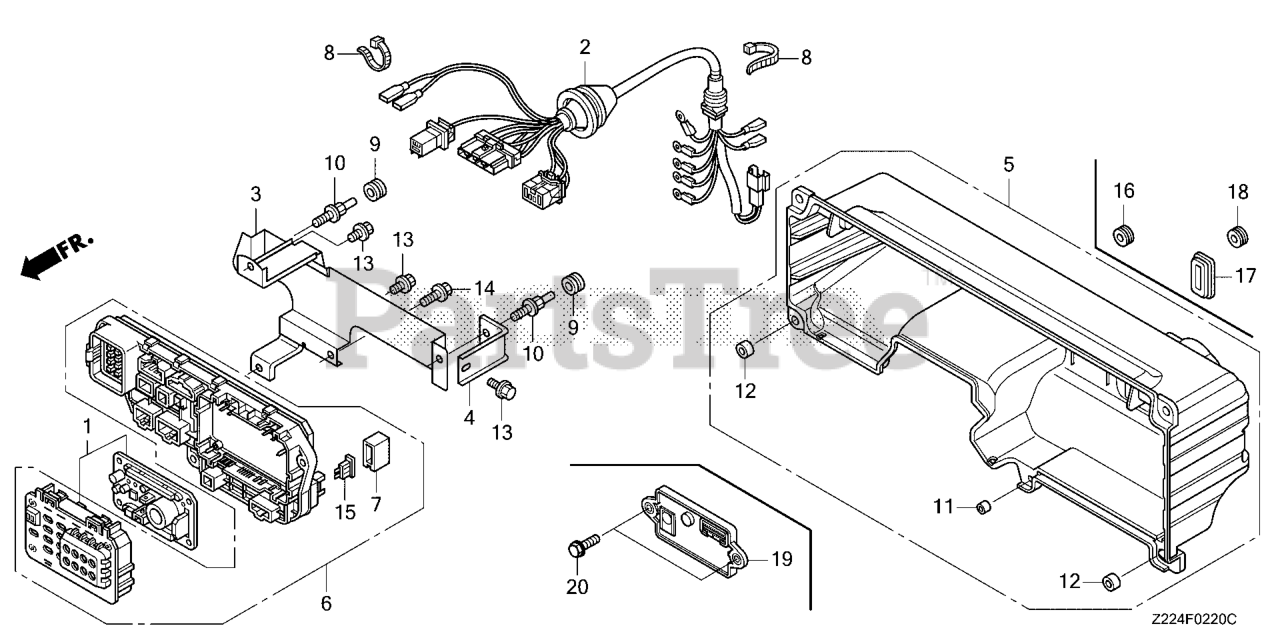

A.V.R. UNIT@CONTROL PANEL CASE Parts Diagram

  • Title

1

Honda 31720-Z22-F20

COVER ASSY., AUTOMATIC VOLTAGE REGULATOR

$422.99

$

Usually ships in 3-6 days

0

2

Honda 32158-Z23-G20

WIRE HARNESS ASSY., GENERATOR (EB-A)

$200.99

$

Usually ships in 3-6 days

0

3

Honda 32320-Z23-F10

BRACKET, JUNCTION BOX

$51.99

$

Usually ships in 3-6 days

0

4

Honda 32321-Z23-F10

PLATE, JUNCTION BOX

$11.99

$

Usually ships in 3-6 days

0

5

Honda 32356-Z23-F11

CASE, CONTROL PANEL

$156.99

$

Usually ships in 3-6 days

0

6

Honda 32370-Z23-F22

BOX ASSY., JUNCTION

$299.99

$

Usually ships in 3-6 days

0

7

Honda 32371-Z30-D62

COVER, FUSE

$4.99

$

Usually ships in 3-6 days

0

8

Honda 32903-Z22-000

TIE, CABLE (C)

$2.49

$

In Stock, only 1 left!

0

9

Honda 50220-943-000

GROMMET, SEAT LOCK LEVER

$

$

Not available

10

Honda 90101-Z23-F10

BOLT, FLANGE (6X18)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 91551-Z22-000

COLLAR, CONTROL CASE

$3.49

$

Usually ships in 3-6 days

0

12

Honda 91551-Z23-000

COLLAR, CONTROL CASE

$2.99

$

Usually ships in 3-6 days

0

13

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 13

0

14

Honda 96001-06014-00

BOLT, FLANGE (6X14)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 98200-32000

FUSE, BLADE (20A)

$1.99

$

Usually ships in 3-6 days

0
