EB5000X K1 AG/C (EA7) - Honda Generator, Made in Japan (SN: EA7-3180001 - EA7-3999999) EB CONTROL BOX Parts Diagram

Generator, Made in Japan

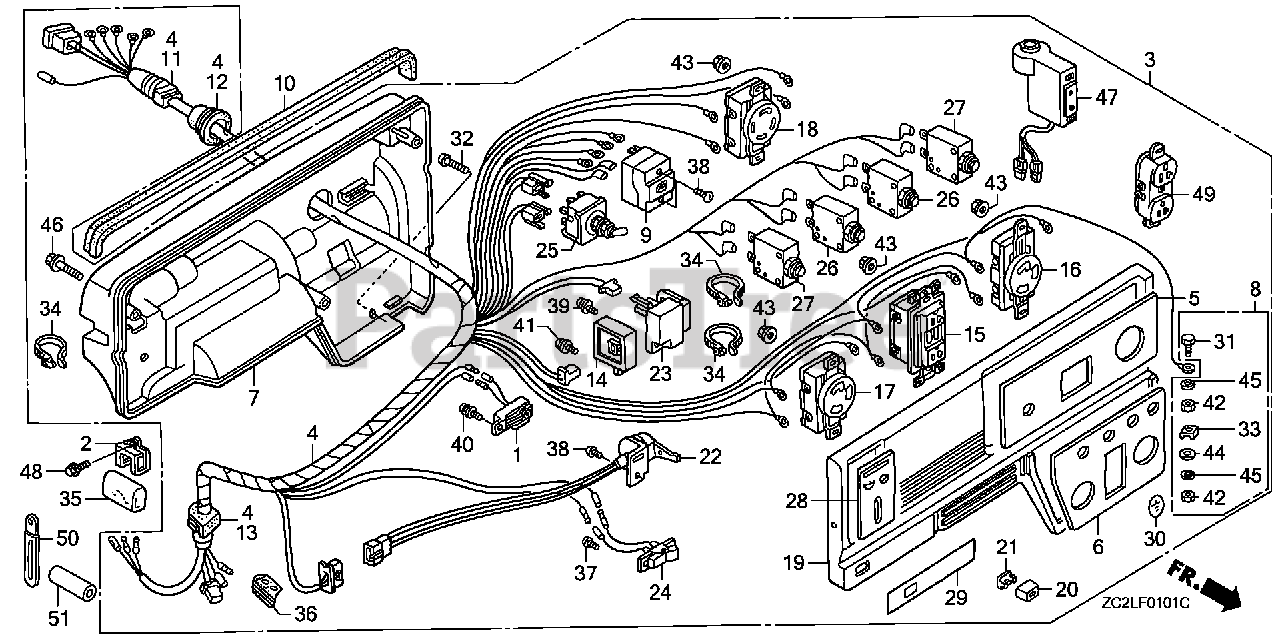

EB CONTROL BOX Parts Diagram

  • Title

3

Honda 31400-ZC2-E35ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use up to Frame SN 3183861.

$

$

Currently unavailable

3

Honda 31400-ZC2-E35ZB

BOX ASSY., CONTROL *R280* (POWER RED) (NOT AVAILABLE)

Note: Use from Frame SN 3183862.

$

$

Not available

4

Honda 31404-ZC2-E33

WIRE HARNESS ASSY. (NOT AVAILABLE)

$

$

Not available

5

Honda 31406-ZB4-E32

MARK, SWITCH PANEL

$

$

Not available

6

Honda 31408-ZC2-E32

MARK, A.C. OUT

$79.99

$

Usually ships in 3-6 days

0

7

Honda 31425-ZB4-010ZD

CASE, CONTROL *R280* (POWER RED)

$

$

Not available

8

Honda 31428-899-840

TERMINAL SET, GROUND

$25.99

$

Usually ships in 3-6 days

0

9

Honda 38220-ZC2-E30

BREAKER, CIRCUIT (19A)

$273.99

$

Usually ships in 3-6 days

0

10

Honda 31462-ZB4-000

RUBBER, CONTROL

$22.99

$

In Stock, only 1 left!

0

11

Honda 31481-ZB4-003

GROMMET, A.C. WIRE

$15.99

$

Usually ships in 3-6 days

0

12

Honda 31482-ZB4-003

GROMMET, MAIN WIRE

$18.99

$

Usually ships in 3-6 days

0

13

Honda 31483-ZB4-003

GROMMET, SWITCH WIRE

$13.99

$

Usually ships in 3-6 days

0

14

Honda 31720-ZD1-E31

DIODE ASSY.

$

$

Not available

16

Honda 32331-899-630

RECEPTACLE (20A/125V) (NOT AVAILABLE)

$40.99

$

Usually ships in 3-6 days

0

17

Honda 32332-880-710

RECEPTACLE (30A/125V)
(Superseded to 32332-ZB4-630)

$50.99

$

In Stock, only 1 left!

0

18

Honda 32334-ZA0-631

SEE PART DETAILS - PRI; RECEPTACLE (30A/125-250V)

$38.99

$

Usually ships in 3-6 days

0

19

Honda 32341-ZD1-E31ZB

PANEL, CONTROL *R280* (POWER RED)

$

$

Not available

20

Honda 32343-892-003

KNOB, PETCOCK LEVER

$14.99

$

Usually ships in 3-6 days

0

21

Honda 36106-892-003

BUSH, CONTROL KNOB

$7.49

$

Usually ships in 3-6 days

0

22

Honda 36110-ZB4-701

SEE PART DETAILS - SUP; SWITCH ASSY., ENGINE STOP
(Superseded to 36110-ZB4-702)

$36.99

$

Usually ships in 3-6 days

0

22

Honda 36110-ZB4-702

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

$36.99

$

Usually ships in 3-6 days

0

23

Honda 36210-ZB4-014

SEE PART DETAILS - PRI; THROTTLE UNIT, AUTO (SAWAFUJI)

$279.99

$

Usually ships in 3-6 days

0

24

Honda 36214-ZB4-013

SEE PART DETAILS - PRI; SWITCH, AUTO THROTTLE
(Superseded to 36214-ZB4-023)

$44.99

$

In Stock, only 2 left!

0

25

Honda 36221-899-630

SWITCH ASSY., VOLT CHANGE

$238.99

$

Usually ships in 3-6 days

0

26

Honda 38240-ZC2-E31

SEE PART DETAILS - SUP; PROTECTOR, CIRCUIT (20A)
(Superseded to 38240-ZC2-E32)

$104.99

$

In Stock, only 1 left!

0

26

Honda 38240-ZC2-E32

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A)

$104.99

$

In Stock, only 1 left!

0

27

Honda 38241-ZC2-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (30A)

$103.99

$

Usually ships in 3-6 days

0

28

Honda 87501-ZB4-E32

MARK, ENGINE SWITCH

$15.99

$

Usually ships in 3-6 days

0

29

Honda 87524-ZB4-E31

MARK, AUTO-THROTTLE

$9.49

$

Usually ships in 3-6 days

0

30

Honda 87534-892-640

MARK, GROUND

$2.99

$

In Stock, Qty 5

0

31

Honda 90011-899-840

BOLT, HEX. (6X28)

$4.99

$

Usually ships in 3-6 days

0

32

Honda 90101-692-000

SCREW, GLOVE BOX

$1.99

$

Usually ships in 3-6 days

0

33

Honda 90501-ZA7-640

RETAINER (6MM)

$4.49

$

In Stock, only 1 left!

0

34

Honda 90672-ZB4-003

TIE, CABLE (NATURAL 225X5.0)

$6.49

$

Usually ships in 3-6 days

0

36

Honda 91601-ZB4-003

GROMMET, TUBE

$4.49

$

Usually ships in 3-6 days

0

37

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, only 3 left!

0

38

Honda 93500-04006-0H

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 7

0

39

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.99

$

In Stock, Qty 13

0

41

Honda 93893-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12)

$1.99

$

Usually ships in 3-6 days

0

41

Honda 93893-04012-18

SEE PART DETAILS - SUP; SCREW-WASHER (4X12)
(Superseded to 93893-04012-08)

$1.99

$

Usually ships in 3-6 days

0

42

Honda 94001-06390-0S

NUT, HEX. (6MM)

$2.49

$

Usually ships in 3-6 days

0

43

Honda 94050-04000

NUT, FLANGE (4MM)

$1.99

$

In Stock, only 4 left!

0

44

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

45

Honda 94111-06800

WASHER, SPRING (6MM)

$1.99

$

Usually ships in 3-6 days

0

46

Honda 95701-06040-08

BOLT, FLANGE (6X40)

$2.99

$

Usually ships in 3-6 days

0

47

Honda 38540-ZC2-E31

RELAY ASSY. (GFCI)

$415.99

$

In Stock, only 1 left!

0

48

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

49

Honda 32330-ZA1-631

RECEPTACLE (20A/125V) (MATSUSHITA)
(Superseded to 32330-Z03-C31)

$55.99

$

In Stock, only 1 left!

0

50

Honda 91406-671-000

CLIP, WIRE HARNESS

$21.99

$

Usually ships in 3-6 days

0

51

Honda 91406-ZB3-740

TUBE, CORD

$5.49

$

Usually ships in 3-6 days

0
