EB5000X K1 AG/B (EA7) - Honda Generator, Made in Japan (SN: EA7-3113258 - EA7-3179999) EM/EB AIR CLEANER Parts Diagram

Generator, Made in Japan

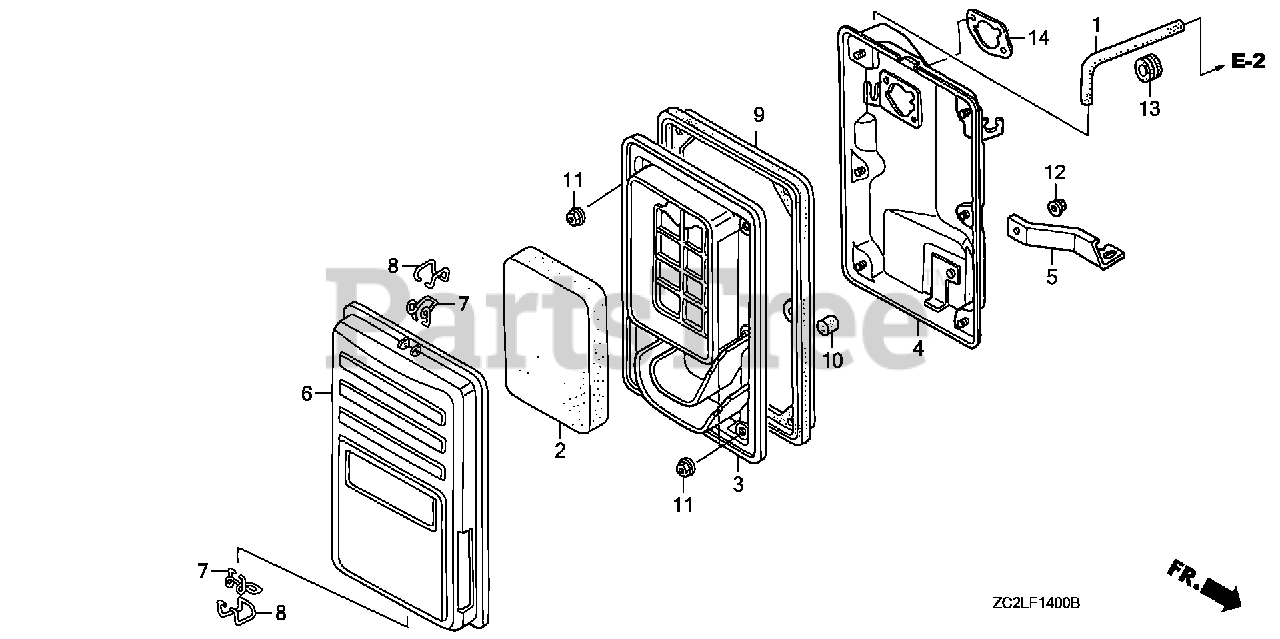

EM/EB AIR CLEANER Parts Diagram

  • Title
1

Honda 15721-ZB4-000

TUBE, BREATHER

$8.99

$

In Stock, Qty 11

0

2

Honda 17211-899-000

ELEMENT, AIR CLEANER

$9.49

$

In Stock, Qty 20+

0

3

Honda 17212-ZB4-003

SEPARATOR, AIR CLEANER

$82.99

$

Usually ships in 3-6 days

0

4

Honda 17220-ZB4-003

SEE PART DETAILS - SUP; HOUSING, AIR CLEANER
(Superseded to 17220-ZB4-013)

$107.99

$

Usually ships in 3-6 days

0

4

Honda 17220-ZB4-013

SEE PART DETAILS - PRI; HOUSING, AIR CLEANER

$107.99

$

Usually ships in 3-6 days

0

5

Honda 17222-ZC2-000

STAY, AIR CLEANER

$13.99

$

Usually ships in 3-6 days

0

6

Honda 17231-899-000

COVER, AIR CLEANER

$82.99

$

Usually ships in 3-6 days

0

7

Honda 17235-899-000

CLIP A, AIR CLEANER WIRE

$5.49

$

Usually ships in 3-6 days

0

8

Honda 17236-899-000

CLIP B, AIR CLEANER WIRE

$5.49

$

Usually ships in 3-6 days

0

9

Honda 17252-899-000

SEAL, AIR CLEANER

$28.99

$

In Stock, only 1 left!

0

10

Honda 17367-413-690

FILTER, DRAIN TUBE

$2.99

$

In Stock, only 1 left!

0

11

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0

12

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
