EB5000X A (EA7) - Honda Generator, Made in Japan (SN: EA7-3000001 - EA7-3100000) WHEEL (2-WHEELS) Parts Diagram

Generator, Made in Japan

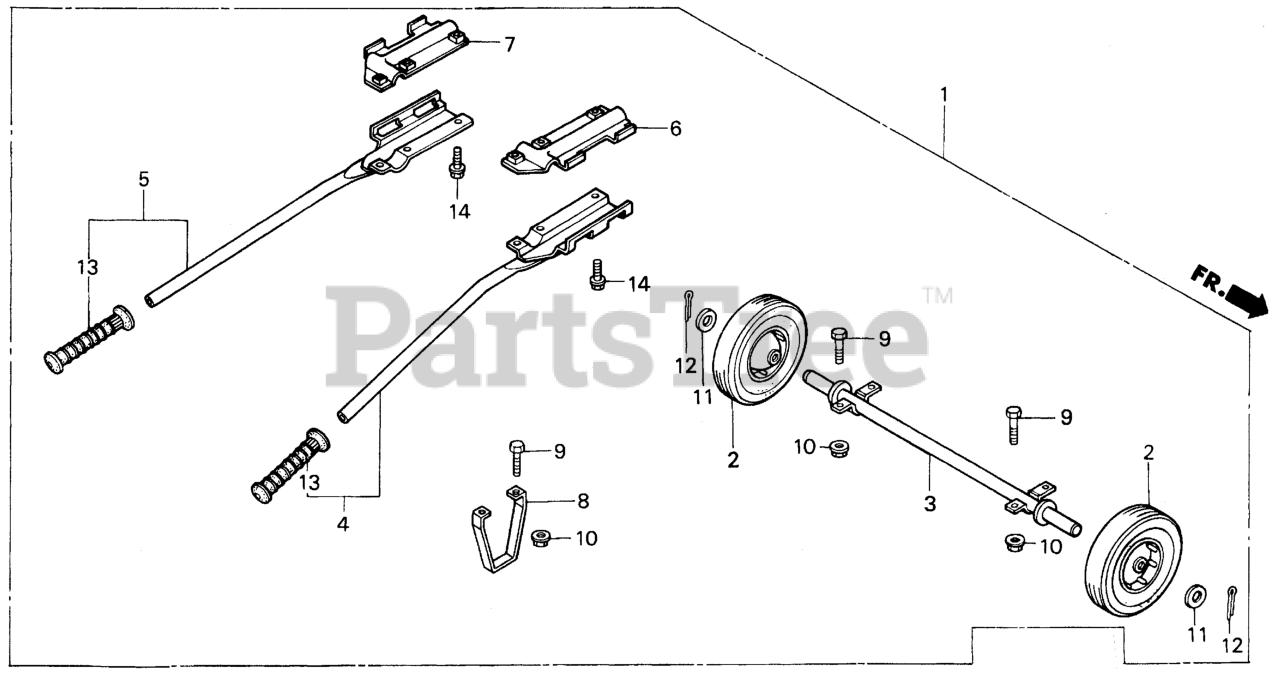

WHEEL (2-WHEELS) Parts Diagram

  • Title

1

Honda 06710-ZB4-800

WHEEL KIT (2-WHEELS)

Note: (Optional)

$309.99

$

Usually ships in 3-6 days

0

2

Honda 42710-899-801

WHEEL (GLEASON 10"X2.75"=254X70)

Note: (Optional)

$64.99

$

Usually ships in 3-6 days

0

3

Honda 42730-ZB4-800

SHAFT, WHEEL

Note: (Optional)

$155.99

$

Usually ships in 3-6 days

0

4

Honda 53110-ZB4-800

HANDLE, R. (LOWER)

Note: (Optional)

$162.99

$

Usually ships in 3-6 days

0

5

Honda 53111-ZB4-800

HANDLE, L. (LOWER)

Note: (Optional)

$198.99

$

Usually ships in 3-6 days

0

6

Honda 53112-ZB4-800

BRACKET, R. HANDLE (UPPER)

Note: (Optional)

$35.99

$

Usually ships in 3-6 days

0

7

Honda 53113-ZB4-800

BRACKET, L. HANDLE (UPPER)

Note: (Optional)

$35.99

$

Usually ships in 3-6 days

0

8

Honda 53135-899-930

STAND

Note: (Optional)

$37.99

$

Usually ships in 3-6 days

0

9

Honda 92101-08016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X16)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

11

Honda 94102-20000

WASHER, PLAIN (20MM)

Note: (Optional)

$1.49

$

In Stock, Qty 8

0

12

Honda 94201-40280

PIN, SPLIT (4.0X28)

Note: (Optional)

$1.49

$

In Stock, Qty 5

0

12

Honda 94201-40300

SEE PART DETAILS - PRI; PIN, COTTER (4.0X30)

Note: (Optional)

$1.49

$

In Stock, Qty 5

0

13

Honda 95011-14100

GRIP D, R. HANDLE (BOTH SIDES)

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

14

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

Note: (Optional)

$2.49

$

In Stock, Qty 20+

0
