EB5000X A (EA7) - Honda Generator, Made in Japan (SN: EA7-3000001 - EA7-3100000) RECOIL STARTER Parts Diagram

Generator, Made in Japan

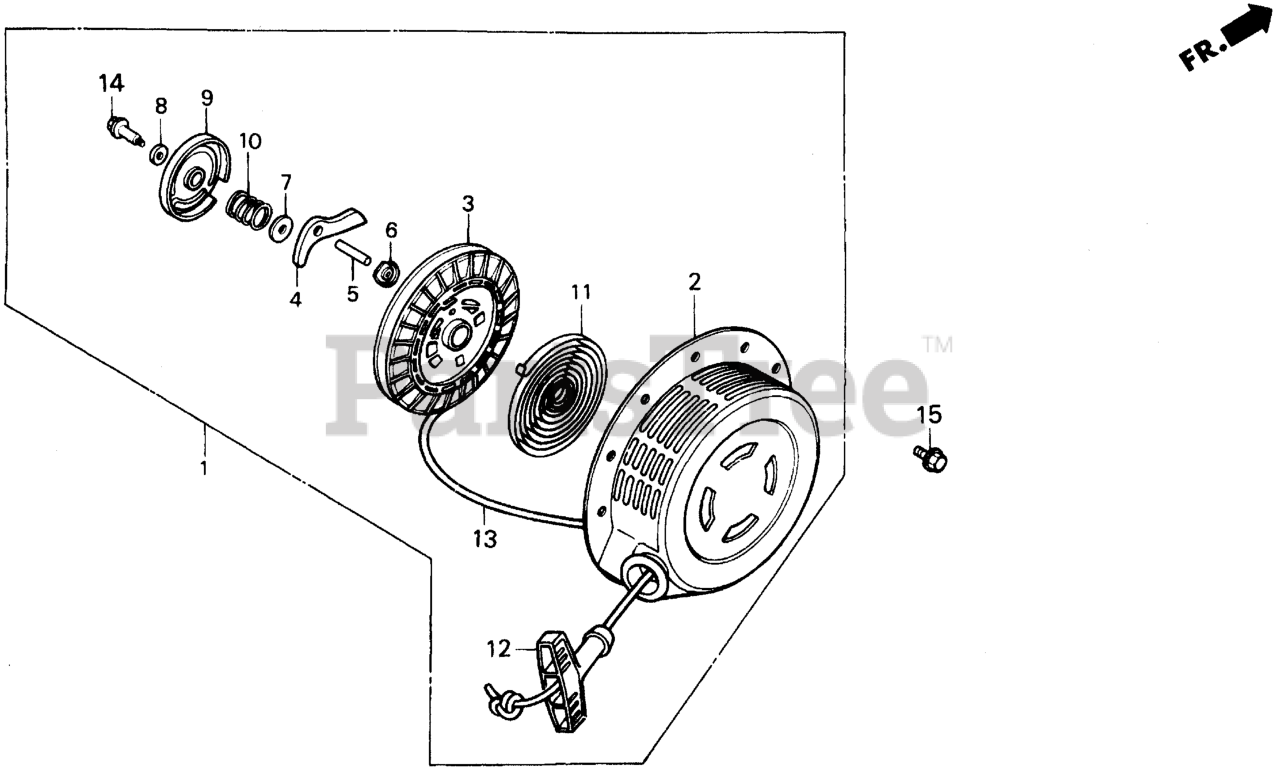

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE8-305

STARTER ASSY,RECO

$105.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE8-811ZA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R8* (BRIGHT RED) (Honda Code 3577582).

$

$

Not available

3

Honda 28420-ZE8-812

SEE PART DETAILS - PRI; REEL, STARTER (Honda Code 4594271).

$60.99

$

In Stock, only 2 left!

0

4

Honda 28422-ZE8-811

SEE PART DETAILS - PRI; RATCHET, STARTER (Honda Code 2243921).

$

$

Not available

5

Honda 28423-ZE1-711

SHAFT, RATCHET (Honda Code 1950815).

$9.99

$

Usually ships in 3-6 days

0

6

Honda 28424-ZE1-712

SEE PART DETAILS - PRI; PLATE, GUIDE (Honda Code 4590527).

$5.49

$

Usually ships in 3-6 days

0

7

Honda 28431-ZE1-711

PLATE A, FRICTION (Honda Code 1950823).

$

$

Not available

8

Honda 28432-ZG0-003

SEE PART DETAILS - PRI; PLATE B, FRICTION (Honda Code 1795459).

$2.99

$

Usually ships in 3-6 days

0

9

Honda 28434-ZE1-711

COVER, REEL STARTER (Honda Code 1950831).

$

$

Not available

10

Honda 28441-ZE1-711

SEE PART DETAILS - SUP; SPRING, FRICTION

$3.99

$

Usually ships in 3-6 days

0

11

Honda 28442-ZE1-713

SEE PART DETAILS - PRI; SPRING, RETURN (Honda Code 4617403).

$22.99

$

In Stock, only 1 left!

0

12

Honda 28461-889-631

SEE PART DETAILS - PRI; GRIP, STARTER (Honda Code 1956606).

$11.99

$

In Stock, Qty 14

0

13

Honda 28462-ZE8-811

SEE PART DETAILS - SUP; ROPE, STARTER (#6X64") (Honda Code 2106433). (N/A: USE ALT P/N 08560-ZG921-11)

$

$

Currently unavailable

14

Honda 90003-ZG0-003

BOLT, REEL COVER (Honda Code 1795715).

$

$

Not available

15

Honda 90011-ZG0-000

BOLT, FLANGE (6X8) (Honda Code 1795723).
(Superseded to 95701-06008-00)

Note: Use up to Engine SN 1166404.

$4.49

$

In Stock, Qty 20+

0

15

Honda 95701-06008-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X8) (Honda Code 2581353).

Note: Use from Engine SN 1166405.

$4.49

$

In Stock, Qty 20+

0
