EB5000X A (EA7) - Honda Generator, Made in Japan (SN: EA7-3000001 - EA7-3100000) CONTROL BOX Parts Diagram

Generator, Made in Japan

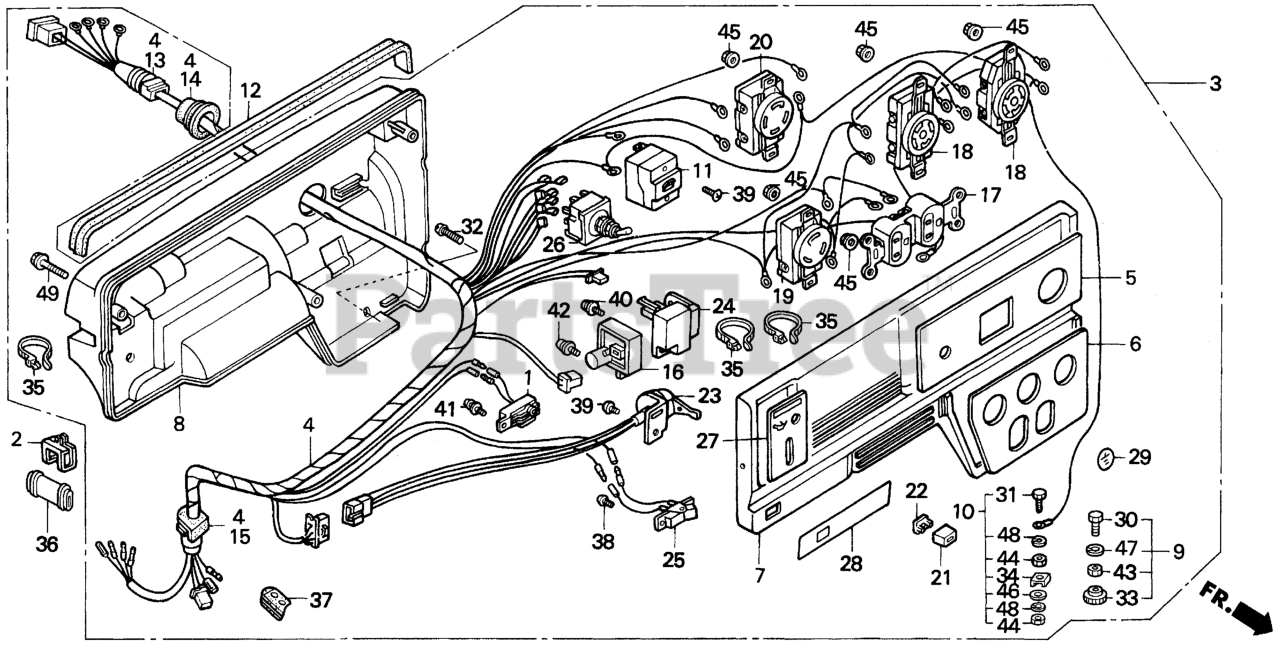

CONTROL BOX Parts Diagram

  • Title

1

Honda 15520-ZB2-003

ALERT UNIT, OIL (NOT AVAILABLE)

Note: Use from Frame SN 3022921.

$

$

Not available

1

Honda 15520-ZC2-003

ALERT UNIT, OIL

Note: Use up to Frame SN 3022920.

$

$

Not available

2

Honda 30561-ZB4-000

CLIP, WIRE

$7.49

$

Usually ships in 3-6 days

0

3

Honda 31400-ZC2-831H

BOX ASSY., CONTROL *R8* (EB-A) (BRIGHT RED)

$

$

Currently unavailable

3

Honda 31400-ZC2-832ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED) (NOT AVAILABLE)

Note: Use up to Frame SN 3022920.

$

$

Currently unavailable

3

Honda 31400-ZC2-833ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use from Frame SN 3022921.

$

$

Not available

4

Honda 31404-ZC2-831

WIRE HARNESS ASSY. (EB-A)

$

$

Currently unavailable

4

Honda 31404-ZC2-832

WIRE HARNESS ASSY. (EB-A)

Note: Use up to Frame SN 3022920.

$

$

Not available

4

Honda 31404-ZC2-833

WIRE HARNESS ASSY. (EB-A)

Note: Use from Frame SN 3022921.

$

$

Currently unavailable

5

Honda 31406-ZB4-830

MARK, SWITCH PANEL (EB-A)

Note: Use up to Frame SN 3006073.

$

$

Currently unavailable

5

Honda 31406-ZC2-831

MARK, SWITCH PANEL (EB-A)

Note: Use from Frame SN 3006074.

$

$

Not available

6

Honda 31408-ZC2-830

MARK, A.C. OUT (EB-A)

Note: Use up to Frame SN 3006073.

$

$

Currently unavailable

6

Honda 31408-ZC2-831

MARK, A.C. OUT (EB-A)

Note: Use from Frame SN 3006074.

$

$

Not available

7

Honda 31420-ZB4-830H

PANEL, CONTROL *R8* (EB-A) (BRIGHT RED)

Note: Use up to Frame SN 3003621.

$

$

Currently unavailable

7

Honda 31420-ZB4-831ZA

PANEL, CONTROL *R8* (EB-A) (BRIGHT RED) (NOT AVAILABLE)

Note: Use from Frame SN 3003622.

$

$

Not available

8

Honda 31425-ZB4-010ZA

SEE PART DETAILS - SUP; CASE, CONTROL *R8* (BRIGHT RED)
(Superseded to 31425-ZB4-010ZD)

$

$

Not available

9

Honda 31428-ZB4-013

TERMINAL SET, GROUND

Note: Use up to Frame SN 3022920.

$12.99

$

Usually ships in 3-6 days

0

10

Honda 31428-899-840

TERMINAL SET, GROUND

Note: Use from Frame SN 3022921.

$25.99

$

Usually ships in 3-6 days

0

11

Honda 31430-ZC2-630

BREAKER, CIRCUIT (19A)

$342.99

$

Usually ships in 3-6 days

0

12

Honda 31462-ZB4-000

RUBBER, CONTROL

$22.99

$

In Stock, only 1 left!

0

13

Honda 31481-ZB4-003

GROMMET, A.C. WIRE

$15.99

$

Usually ships in 3-6 days

0

14

Honda 31482-ZB4-003

GROMMET, MAIN WIRE

$18.99

$

Usually ships in 3-6 days

0

15

Honda 31483-ZB4-003

SEE PART DETAILS - PRI; GROMMET, SWITCH WIRE

$13.99

$

Usually ships in 3-6 days

0

16

Honda 31710-ZB4-731

DIODE ASSY.

$88.99

$

Usually ships in 3-6 days

0

17

Honda 32330-899-631

RECEPTACLE (20A/125V) (MATSUSHITA)

$76.99

$

Usually ships in 3-6 days

0

18

Honda 32331-899-630

RECEPTACLE (20A/125V) (NOT AVAILABLE)

$40.99

$

Usually ships in 3-6 days

0

19

Honda 32332-ZB4-630

SEE PART DETAILS - SUP; RECEPTACLE (30A/125V)

$50.99

$

In Stock, only 1 left!

0

19

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

Note: Use up to Frame SN 3006073.

$50.99

$

In Stock, only 1 left!

0

20

Honda 32334-ZA0-630

SEE PART DETAILS - SUP; RECEPTACLE (4-PRONG) (30A/125-250V)
(Superseded to 32334-ZA0-631)

Note: Use up to Frame SN 3006073.

$38.99

$

Usually ships in 3-6 days

0

20

Honda 32334-ZA0-631

SEE PART DETAILS - PRI; RECEPTACLE (30A/125-250V)

$38.99

$

Usually ships in 3-6 days

0

21

Honda 32343-892-003

SEE PART DETAILS - PRI; KNOB, PETCOCK LEVER

$14.99

$

Usually ships in 3-6 days

0

22

Honda 36106-892-003

BUSH, CONTROL KNOB

$7.49

$

Usually ships in 3-6 days

0

23

Honda 36110-ZB4-702

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

$36.99

$

Usually ships in 3-6 days

0

24

Honda 36210-ZB4-014

SEE PART DETAILS - PRI; THROTTLE UNIT, AUTO (SAWAFUJI)

$279.99

$

Usually ships in 3-6 days

0

25

Honda 36214-ZB4-013

SEE PART DETAILS - PRI; SWITCH, AUTO THROTTLE
(Superseded to 36214-ZB4-023)

$44.99

$

In Stock, only 2 left!

0

25

Honda 36214-ZB4-023

SWITCH, AUTO THROTTLE

$44.99

$

In Stock, only 2 left!

0

26

Honda 36221-899-630

SWITCH ASSY., VOLT CHANGE

$238.99

$

Usually ships in 3-6 days

0

27

Honda 87501-ZB4-830

MARK, ENGINE SWITCH

$

$

Currently unavailable

28

Honda 87524-ZB4-830

MARK, AUTO-THROTTLE (EB-A)

$

$

Not available

29

Honda 87534-892-640

SEE PART DETAILS - PRI; MARK, GROUND

$2.99

$

In Stock, Qty 5

0

30

Honda 90011-ZB4-000

BOLT, HEX. (6X22)

Note: Use up to Frame SN 3022920.

$5.49

$

Usually ships in 3-6 days

0

31

Honda 90011-899-840

BOLT, HEX. (6X28)

Note: Use from Frame SN 3022921.

$4.99

$

Usually ships in 3-6 days

0

32

Honda 90101-692-000

SCREW, GLOVE BOX

Note: Use from Frame SN 3003622.

$1.99

$

Usually ships in 3-6 days

0

33

Honda 90381-812-710

NUT, SPECIAL (6MM)

Note: Use up to Frame SN 3022920.

$2.99

$

In Stock, only 1 left!

0

34

Honda 90501-ZA7-640

RETAINER (6MM)

Note: Use from Frame SN 3022921.

$4.49

$

In Stock, only 1 left!

0

35

Honda 90672-ZB4-003

TIE, CABLE (NATURAL 225X5.0)

$6.49

$

Usually ships in 3-6 days

0

36

Honda 91406-ZB4-000

TUBE, CORD

$12.99

$

Usually ships in 3-6 days

0

37

Honda 91601-ZB4-003

GROMMET, TUBE

$4.49

$

Usually ships in 3-6 days

0

38

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

$1.49

$

In Stock, only 3 left!

0

39

Honda 93500-04006-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X6) (Honda Code 0285627).

$1.49

$

In Stock, Qty 7

0

40

Honda 93892-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12) (Honda Code 0368621).

$1.99

$

In Stock, Qty 13

0

41

Honda 93893-04010-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X10)

$1.99

$

In Stock, Qty 6

0

42

Honda 93893-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12) Use up to Engine SN 2056819.

$1.99

$

Usually ships in 3-6 days

0

42

Honda 93893-04012-18

SEE PART DETAILS - SUP; SCREW-WASHER (4X12) Use up to Engine SN 2056819.
(Superseded to 93893-04012-08)

$1.99

$

Usually ships in 3-6 days

0

43

Honda 94001-06390-0S

NUT, HEX. (6MM)

Note: Use up to Frame SN 3022920.

$2.49

$

Usually ships in 3-6 days

0

44

Honda 94001-06390-0S

NUT, HEX. (6MM)

Note: Use from Frame SN 3022921.

$2.49

$

Usually ships in 3-6 days

0

45

Honda 94050-04000

NUT, FLANGE (4MM)

$1.99

$

In Stock, only 4 left!

0

46

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

Note: Use from Frame SN 3022921.

$0.99

$

In Stock, Qty 20+

0

47

Honda 94111-06800

WASHER, SPRING (6MM) (Honda Code 0258210).

Note: Use up to Frame SN 3022920.

$1.99

$

Usually ships in 3-6 days

0

48

Honda 94111-06800

WASHER, SPRING (6MM) (Honda Code 0258210).

Note: Use from Frame SN 3022921.

$1.99

$

Usually ships in 3-6 days

0

49

Honda 95701-06040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40) (Honda Code 2105872).

$2.99

$

Usually ships in 3-6 days

0
