EB5000i A (EALJ) - Honda Generator, Made in Japan (SN: EALJ-1000001 - EALJ-9999999) RECOIL STARTER Parts Diagram

Generator, Made in Japan

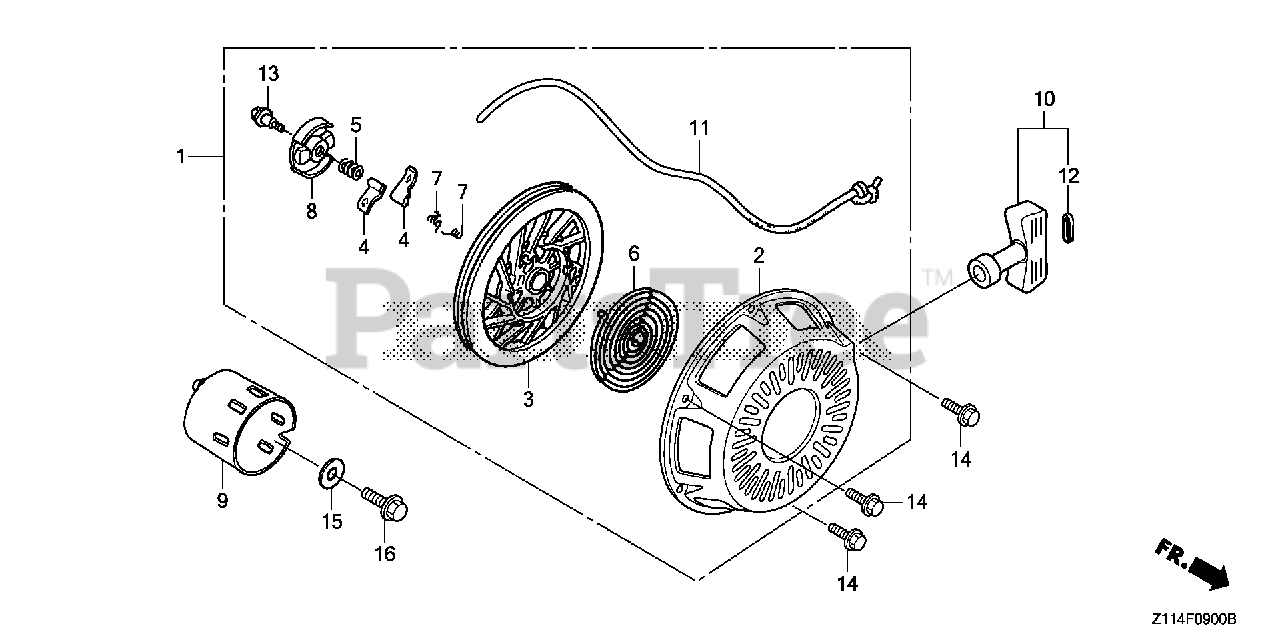

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-Z11-003

STARTER ASSY., RECOIL

$37.99

$

Usually ships in 3-6 days

0

2

Honda 28410-Z11-003

CASE, RECOIL STARTER

$54.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZE3-W01

PULLEY, RECOIL STARTER (Honda Code 3713328).

$44.99

$

In Stock, only 1 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER (Honda Code 3678877).

$7.49

$

Usually ships in 3-6 days

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION (Honda Code 3678885).

$6.49

$

In Stock, Qty 10

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN (Honda Code 3678893).

$18.99

$

In Stock, only 2 left!

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET (Honda Code 3678901).

$5.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING (Honda Code 3678919).

$14.99

$

Usually ships in 3-6 days

0

9

Honda 28451-ZE3-W01

PULLEY, STARTER

$33.99

$

In Stock, only 1 left!

0

10

Honda 28460-Z11-013

GRIP ASSY., STARTER

$8.49

$

Usually ships in 3-6 days

0

11

Honda 28462-ZK3-003

ROPE, RECOIL STARTER

$9.49

$

In Stock, Qty 10

0

12

Honda 28469-ZE2-W01

GRIP, REINFORCEMENT (Honda Code 3678976).

$6.99

$

In Stock, only 1 left!

0

13

Honda 90004-ZE2-W01

SCREW, CENTER (Honda Code 3679024).

$4.49

$

In Stock, Qty 10

0

14

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

15

Honda 90409-952-000

WASHER (10MM)

$2.99

$

In Stock, only 2 left!

0

16

Honda 95701-10025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X25)

$2.99

$

In Stock, Qty 7

0
