EB5000i A (EALJ) - Honda Generator, Made in Japan (SN: EALJ-1000001 - EALJ-9999999) CONTROL PANEL (EB5000I/EB7000I) (1) Parts Diagram

Generator, Made in Japan

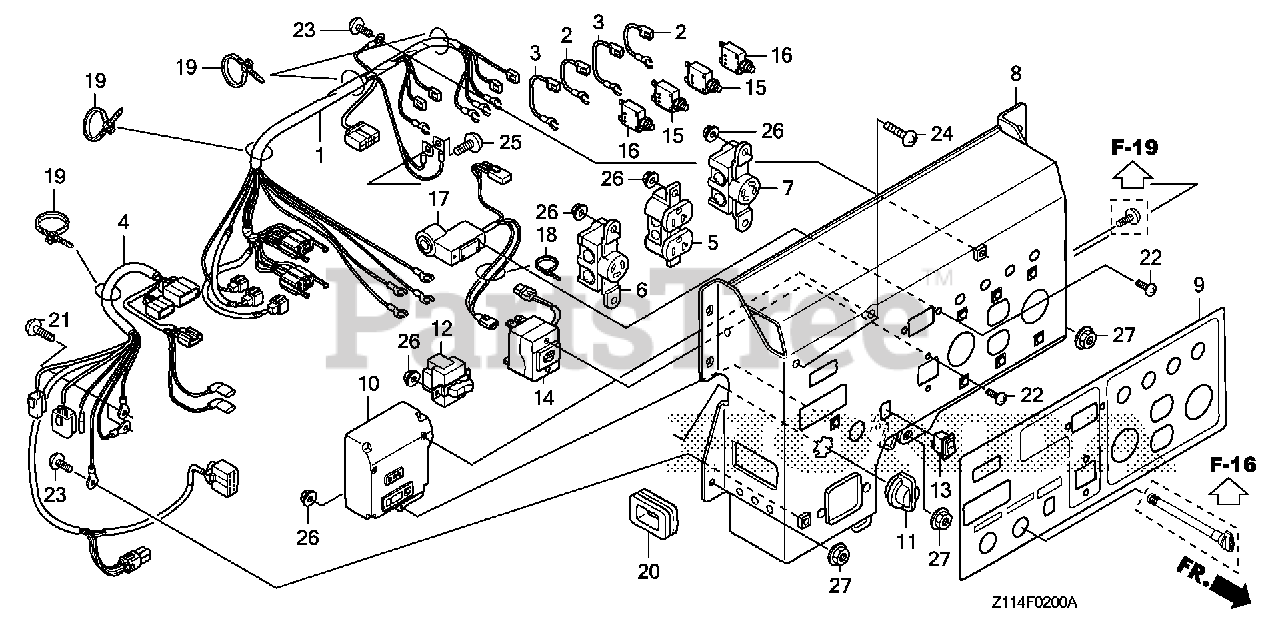

CONTROL PANEL (EB5000I/EB7000I) (1) Parts Diagram

  • Title

1

Honda 32100-Z11-E32

WIRE HARNESS ASSY., MAIN

$

$

Not available

2

Honda 32101-Z11-A30

SUB-WIRE ASSY. (A)

$5.99

$

Usually ships in 3-6 days

0

3

Honda 32108-Z11-A30

SUB-WIRE ASSY. (D)

$5.99

$

Usually ships in 3-6 days

0

4

Honda 32150-Z11-E30

WIRE HARNESS ASSY., CONTROL

Note: Use up to Frame SN 1000659.

$85.99

$

Usually ships in 3-6 days

0

4

Honda 32150-Z11-E32

WIRE HARNESS ASSY., CONTROL

Note: Use from Frame SN 1000660.

$101.99

$

Usually ships in 3-6 days

0

5

Honda 32330-899-631

RECEPTACLE (20A/125V) (MATSUSHITA)

$70.99

$

Usually ships in 3-6 days

0

6

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$46.99

$

In Stock, only 1 left!

0

7

Honda 32334-ZA0-631

SEE PART DETAILS - PRI; RECEPTACLE (30A/125-250V)

$

$

Not available

8

Honda 32345-Z11-E31

PANEL, CONTROL (EB-A)

$138.99

$

Usually ships in 3-6 days

0

9

Honda 32366-Z11-E32

MARK, PANEL (EB-A)

$133.99

$

Usually ships in 3-6 days

0

10

Honda 34110-Z11-E03

SEE PART DETAILS - PRI; CONTROL UNIT ASSY., GENERATOR

$754.99

$

Usually ships in 3-6 days

0

11

Honda 35120-Z11-E01

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

$18.99

$

Usually ships in 3-6 days

0

12

Honda 35320-Z11-A01

SWITCH ASSY., VOLT CHANGE

$114.99

$

Usually ships in 3-6 days

0

13

Honda 36214-ZS9-A01

SEE PART DETAILS - PRI; SWITCH, AUTO-THROTTLE

$23.99

$

In Stock, only 1 left!

0

14

Honda 38220-ZC2-E30

BREAKER, CIRCUIT (19A)

$239.99

$

Usually ships in 3-6 days

0

15

Honda 38240-Z11-A32

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A) (WHITE)(TYCO)

$39.99

$

In Stock, only 1 left!

0

16

Honda 38241-Z11-A32

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (30A) (WHITE)

$39.99

$

Usually ships in 3-6 days

0

17

Honda 38540-ZC2-E31

SEE PART DETAILS - PRI; RELAY ASSY. (GFCI)

$381.99

$

In Stock, only 1 left!

0

18

Honda 90650-KV6-003

BAND, WIRE (95MM)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 90672-SB2-003

STRAP, CABLE (105MM) *NH1* (Honda Code 1685536). (BLACK)

$7.49

$

Usually ships in 3-6 days

0

20

Honda 91654-Z11-000

GROMMET, CONTROL HARNESS

$5.99

$

Usually ships in 3-6 days

0

21

Honda 93500-03008-3J

SCREW, PAN (3X8)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 93500-04006-0G

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 6

0

23

Honda 93500-05008-3J

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 93500-05012-0G

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 93500-06008-3J

SCREW, PAN (6X8)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 94050-04000

NUT, FLANGE (4MM)

$1.99

$

In Stock, only 1 left!

0

27

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
