EB4000 A (GE400) - Honda Generator, Made in Japan (SN: GE400-1000001 - GE400-9999999) CONTROL BOX (EB) Parts Diagram

Generator, Made in Japan

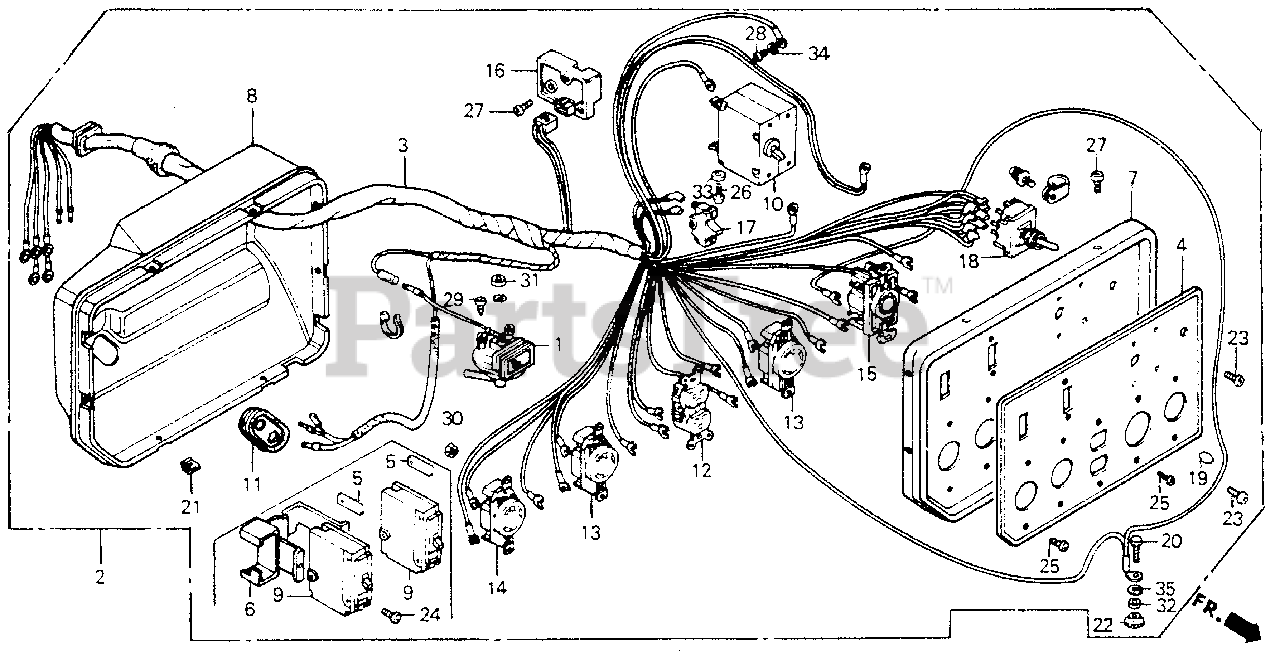

CONTROL BOX (EB) Parts Diagram

  • Title

1

Honda 15520-898-003

SWITCH ASSY., UNIT

$117.99

$

Usually ships in 3-6 days

0

2

Honda 31400-ZA1-831H

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use up to Frame SN 1042190.

$

$

Not available

2

Honda 31400-ZA1-832H

BOX ASSY., CONTROL *R8* (BRIGHT RED)

Note: Use from Frame SN 1042191.

$

$

Not available

3

Honda 31404-ZA1-831

WIRE HARNESS ASSY. (NOT AVAILABLE)

Note: Use up to Frame SN 1042190.

$

$

Currently unavailable

3

Honda 31404-ZA1-832

WIRE HARNESS ASSY. (NOT AVAILABLE)

Note: Use from Frame SN 1042191.

$

$

Currently unavailable

4

Honda 31406-ZA1-831

MARK, SWITCH PANEL (NOT AVAILABLE)

Note: Use from Frame SN 1042191.

$

$

Currently unavailable

4

Honda 31406-899-830

MARK, SWITCH PANEL (NOT AVAILABLE)

Note: Use up to Frame SN 1042190.

$

$

Currently unavailable

5

Honda 31414-880-000

TERMINAL, BREAKER

Note: Use up to Frame SN 1042190.

$20.99

$

Usually ships in 3-6 days

0

6

Honda 31415-899-630

SUPPORT, BREAKER

Note: Use up to Frame SN 1042190.

$

$

Not available

7

Honda 31420-899-830H

PANEL, CONTROL *R8* (BRIGHT RED)

Note: Use up to Frame SN 1042190.

$

$

Currently unavailable

7

Honda 31420-899-831ZA

PANEL, CONTROL

Note: Use from Frame SN 1042191.

$

$

Not available

8

Honda 31425-899-800

CASE, CONTROL

$

$

Not available

9

Honda 31430-897-000

BREAKER, CIRCUIT (17A)

Note: Use up to Frame SN 1042190.

$

$

Not available

10

Honda 31435-ZA1-630

BREAKER, CIRCUIT (17A) (NOT AVAILABLE)

Note: Use from Frame SN 1042191.

$

$

Currently unavailable

11

Honda 31473-899-800

GROMMET, UNIT SWITCH

$

$

Not available

12

Honda 32330-Z07-C30

SEE PART DETAILS - PRI; RECEPTACLE ASSY. (125V-20A)

$63.99

$

In Stock, only 3 left!

0

12

Honda 32330-899-630

SEE PART DETAILS - SUP; RECEPTACLE (20A/125V)
(Superseded to 32330-Z07-C30)

$63.99

$

In Stock, only 3 left!

0

13

Honda 32331-899-630

RECEPTACLE (20A-125V)

$40.99

$

Usually ships in 3-6 days

0

14

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$50.99

$

In Stock, only 1 left!

0

15

Honda 32332-899-630

RECEPTACLE (20A/125-250V)

$

$

Not available

16

Honda 36210-898-003

CONTROL UNIT, IDLE

$

$

Not available

17

Honda 36215-898-000

SWITCH ASSY., IDLE CONTROL (NOT AVAILABLE)

$

$

Not available

18

Honda 36221-899-630

SWITCH ASSY., VOLT CHANGE

$238.99

$

Usually ships in 3-6 days

0

19

Honda 87534-892-640

SEE PART DETAILS - PRI; MARK, GROUND

$2.99

$

In Stock, Qty 5

0

20

Honda 90011-899-000

BOLT, HEX. (6X18)

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90320-692-000

NUT, SPRING (5MM)

$9.99

$

Usually ships in 3-6 days

0

22

Honda 90381-812-710

NUT, SPECIAL (6MM)

$2.99

$

In Stock, only 1 left!

0

23

Honda 93500-03006-0A

SCREW, PAN (3X6)

Note: Use up to Frame SN 1042190.

$1.49

$

Usually ships in 3-6 days

0

23

Honda 93500-03006-0A

SCREW, PAN (3X6)

Note: Use from Frame SN 1042191.

$1.49

$

Usually ships in 3-6 days

0

24

Honda 93500-04006-0A

SCREW, PAN (4X6)

Note: Use up to Frame SN 1042190.

$1.49

$

Usually ships in 3-6 days

0

25

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 3 left!

0

26

Honda 93500-04010-3J

SCREW, PAN (4X10)

Note: Use from Frame SN 1042191.

$2.49

$

Usually ships in 3-6 days

0

27

Honda 93500-05012-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X12)

$1.49

$

In Stock, Qty 8

0

28

Honda 93500-05012-3J

SCREW, PAN (5X12)

Note: Use up to Frame SN 1042190.

$1.49

$

Usually ships in 3-6 days

0

29

Honda 93901-15120

SCREW, TAPPING (5X10)

$0.99

$

Usually ships in 3-6 days

0

30

Honda 94001-04000-0S

NUT, HEX. (4MM)

$1.49

$

In Stock, only 1 left!

0

31

Honda 94001-05000-0S

NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 94001-06390-0S

NUT, HEX. (6MM)

$2.49

$

Usually ships in 3-6 days

0

33

Honda 94111-04800

WASHER, SPRING (4MM)

Note: Use from Frame SN 1042191.

$1.49

$

Usually ships in 3-6 days

0

34

Honda 94111-05800

WASHER, SPRING (5MM)

Note: Use up to Frame SN 1042190.

$1.99

$

Usually ships in 3-6 days

0

35

Honda 94111-06800

WASHER, SPRING (6MM)

$1.99

$

Usually ships in 3-6 days

0
