EB3800X AC (EAJC) - Honda Generator, Made in China (SN: EAJC-1000001 - EAJC-9999999) PISTON + CONNECTING ROD Parts Diagram

Generator, Made in China

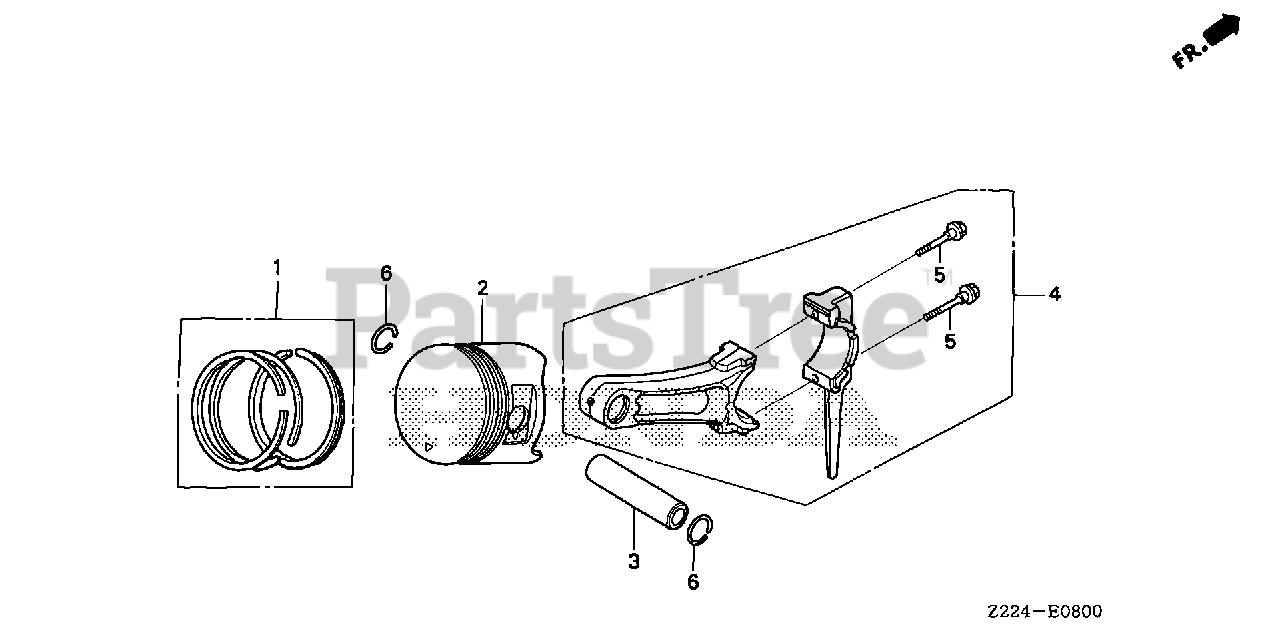

PISTON + CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-Z5R-004

RING SET, PISTON (STD) (TEIKOKU)

$59.99

$

In Stock, Qty 13

0

1

Honda 13011-Z5R-004

RING SET, PISTON (0.25) (TEIKOKU)

Note: (Optional).

$

$

Not available

1

Honda 13012-Z5R-004

RING SET, PISTON (0.50) (TEIKOKU)

Note: (Optional).

$

$

Not available

1

Honda 13013-Z5R-004

RING SET, PISTON (0.75) (TEIKOKU)

Note: (Optional).

$

$

Not available

2

Honda 13101-ZF6-W01

PISTON (STD)

$90.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZF6-W01

PISTON (0.25)

Note: (Optional).

$89.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZF6-W01

PISTON (0.50)

Note: (Optional).

$89.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZF6-W01

PISTON (0.75)

Note: (Optional).

$94.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZF6-W00

PIN, PISTON

$17.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE3-315

ROD ASSY., CONNECTING (0.25 LOWER SIZE)

Note: (Optional).

$155.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z1C-900

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (STD)

$34.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE3-020

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (STD)
(Superseded to 13200-Z1C-900)

$34.99

$

In Stock, only 1 left!

0

5

Honda 90001-ZE8-000

BOLT, CONNECTING ROD

$4.99

$

Usually ships in 3-6 days

0

6

Honda 90601-ZE3-000

CLIP, PISTON PIN (20MM)

$2.49

$

Usually ships in 3-6 days

0
