EB3800X A (EAJC) - Honda Generator, Made in China (SN: EAJC-1000001 - EAJC-9999999) CARBURETOR (1) Parts Diagram

Generator, Made in China

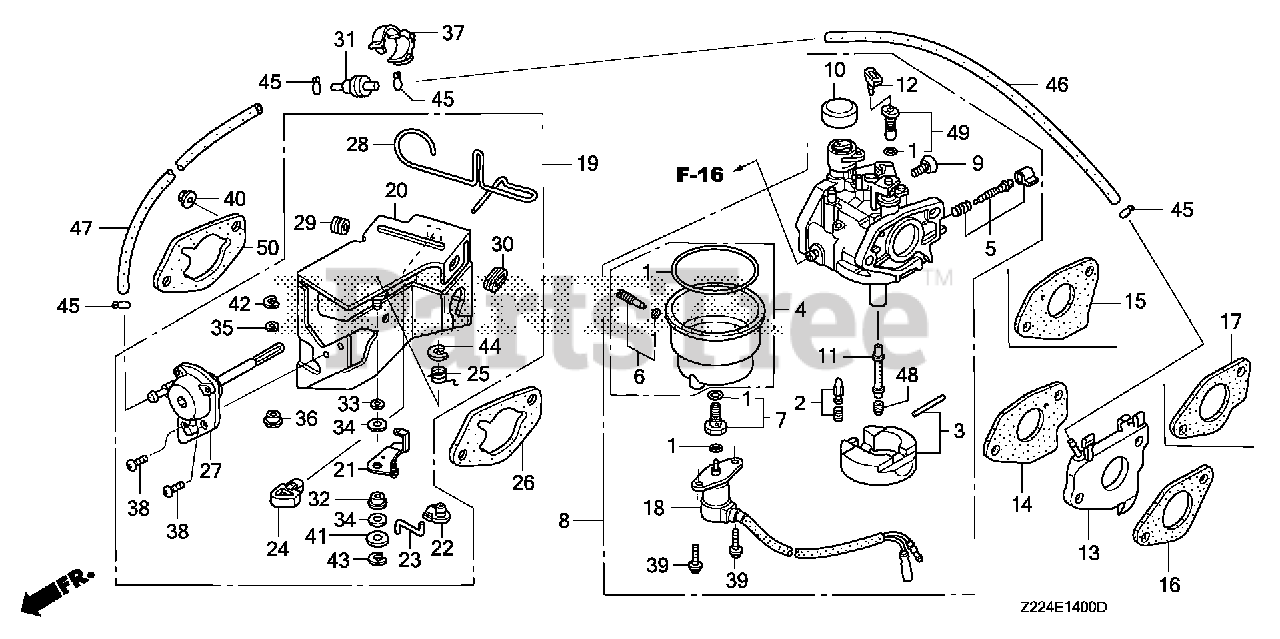

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-ZE3-701

GASKET SET (Honda Code 2386233).

$18.99

$

In Stock, only 2 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$43.99

$

In Stock, only 2 left!

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$49.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZA0-931

CHAMBER SET, FLOAT (Honda Code 2386241).

$80.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SEE PART DETAILS - PRI; SCREW SET (Honda Code 4219879). (CARBURETOR NO.)

$20.99

$

In Stock, only 3 left!

0

6

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN (ADVENTURE GREEN) (CARBURETOR NO.)

Note: Use up to Engine SN BE72C B. Use from Engine SN BE72L A.

$14.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZA0-931

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 2097376).

$27.99

$

In Stock, only 1 left!

0

8

Honda 16100-Z5F-F01

CARBURETOR ASSY. (BE72L A)

$203.99

$

Usually ships in 3-6 days

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

10

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468).

$6.49

$

In Stock, only 1 left!

0

11

Honda 16166-ZE2-015

NOZZLE, MAIN (Honda Code 2157543).

$33.99

$

Usually ships in 3-6 days

0

12

Honda 16172-ZE3-W10

COLLAR, SET (Honda Code 3738358).

$10.99

$

Usually ships in 3-6 days

0

13

Honda 16211-ZE2-701

SEE PART DETAILS - PRI; INSULATOR, CARBURETOR

$10.99

$

In Stock, only 2 left!

0

14

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3678620).

$2.49

$

In Stock, Qty 20+

0

16

Honda 16223-ZA0-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 3678638).

$2.99

$

In Stock, Qty 20+

0

18

Honda 16230-ZE3-701

SEE PART DETAILS - SUP; VALVE ASSY., SOLENOID
(Superseded to 16230-ZE3-702)

Note: Use up to Engine SN 4852917.

$72.99

$

In Stock, only 1 left!

0

18

Honda 16230-ZE3-702

SEE PART DETAILS - PRI; VALVE ASSY., SOLENOID

$72.99

$

In Stock, only 1 left!

0

19

Honda 16260-ZE3-D22

SEE PART DETAILS - PRI; STAY ASSY., MANUAL CHOKE

$123.99

$

In Stock, only 1 left!

0

20

Honda 16261-ZE2-702

SEE PART DETAILS - PRI; STAY, SOLENOID

$34.99

$

Usually ships in 3-6 days

0

21

Honda 16262-ZE2-711

LEVER, CHOKE

$8.99

$

Usually ships in 3-6 days

0

22

Honda 16263-ZA0-000

JOINT, ROD (Honda Code 1307677).

$5.49

$

Usually ships in 3-6 days

0

23

Honda 16264-ZE2-701

ROD, CHOKE

$2.49

$

In Stock, only 1 left!

0

24

Honda 16265-ZE2-721

STOPPER, CHOKE ROD

$2.99

$

Usually ships in 3-6 days

0

25

Honda 16268-ZE2-721

SPRING, MANUAL CHOKE

$3.99

$

Usually ships in 3-6 days

0

26

Honda 16269-ZA0-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER (Honda Code 3755212).

$2.49

$

In Stock, Qty 20+

0

27

Honda 16400-ZE2-704

SEE PART DETAILS - PRI; DIAPHRAGM ASSY.

$82.99

$

Usually ships in 3-6 days

0

28

Honda 16611-ZE3-D21

ROD, CHOKE CONTROL

$7.99

$

Usually ships in 3-6 days

0

29

Honda 16613-893-000

SEE PART DETAILS - PRI; GROMMET, CHOKE ROD

$3.99

$

In Stock, Qty 20+

0

30

Honda 16615-893-000

GUIDE, CHOKE ROD

$4.99

$

In Stock, only 1 left!

0

31

Honda 36135-ZF6-D41

VALVE, DASHPOT CHECK

$41.99

$

Usually ships in 3-6 days

0

32

Honda 53149-964-003

BUSH, ARM PIVOT

$8.49

$

Usually ships in 3-6 days

0

33

Honda 90431-ZE2-700

WASHER, CHOKE LEVER

$3.99

$

Usually ships in 3-6 days

0

34

Honda 90432-ZE2-700

SEAL, CHOKE LEVER

$3.99

$

Usually ships in 3-6 days

0

35

Honda 90433-ZE2-700

WASHER, THRUST (2.7X8)

$3.99

$

Usually ships in 3-6 days

0

36

Honda 90434-ZE2-700

COLLAR, LEVER

$3.99

$

Usually ships in 3-6 days

0

37

Honda 90650-SD9-003

CLIP, WIRE HARNESS

$8.49

$

Usually ships in 3-6 days

0

38

Honda 93500-05012-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X12) (Honda Code 0173567).

$1.49

$

In Stock, Qty 8

0

39

Honda 93892-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12) (Honda Code 0368621).

$1.49

$

In Stock, only 3 left!

0

40

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

41

Honda 94103-05000

WASHER, PLAIN (5MM) (Honda Code 1555630).

$0.99

$

In Stock, only 3 left!

0

42

Honda 94540-02010

E-RING (2MM)

$1.99

$

In Stock, only 4 left!

0

43

Honda 94540-04010

E-RING (4MM)

$2.99

$

Usually ships in 3-6 days

0

44

Honda 94540-07010

E-RING (7MM)

$2.99

$

Usually ships in 3-6 days

0

45

Honda 95002-02070

CLIP, TUBE (B7) (Honda Code 0250639).

$2.49

$

In Stock, Qty 5

0

46

Honda 95005-35008-10M

SEE PART DETAILS - PRI; BULK HOSE, VACUUM (3.5X8000) (3.5X130)

$158.99

$

Usually ships in 3-6 days

0

47

Honda 95005-35008-10M

SEE PART DETAILS - PRI; BULK HOSE, VACUUM (3.5X8000) (3.5X130)

$158.99

$

Usually ships in 3-6 days

0

48

Honda 99101-ZH8-0750

JET, MAIN (#75) (CARBURETOR NO.)

Note: (Optional)

$8.49

$

In Stock, only 1 left!

0

48

Honda 99101-ZH8-0780

JET, MAIN (#78) (CARBURETOR NO.)

Note: (Optional)

$8.49

$

Usually ships in 3-6 days

0

48

Honda 99101-ZH8-0800

SEE PART DETAILS - PRI; JET, MAIN (#80)

$7.99

$

Usually ships in 3-6 days

0

49

Honda 99204-ZA0-0450

JET SET, PILOT (#45) (Honda Code 2060465).

$23.99

$

In Stock, only 1 left!

0

50

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

Note: Use from Engine SN 4811745.

$11.99

$

Usually ships in 3-6 days

0

50

Honda 16269-ZA0-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER (Honda Code 3755212).

Note: Use up to Engine SN 4811744.

$2.49

$

In Stock, Qty 20+

0
