EB3800X A (EAJC) - Honda Generator, Made in China (SN: EAJC-1000001 - EAJC-9999999) AIR CLEANER (2) Parts Diagram

Generator, Made in China

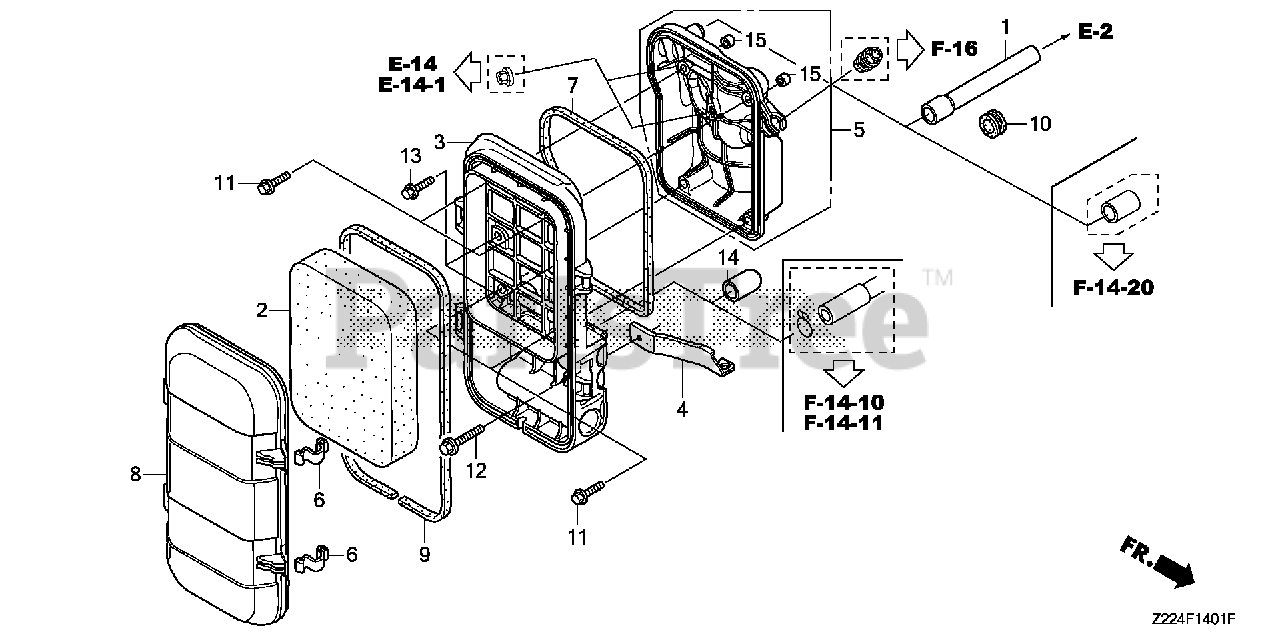

AIR CLEANER (2) Parts Diagram

  • Title
1

Honda 15721-Z23-H60

TUBE, BREATHER

Note: Use from Frame SN 1017493.

$6.49

$

In Stock, only 2 left!

0

2

Honda 17211-899-000

ELEMENT, AIR CLEANER

Note: Use from Frame SN 1017493.

$9.49

$

In Stock, Qty 9

0

3

Honda 17220-Z23-H60

HOUSING, AIR CLEANER

Note: Use from Frame SN 1017493.

$71.99

$

Usually ships in 3-6 days

0

4

Honda 17222-Z21-F60

STAY, AIR CLEANER

Note: Use from Frame SN 1017493.

$8.99

$

Usually ships in 3-6 days

0

5

Honda 17223-Z23-H61

BASE, AIR CLEANER

Note: Use from Frame SN 1017493.

$56.99

$

Usually ships in 3-6 days

0

6

Honda 17223-965-003

SPRING, AIR CLEANER HOUSING LID

Note: Use from Frame SN 1017493.

$9.49

$

In Stock, only 2 left!

0

7

Honda 17229-Z23-H60

SEAL, AIR CLEANER HOUSING

Note: Use from Frame SN 1017493.

$11.99

$

In Stock, only 1 left!

0

8

Honda 17231-Z23-H60

COVER, AIR CLEANER

Note: Use from Frame SN 1017493.

$63.99

$

In Stock, only 2 left!

0

9

Honda 17233-Z23-H60

SEAL, AIR CLEANER COVER

Note: Use from Frame SN 1017493.

$17.99

$

In Stock, only 1 left!

0

10

Honda 88911-MJ3-000

GROMMET, FENDER (Honda Code 2288900).

Note: Use from Frame SN 1017493.

$2.49

$

In Stock, Qty 5

0

11

Honda 90005-ZM3-000

BOLT, FLANGE (5X18)

Note: Use from Frame SN 1017493.

$1.99

$

In Stock, Qty 5

0

12

Honda 95701-06032-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 2581361).

Note: Use from Frame SN 1017493.

$2.49

$

In Stock, only 4 left!

0
