EB3500X A (EA6) - Honda Generator, Made in Japan (SN: EA6-3000001 - EA6-3100000) WHEEL (2-WHEELS) (EM, EB) Parts Diagram

Generator, Made in Japan

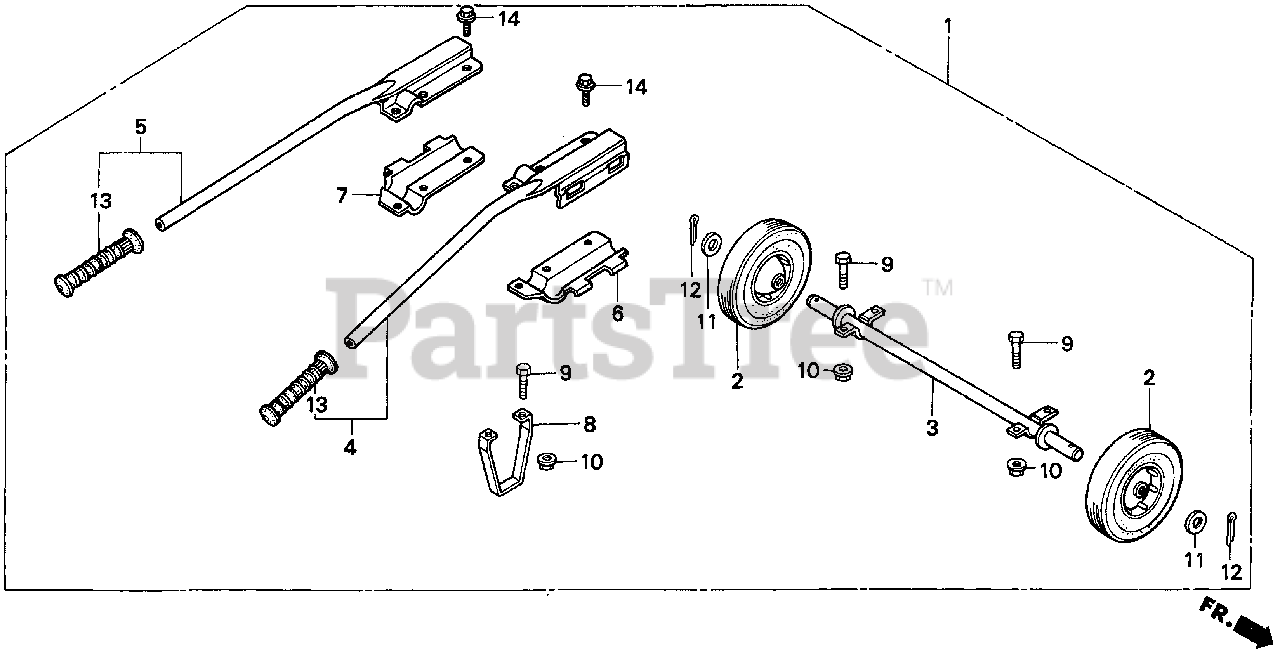

WHEEL (2-WHEELS) (EM, EB) Parts Diagram

  • Title

1

Honda 06710-ZB4-800

WHEEL KIT (2-WHEELS)

Note: (Optional).

$309.99

$

Usually ships in 3-6 days

0

2

Honda 42710-899-801

WHEEL (GLEASON 10"X2.75"=254X70)

Note: (Optional).

$64.99

$

Usually ships in 3-6 days

0

3

Honda 42730-ZB4-800

SHAFT, WHEEL

Note: (Optional).

$155.99

$

Usually ships in 3-6 days

0

4

Honda 53110-ZB4-800

HANDLE, R. (LOWER)

Note: (Optional).

$162.99

$

Usually ships in 3-6 days

0

5

Honda 53111-ZB4-800

HANDLE, L. (LOWER)

Note: (Optional).

$198.99

$

Usually ships in 3-6 days

0

6

Honda 53112-ZB4-800

BRACKET, R. HANDLE (UPPER)

Note: (Optional).

$35.99

$

Usually ships in 3-6 days

0

7

Honda 53113-ZB4-800

BRACKET, L. HANDLE (UPPER)

Note: (Optional).

$35.99

$

Usually ships in 3-6 days

0

8

Honda 53135-899-930

STAND

Note: (Optional).

$37.99

$

Usually ships in 3-6 days

0

9

Honda 92101-08016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X16)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

10

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

11

Honda 94102-20000

WASHER, PLAIN (20MM)

Note: (Optional).

$1.49

$

In Stock, Qty 8

0

12

Honda 94201-40280

PIN, SPLIT (4.0X28)

Note: (Optional).

$1.49

$

In Stock, Qty 5

0

12

Honda 94201-40300

SEE PART DETAILS - PRI; PIN, COTTER (4.0X30)

Note: (Optional).

$1.49

$

In Stock, Qty 5

0

13

Honda 95011-14100

GRIP D, R. HANDLE (BOTH SIDES)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

14

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16) Use up to Frame SN 1008045.
(Superseded to 95701-08016-00)

Note: (Optional).

$2.49

$

In Stock, Qty 7

0

14

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

Note: (Optional).

$2.49

$

In Stock, Qty 7

0
