EB3500X A (EA6) - Honda Generator, Made in Japan (SN: EA6-3000001 - EA6-3100000) RECOIL STARTER Parts Diagram

Generator, Made in Japan

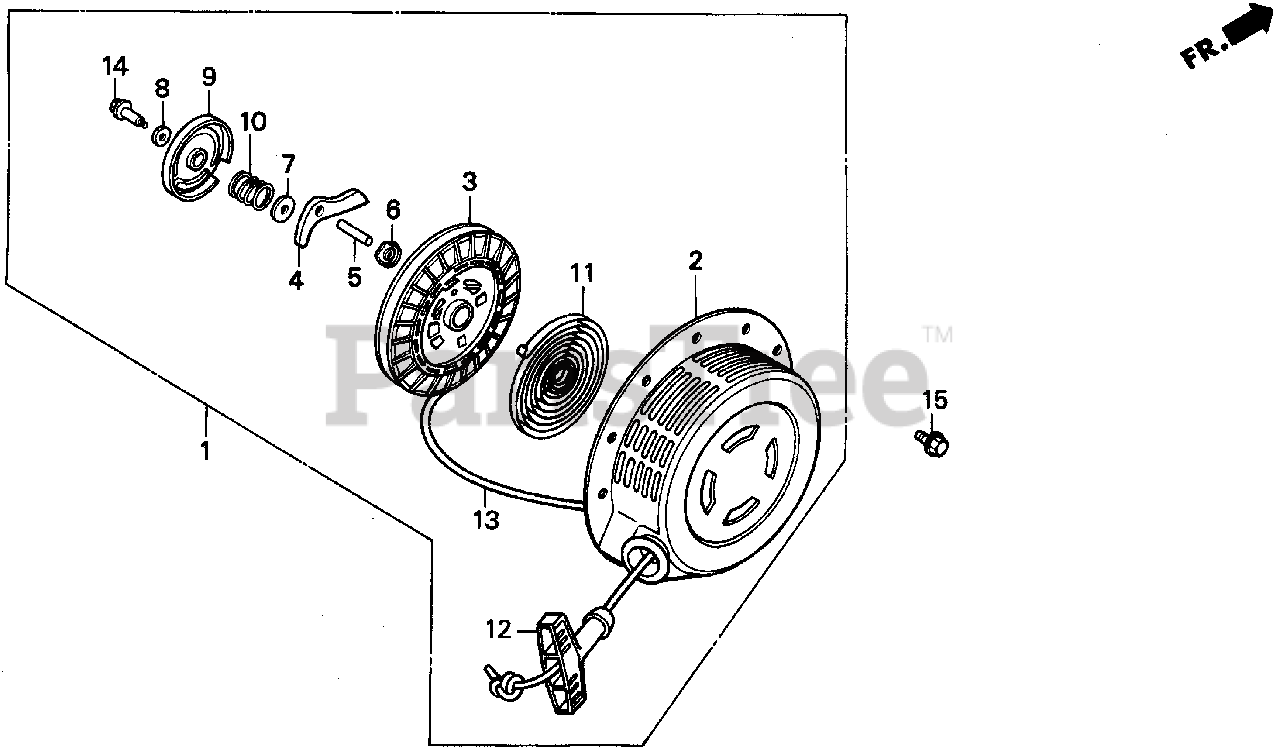

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE2-003ZF

STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 06280-ZE2-305)

$105.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE2-003ZA

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R8* (BRIGHT RED)

$

$

Not available

3

Honda 28420-889-631

REEL, STARTER (Honda Code 1956572).

$34.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE1-711

RATCHET, STARTER (Honda Code 1950807).

$5.49

$

Usually ships in 3-6 days

0

5

Honda 28423-ZE1-711

SHAFT, RATCHET (Honda Code 1950815).

$8.99

$

Usually ships in 3-6 days

0

6

Honda 28424-ZE1-711

SEE PART DETAILS - SUP; PLATE, GUIDE
(Superseded to 28424-ZE1-712)

$4.99

$

Usually ships in 3-6 days

0

6

Honda 28424-ZE1-712

SEE PART DETAILS - PRI; PLATE, GUIDE (Honda Code 4590527).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 28431-ZE1-711

PLATE A, FRICTION (Honda Code 1950823).

$3.99

$

Usually ships in 3-6 days

0

8

Honda 28432-ZG0-003

SEE PART DETAILS - PRI; PLATE B, FRICTION (Honda Code 1795459).

$2.99

$

Usually ships in 3-6 days

0

9

Honda 28434-ZE1-711

COVER, REEL STARTER (Honda Code 1950831).

$

$

Not available

10

Honda 28441-ZE1-711

SEE PART DETAILS - SUP; SPRING, FRICTION

$3.49

$

Usually ships in 3-6 days

0

11

Honda 28442-ZE1-713

SEE PART DETAILS - PRI; SPRING, RETURN (Honda Code 4617403).

$21.99

$

Usually ships in 3-6 days

0

12

Honda 28461-889-631

SEE PART DETAILS - PRI; GRIP, STARTER (Honda Code 1956606).

$10.99

$

In Stock, Qty 14

0

13

Honda 28462-ZE1-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X59") (NA USE ALT:08550-ZG921-11) (Honda Code 1428754).

$8.99

$

Usually ships in 3-6 days

0

14

Honda 90003-ZG0-003

BOLT, REEL COVER (Honda Code 1795715).

$

$

Not available

15

Honda 90011-ZG0-000

BOLT, FLANGE (6X8) (Honda Code 1795723).

$3.49

$

In Stock, Qty 8

0
