EB3500X A (EA6) - Honda Generator, Made in Japan (SN: EA6-3000001 - EA6-3100000) FRAME (EM, EB) Parts Diagram

Generator, Made in Japan

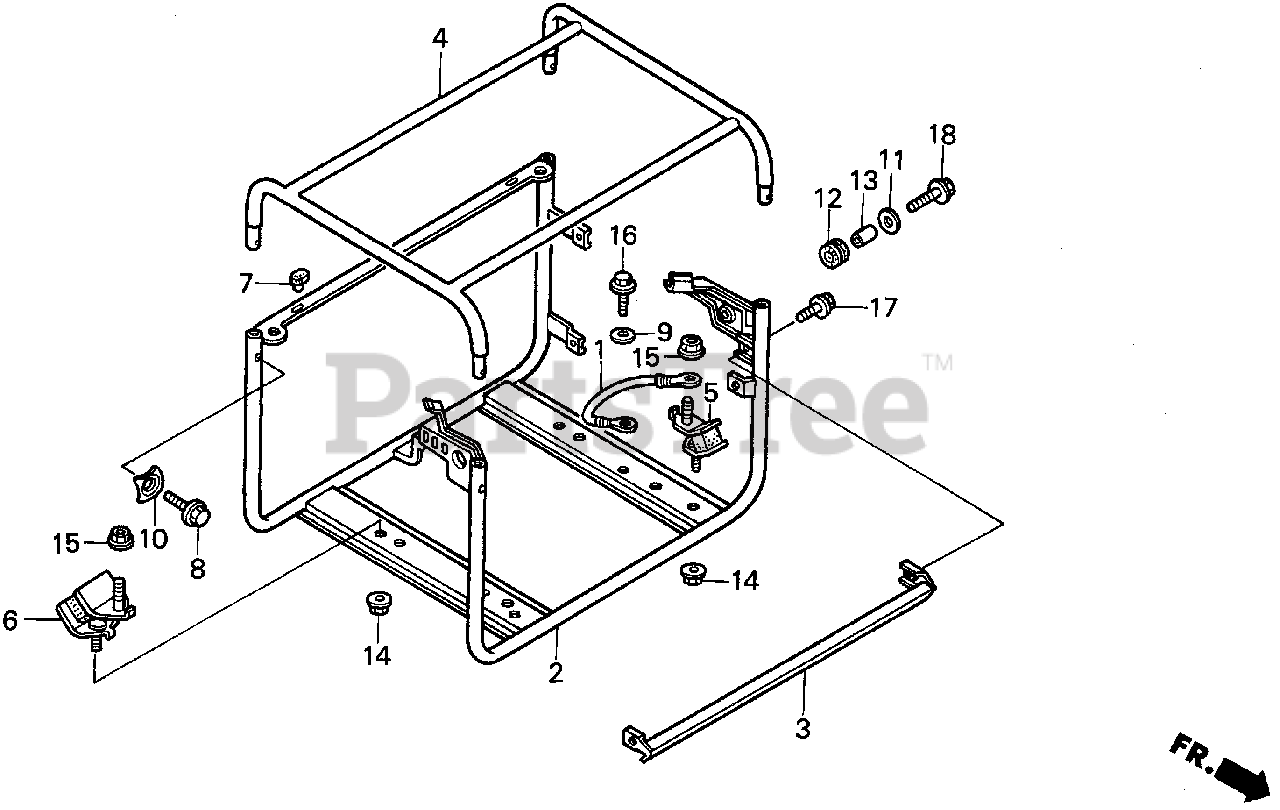

FRAME (EM, EB) Parts Diagram

  • Title

1

Honda 32610-899-000

CABLE, GROUND

Note: Use from Frame SN 3015445.

$15.99

$

Usually ships in 3-6 days

0

2

Honda 50310-ZB4-800ZA

FRAME (LOWER) *NH105* (MAT BLACK)

$521.99

$

Usually ships in 3-6 days

0

3

Honda 50315-ZB4-800ZA

CHANNEL, FR. *NH105* (MAT BLACK)

$80.99

$

Usually ships in 3-6 days

0

4

Honda 50350-ZB4-800ZA

FRAME (UPPER) *NH105* (MAT BLACK)

$

$

Not available

5

Honda 68325-ZB4-000

RUBBER (LOWER)

$43.99

$

In Stock, only 2 left!

0

6

Honda 68325-899-000

RUBBER (LOWER)

$55.99

$

Usually ships in 3-6 days

0

7

Honda 76122-952-000

STOPPER, DISCHARGE GUARD Use up to Frame SN 1186736.

$4.99

$

In Stock, only 2 left!

0

8

Honda 90015-898-000

BOLT, FLANGE (8X20) (NOT AVAILABLE)

Note: Use up to Frame SN 3012923.

$2.99

$

Usually ships in 3-6 days

0

8

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16) Use up to Frame SN 1008045.
(Superseded to 95701-08016-00)

Note: Use from Frame SN 3031828.

$2.49

$

In Stock, Qty 20+

0

8

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

Note: Use from Frame SN 3031828.

$2.49

$

In Stock, Qty 20+

0

8

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

Note: Use from Frame SN 3012924 to 3031827.

$2.49

$

In Stock, only 3 left!

0

9

Honda 90432-898-000

WASHER, LOCK (6MM)

Note: Use from Frame SN 3015445.

$1.49

$

Usually ships in 3-6 days

0

10

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, only 2 left!

0

11

Honda 90506-500-000

WASHER, AIR DUCT

$

$

Currently unavailable

12

Honda 90852-898-000

RUBBER, CONTROL BOX

$5.49

$

In Stock, only 2 left!

0

13

Honda 91552-898-000

COLLAR, CONTROL BOX

$5.49

$

Usually ships in 3-6 days

0

14

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

15

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$1.99

$

In Stock, only 4 left!

0

16

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

Note: Use from Frame SN 3015445.

$1.99

$

In Stock, Qty 8

0

17

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

18

Honda 95700-06018-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X18)
(Superseded to 95701-06018-00)

$2.49

$

In Stock, Qty 5

0

18

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 5

0
