EB3500X A (EA6) - Honda Generator, Made in Japan (SN: EA6-3000001 - EA6-3100000) CARBURETOR (EM, EB) Parts Diagram

Generator, Made in Japan

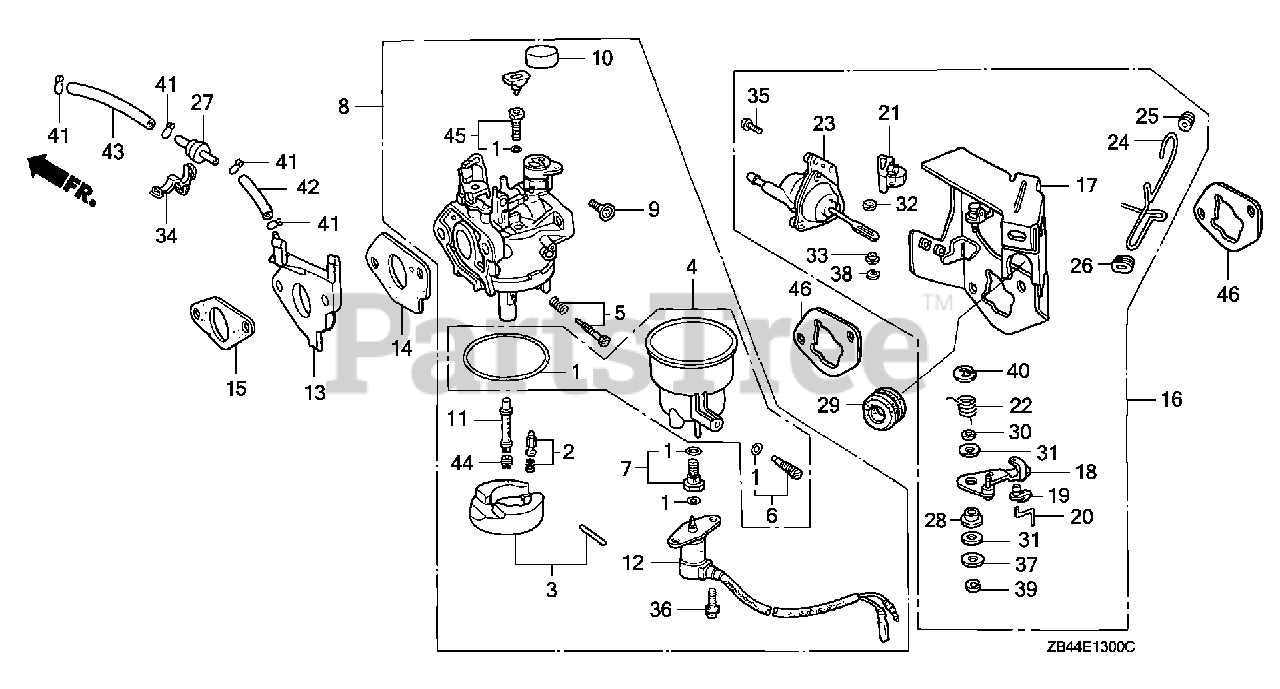

CARBURETOR (EM, EB) Parts Diagram

  • Title

1

Honda 16010-ZA0-931

GASKET SET (Honda Code 2097368).

$22.99

$

In Stock, Qty 5

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$43.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$49.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZA0-931

CHAMBER SET, FLOAT (Honda Code 2386241).

$80.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZA0-931

SCREW SET, PILOT (Honda Code 2090009).

$15.99

$

In Stock, only 1 left!

0

6

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN (ADVENTURE GREEN) (CARBURETOR NO.)

$14.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZA0-931

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 2097376).

$27.99

$

In Stock, only 1 left!

0

8

Honda 16100-ZE2-733

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE20A C)
(Superseded to 16100-ZE2-734)

Note: Use up to Engine SN 1259315.

$120.99

$

In Stock, only 1 left!

0

8

Honda 16100-ZE2-734

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE20A D)

$120.99

$

In Stock, only 1 left!

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

10

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468).

$6.49

$

In Stock, only 1 left!

0

11

Honda 16166-ZE2-731

NOZZLE, MAIN (NOT AVAILABLE)

$

$

Not available

12

Honda 16200-ZE2-731

VALVE, SOLENOID (NOT AVAILABLE)

$

$

Not available

13

Honda 16211-ZE2-701

SEE PART DETAILS - PRI; INSULATOR, CARBURETOR

$10.99

$

In Stock, only 2 left!

0

14

Honda 16221-ZA0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 4357307).
(Superseded to 16221-ZA0-800)

$2.49

$

In Stock, Qty 20+

0

14

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3678620).

$2.49

$

In Stock, Qty 20+

0

15

Honda 16223-ZA0-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 3678638).

$2.99

$

In Stock, Qty 20+

0

16

Honda 16260-ZE2-722

SEE PART DETAILS - PRI; STAY ASSY., MANUAL CHOKE
(Superseded to 16260-ZE2-723)

Note: Use up to Engine SN 1052019.

$165.99

$

Usually ships in 3-6 days

0

16

Honda 16260-ZE2-722

SEE PART DETAILS - PRI; STAY ASSY., MANUAL CHOKE
(Superseded to 16260-ZE2-723)

Note: Use from Engine SN 1052020.

$165.99

$

Usually ships in 3-6 days

0

16

Honda 16260-ZE2-723

SEE PART DETAILS - PRI; STAY ASSY., MANUAL CHOKE

Note: Use up to Engine SN 1052019.

$165.99

$

Usually ships in 3-6 days

0

16

Honda 16260-ZE2-723

SEE PART DETAILS - PRI; STAY ASSY., MANUAL CHOKE

Note: Use from Engine SN 1052020.

$165.99

$

Usually ships in 3-6 days

0

17

Honda 16261-ZE2-700

STAY, SOLENOID (NA USE ALT:04103-ZE2-702)

Note: Use up to Engine SN 1052019.

$

$

Currently unavailable

17

Honda 16261-ZE2-702

SEE PART DETAILS - PRI; STAY, SOLENOID

Note: Use from Engine SN 1052020.

$34.99

$

Usually ships in 3-6 days

0

18

Honda 16262-ZE2-710

SEE PART DETAILS - SUP; LEVER, CHOKE

Note: Use up to Engine SN 1052019.

$

$

Currently unavailable

18

Honda 16262-ZE2-711

LEVER, CHOKE

Note: Use from Engine SN 1052020.

$8.99

$

Usually ships in 3-6 days

0

19

Honda 16263-ZA0-000

JOINT, ROD (Honda Code 1307677).

$5.49

$

Usually ships in 3-6 days

0

20

Honda 16264-ZE2-700

SEE PART DETAILS - SUP; ROD, CHOKE

Note: Use up to Engine SN 1052019.

$

$

Currently unavailable

20

Honda 16264-ZE2-701

ROD, CHOKE

Note: Use from Engine SN 1052020.

$2.49

$

In Stock, only 1 left!

0

21

Honda 16265-ZE2-721

STOPPER, CHOKE ROD

Note: Use from Engine SN 1119489.

$2.99

$

Usually ships in 3-6 days

0

22

Honda 16268-ZE2-720

SPRING, MANUAL CHOKE (NA USE ALT:04103-ZE2-702)

Note: Use up to Engine SN 1052019.

$

$

Currently unavailable

22

Honda 16268-ZE2-721

SPRING, MANUAL CHOKE

Note: Use from Engine SN 1052020.

$3.99

$

Usually ships in 3-6 days

0

23

Honda 16400-ZE2-721

DIAPHRAGM ASSY. (NA USE ALT:04103-ZE2-702)

Note: Use up to Engine SN 1052019.

$

$

Currently unavailable

23

Honda 16400-ZE2-704

SEE PART DETAILS - PRI; DIAPHRAGM ASSY.

Note: Use from Engine SN 1052020.

$82.99

$

Usually ships in 3-6 days

0

24

Honda 16611-ZE2-710

ROD, CHOKE CONTROL

Note: Use up to Engine SN 1052019.

$

$

Currently unavailable

24

Honda 16611-ZE2-711

ROD, CHOKE CONTROL

Note: Use from Engine SN 1052020.

$8.49

$

Usually ships in 3-6 days

0

25

Honda 16613-893-000

SEE PART DETAILS - PRI; GROMMET, CHOKE ROD

$3.99

$

In Stock, only 2 left!

0

26

Honda 16615-893-000

GUIDE, CHOKE ROD

$4.99

$

In Stock, only 1 left!

0

27

Honda 36135-ZV1-003

VALVE, DASHPOT CHECK

$

$

Not available

28

Honda 53149-964-003

BUSH, ARM PIVOT

$8.49

$

Usually ships in 3-6 days

0

29

Honda 88911-MJ3-000

GROMMET, FENDER (Honda Code 2288900).

$2.49

$

In Stock, Qty 5

0

30

Honda 90431-ZE2-700

WASHER, CHOKE LEVER

$3.99

$

Usually ships in 3-6 days

0

31

Honda 90432-ZE2-700

SEAL, CHOKE LEVER

$3.99

$

Usually ships in 3-6 days

0

32

Honda 90433-ZE2-700

WASHER, THRUST (2.7X8)

$3.99

$

Usually ships in 3-6 days

0

33

Honda 90434-ZE2-700

COLLAR, LEVER

$3.99

$

Usually ships in 3-6 days

0

34

Honda 90650-SD9-003

CLIP, WIRE HARNESS

$8.49

$

Usually ships in 3-6 days

0

35

Honda 93500-05012-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X12) (Honda Code 0173567).

$1.49

$

In Stock, Qty 8

0

36

Honda 93892-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12) (Honda Code 0368621).

$1.49

$

In Stock, only 3 left!

0

37

Honda 94103-05000

WASHER, PLAIN (5MM) (Honda Code 1555630).

$0.99

$

In Stock, only 3 left!

0

38

Honda 94540-02010

E-RING (2MM)

$1.99

$

In Stock, only 4 left!

0

39

Honda 94540-04010

E-RING (4MM)

$2.99

$

Usually ships in 3-6 days

0

40

Honda 94540-07010

E-RING (7MM)

$2.99

$

Usually ships in 3-6 days

0

41

Honda 95002-02070

CLIP, TUBE (B7) (Honda Code 0250639).

$2.49

$

In Stock, Qty 5

0

42

Honda 95005-35008-10M

SEE PART DETAILS - PRI; BULK HOSE, VACUUM (3.5X8000) (3.5X130)

$158.99

$

Usually ships in 3-6 days

0

43

Honda 95005-35008-10M

SEE PART DETAILS - PRI; BULK HOSE, VACUUM (3.5X8000) (3.5X130)

Note: Use up to Engine SN 1052019.

$158.99

$

Usually ships in 3-6 days

0

43

Honda 95005-35008-10M

SEE PART DETAILS - PRI; BULK HOSE, VACUUM (3.5X8000) (3.5X130)

Note: Use from Engine SN 1052020.

$158.99

$

Usually ships in 3-6 days

0

44

Honda 99101-124-0800

JET, MAIN (#80) (Honda Code 0714519).

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

44

Honda 99101-124-0820

JET, MAIN (#82) (Honda Code 0714527).

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

44

Honda 99101-124-0850

JET, MAIN (#85) (Honda Code 0761361).

$11.99

$

Usually ships in 3-6 days

0

45

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (Honda Code 1441609).

$22.99

$

In Stock, only 1 left!

0

46

Honda 16269-ZA0-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER (Honda Code 3755212).

$2.49

$

In Stock, only 2 left!

0
