EB3000c K1 AG/A (EZGP) - Honda Generator, Made in Japan (SN: EZGP-1130001 - EZGP-9999999) COOLING FAN Parts Diagram

Generator, Made in Japan

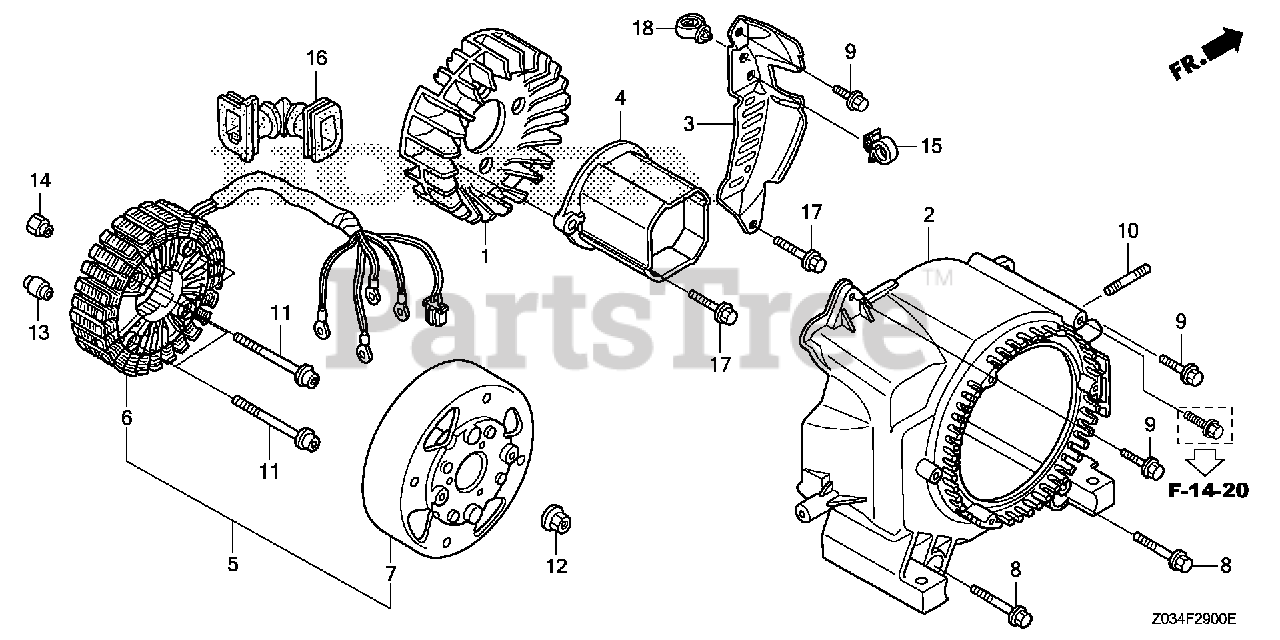

COOLING FAN Parts Diagram

  • Title

1

Honda 19511-Z03-000

FAN, COOLING

Note: Use up to Frame SN 1163705.

$

$

Not available

1

Honda 19511-Z03-G60

FAN, COOLING

Note: Use from Frame SN 1163706.

$31.99

$

Usually ships in 3-6 days

0

2

Honda 19611-Z03-000

COVER, FAN

$110.99

$

Usually ships in 3-6 days

0

3

Honda 19612-Z03-000

PLATE, SIDE

$19.99

$

In Stock, only 1 left!

0

4

Honda 28451-ZS9-C01

PULLEY, RECOIL STARTER

$39.99

$

Usually ships in 3-6 days

0

5

Honda 31000-Z04-C31

GENERATOR ASSY.

$

$

Not available

6

Honda 31120-Z04-C31

STATOR ASSY.

$678.99

$

Usually ships in 3-6 days

0

7

Honda 31130-Z03-C02

ROTOR

$281.99

$

Usually ships in 3-6 days

0

8

Honda 90017-883-000

BOLT, FLANGE (6X32) (CT200)

$3.49

$

In Stock, only 2 left!

0

9

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$2.99

$

In Stock, only 2 left!

0

10

Honda 90045-ZG1-770

BOLT, STUD (6X25)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90101-ZS9-010

BOLT, FLANGE SOCKET (6X61) (CT200)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90201-878-003

NUT, SPECIAL (14MM)

$7.99

$

In Stock, only 1 left!

0

13

Honda 90502-ZS9-000

COLLAR, STATOR

$13.99

$

Usually ships in 3-6 days

0

14

Honda 90503-ZS9-000

COLLAR, STATOR

$10.99

$

Usually ships in 3-6 days

0

15

Honda 90624-SB0-003

CLIP, WIRE HARNESS

$6.99

$

Usually ships in 3-6 days

0

16

Honda 91651-Z03-000

GROMMET, A.C. CORD

$11.99

$

Usually ships in 3-6 days

0

17

Honda 95701-06020-00

BOLT, FLANGE (6X20)

$2.49

$

In Stock, Qty 6

0
