EB3000c AG/A (EZGP) - Honda Generator, Made in Japan (SN: EZGP-1000001 - EZGP-1001374) CRANKCASE COVER Parts Diagram

Generator, Made in Japan

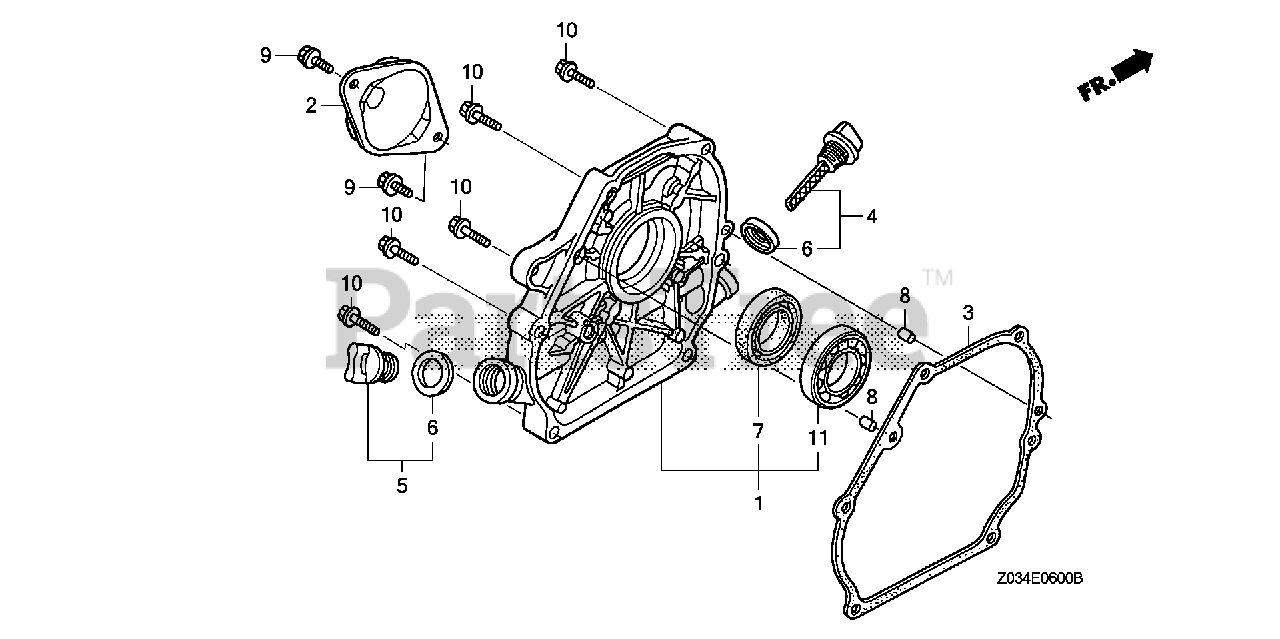

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZE1-633

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE
(Superseded to 11300-ZE1-634)

$197.99

$

Usually ships in 3-6 days

0

2

Honda 11327-ZK8-D40

GUARD, SHAFT

$6.49

$

Usually ships in 3-6 days

0

3

Honda 11381-ZL0-000

GASKET, CASE COVER

$19.99

$

In Stock, only 1 left!

0

4

Honda 15600-ZE1-003

CAP ASSY., OIL FILLER (GRAY)
(Superseded to 15600-Z0T-810)

$1.49

$

In Stock, Qty 7

0

5

Honda 15600-ZG4-003

CAP ASSY., OIL FILLER

$6.99

$

In Stock, only 1 left!

0

6

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

$3.49

$

In Stock, only 3 left!

0

7

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (NOK)

$9.49

$

In Stock, Qty 11

0

7

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$9.49

$

In Stock, Qty 11

0

8

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

9

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

10

Honda 95701-08032-00

BOLT, FLANGE (8X32)

$1.99

$

In Stock, Qty 5

0

11

Honda 96100-62050-00

BEARING, RADIAL BALL (6205)

$25.99

$

In Stock, only 1 left!

0
