EB3000 A (GE300) - Honda Generator, Made in Japan (SN: GE300-1000001 - GE300-9999999) LOWER FRAME + UPPER FRAME Parts Diagram

Generator, Made in Japan

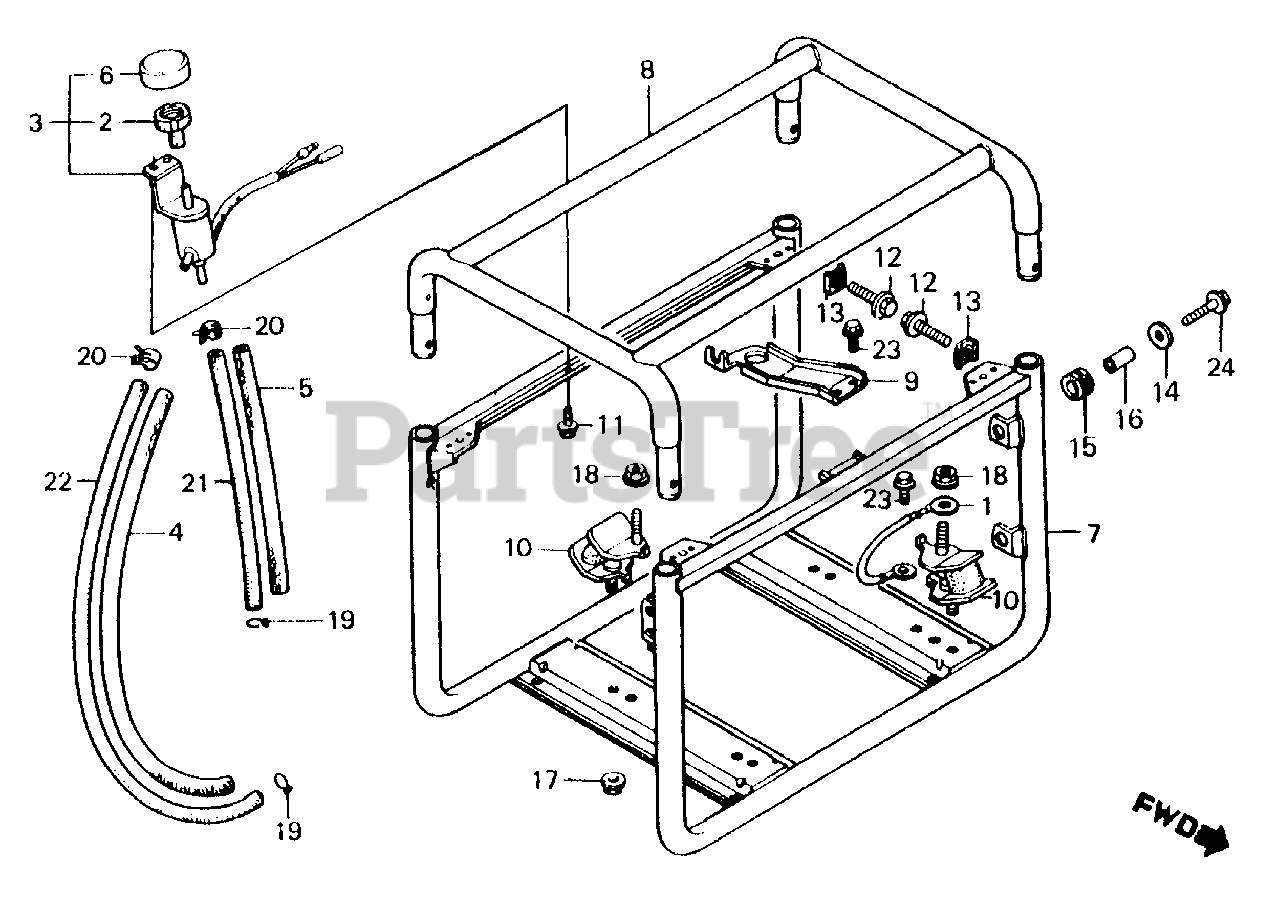

LOWER FRAME + UPPER FRAME Parts Diagram

  • Title

1

Honda 32610-899-000

CABLE, GROUND

$15.99

$

Usually ships in 3-6 days

0

2

Honda 36138-PA0-004

SEE PART DETAILS - SUP; FILTER ASSY., SOLENOID VALVE

$

$

Currently unavailable

2

Honda 36138-PM1-G01

SEE PART DETAILS - PRI; FILTER ASSY., SOLENOID VALVE

$

$

Not available

3

Honda 36160-899-003

VALVE ASSY., CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 36162-899-000

PROTECTOR, TUBE (9X390) (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 36163-899-000

PROTECTOR, TUBE (9X130)

$

$

Not available

6

Honda 38776-671-000

CAP, AIR FILTER

$

$

Not available

7

Honda 50310-899-801

FRAME (LOWER)

$

$

Currently unavailable

8

Honda 50350-899-800

FRAME (UPPER)

$

$

Currently unavailable

9

Honda 50361-899-000

STAY, BUMP STOP

$33.99

$

Usually ships in 3-6 days

0

10

Honda 68325-899-000

RUBBER (LOWER)

$55.99

$

Usually ships in 3-6 days

0

11

Honda 90002-892-000

BOLT, FLANGE (5X10)

$1.99

$

In Stock, Qty 5

0

12

Honda 90015-898-000

BOLT, FLANGE (8X20)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 9

0

14

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

15

Honda 90852-898-000

RUBBER, CONTROL BOX

$5.49

$

In Stock, only 2 left!

0

16

Honda 91552-898-000

COLLAR, CONTROL BOX

$5.49

$

Usually ships in 3-6 days

0

17

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

18

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

19

Honda 95002-02070

CLIP, TUBE (B7)

$2.49

$

In Stock, Qty 5

0

20

Honda 95002-40800-08

CLIP, TUBE (D8)

$2.99

$

In Stock, only 4 left!

0

21

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X140)

$14.99

$

Usually ships in 3-6 days

0

22

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X400)

$14.99

$

Usually ships in 3-6 days

0

23

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 7

0

24

Honda 95700-06018-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X18)
(Superseded to 95701-06018-00)

$2.49

$

In Stock, Qty 7

0

24

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 7

0
