EB3000 A (GE300) - Honda Generator, Made in Japan (SN: GE300-1000001 - GE300-9999999) CYLINDER + CYLINDER HEAD Parts Diagram

Generator, Made in Japan

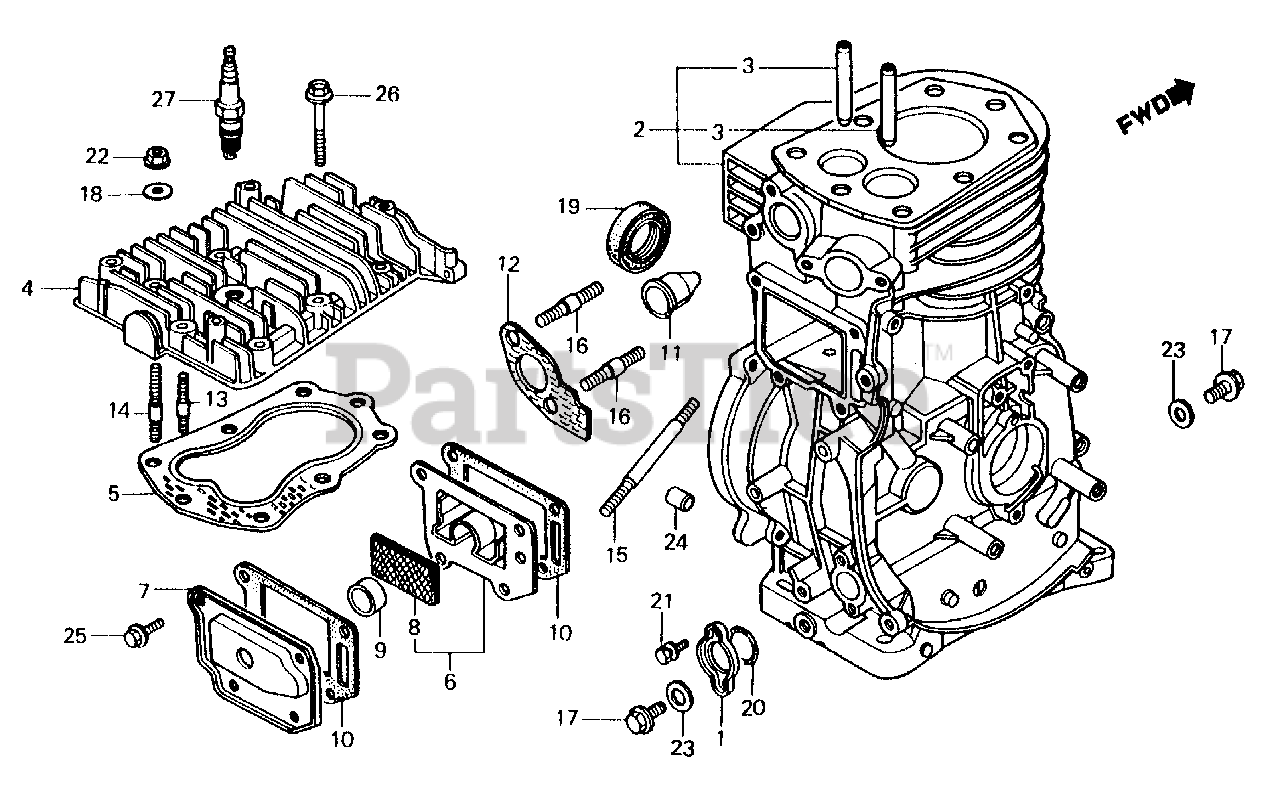

CYLINDER + CYLINDER HEAD Parts Diagram

  • Title

1

Honda 11210-822-010

COVER, OIL PAN

$4.49

$

Usually ships in 3-6 days

0

2

Honda 121A0-899-000

CYLINDER (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 12134-889-305

GUIDE, VALVE

$13.99

$

Usually ships in 3-6 days

0

4

Honda 122A2-899-600

CYLINDER HEAD

$

$

Currently unavailable

5

Honda 12281-889-315

GASKET, CYLINDER HEAD

$36.99

$

Usually ships in 3-6 days

0

6

Honda 12360-899-000

CASE, BREATHER

$

$

Not available

7

Honda 12361-889-000

COVER, TAPPET

$12.99

$

Usually ships in 3-6 days

0

8

Honda 12367-883-003

FILTER, BREATHER

$3.99

$

Usually ships in 3-6 days

0

9

Honda 12369-883-000

SEAL, BREATHER

$4.49

$

Usually ships in 3-6 days

0

10

Honda 12375-889-000

GASKET, TAPPET COVER

$

$

Not available

11

Honda 18321-899-000

LINER, EX. PIPE

$13.99

$

Usually ships in 3-6 days

0

12

Honda 18381-899-306

GASKET, EX. PIPE

$

$

Currently unavailable

13

Honda 90032-889-000

BOLT, STUD (M8XM10X63)

$8.99

$

Usually ships in 3-6 days

0

14

Honda 90033-889-000

BOLT, STUD (M8XM10X81)

$10.99

$

Usually ships in 3-6 days

0

15

Honda 90042-890-680

BOLT, STUD (8X104)

$9.49

$

Usually ships in 3-6 days

0

16

Honda 90047-883-000

BOLT, STUD (8X35)

$5.49

$

Usually ships in 3-6 days

0

17

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$5.49

$

In Stock, Qty 11

0

18

Honda 90430-657-000

WASHER (8MM)

$9.49

$

In Stock, only 1 left!

0

19

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$9.49

$

In Stock, Qty 11

0

19

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$9.49

$

In Stock, Qty 11

0

20

Honda 91301-028-000

O-RING (27X2.0)

$3.99

$

Usually ships in 3-6 days

0

21

Honda 93412-06012-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X12)

$

$

Currently unavailable

22

Honda 94071-08080

NUT-WASHER (8MM)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

24

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

25

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

25

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

26

Honda 95730-08050-08

BOLT, FLANGE (8X50) (NOT AVAILABLE)

$

$

Currently unavailable

27

Honda 98076-54716

SPARK PLUG (BR-4HS) (NGK)

$3.99

$

In Stock, Qty 7

0

27

Honda 98076-54720

SPARK PLUG (W14F-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0

27

Honda 98076-54757

SPARK PLUG (W14FR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0
