EB2800i A (EAAA) - Honda Generator, Made in USA (SN: EAAA-1000001 - EAAA-9999999) OIL PAN@OIL LEVEL SWITCH Parts Diagram

Generator, Made in USA

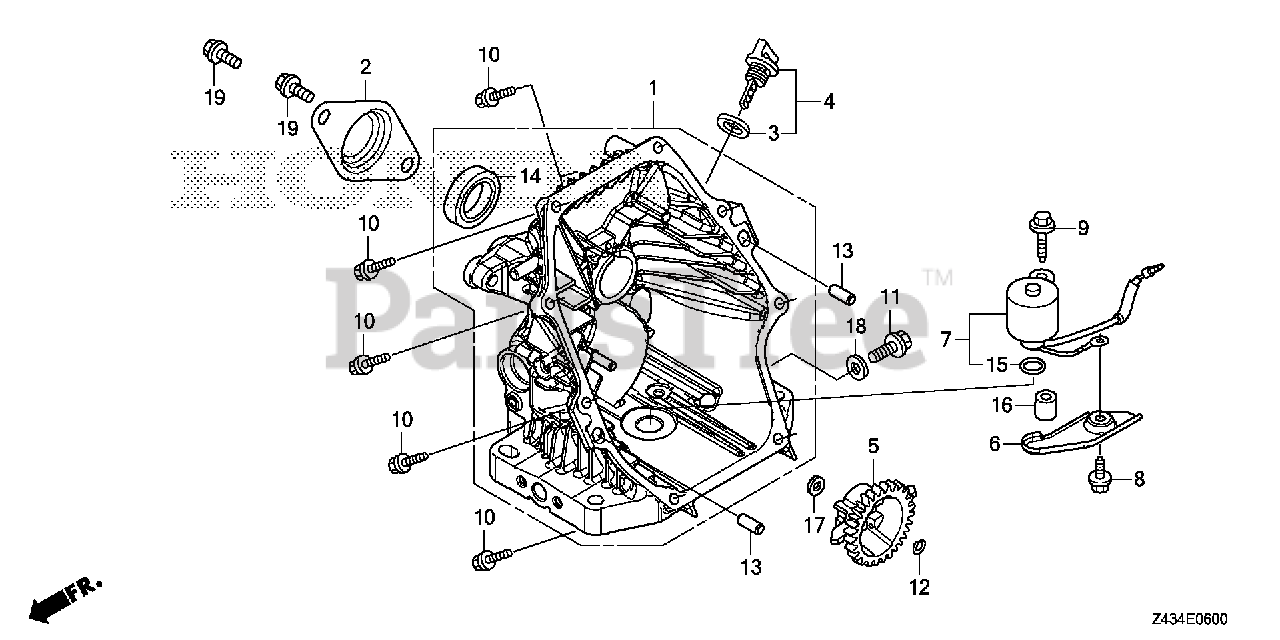

OIL PAN@OIL LEVEL SWITCH Parts Diagram

  • Title
1

Honda 11300-Z8C-D00

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$82.99

$

Usually ships in 3-6 days

0

2

Honda 11327-Z8C-D00

GUARD, SHAFT

$9.49

$

Usually ships in 3-6 days

0

3

Honda 15625-Z2L-801

GASKET, OIL FILLER CAP (NOT AVAILABLE)

$

$

Not available

4

Honda 15650-Z1A-000

GAUGE ASSY., OIL LEVEL

$0.99

$

In Stock, Qty 5

0

5

Honda 16512-ZL8-000

HOLDER, GOVERNOR WEIGHT

$5.49

$

In Stock, Qty 12

0

6

Honda 35419-ZL8-000

PROTECTOR, SWITCH

$9.99

$

Usually ships in 3-6 days

0

7

Honda 35480-ZL8-813

SEE PART DETAILS - PRI; SWITCH, OIL LEVEL

$25.99

$

Usually ships in 3-6 days

0

8

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

9

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

$3.99

$

In Stock, Qty 8

0

10

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

11

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$5.49

$

In Stock, Qty 11

0

12

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

13

Honda 90701-Z8B-000

PIN, DOWEL (8X20)

$0.99

$

In Stock, Qty 8

0

14

Honda 91202-ZL8-003

OIL SEAL (28X41.25X6) (Honda Code 5581046).

$7.49

$

In Stock, Qty 16

0

15

Honda 91302-ZL8-003

O-RING (11.8X2.4)

$1.49

$

In Stock, only 2 left!

0

16

Honda 91501-ZL8-000

COLLAR (6.6X13.8X14.5)

$3.49

$

In Stock, only 2 left!

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

18

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 20+

0

19

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2411015).

$2.49

$

Usually ships in 3-6 days

0
