EB2800i A (EAAA) - Honda Generator, Made in USA (SN: EAAA-1000001 - EAAA-9999999) CONTROL PANEL (1) Parts Diagram

Generator, Made in USA

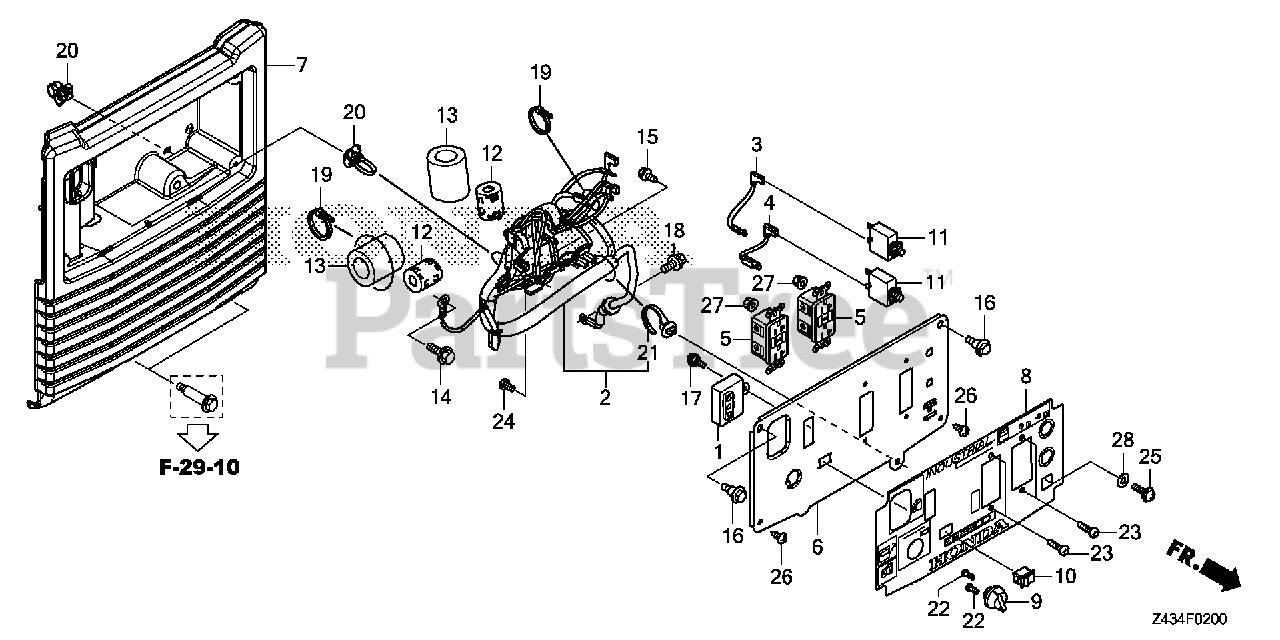

CONTROL PANEL (1) Parts Diagram

  • Title

1

Honda 30585-ZS9-A02

SEE PART DETAILS - PRI; IGNITION UNIT

$109.99

$

Usually ships in 3-6 days

0

2

Honda 32150-Z43-B30

WIRE HARNESS ASSY., CONTROL

$64.99

$

Usually ships in 3-6 days

0

3

Honda 32221-Z43-A30

WIRE, TERMINAL (200MM)

$2.49

$

Usually ships in 3-6 days

0

4

Honda 32221-Z43-B30

WIRE, TERMINAL (150MM)

$2.49

$

Usually ships in 3-6 days

0

5

Honda 32330-Z43-B31

RECEPTACLE (20A/125V) (GFCI)

$

$

Not available

6

Honda 32345-Z43-B30

PANEL, CONTROL

$284.99

$

Usually ships in 3-6 days

0

7

Honda 32356-Z43-B30ZA

CASE, CONTROL PANEL *R280* (POWER RED)

$23.99

$

Usually ships in 3-6 days

0

8

Honda 32366-Z43-B30

MARK, CONTROL PANEL

$9.99

$

Usually ships in 3-6 days

0

9

Honda 35120-Z11-E01

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

$19.99

$

Usually ships in 3-6 days

0

10

Honda 36214-Z43-B31

SWITCH, AUTO THROTTLE

$5.99

$

Usually ships in 3-6 days

0

11

Honda 38240-Z43-B30

PROTECTOR, CIRCUIT (20A) (WHITE)

$22.99

$

Usually ships in 3-6 days

0

12

Honda 38398-YM2-B50

FILTER, SUB NOISE (AC)

$36.99

$

Usually ships in 3-6 days

0

13

Honda 38398-Z07-C60

SUPPORTER, FILTER

$5.49

$

Usually ships in 3-6 days

0

14

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

15

Honda 90031-875-000

SCREW, TAPPING (5X12)

$4.49

$

Usually ships in 3-6 days

0

16

Honda 90101-Z43-B30

BOLT, CONTROL PANEL

$0.99

$

Usually ships in 3-6 days

0

17

Honda 90108-MN0-000

SCREW, PAN (5X13)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90153-SE0-003

BOLT, GROUND (6X12) (SN)

$0.99

$

Usually ships in 3-6 days

0

19

Honda 90672-Z43-B30

TIE, CABLE

$0.99

$

Usually ships in 3-6 days

0

20

Honda 91452-Z43-B30

CLIP, WIRE HARNESS

$0.99

$

Usually ships in 3-6 days

0

21

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0

22

Honda 93500-03008-3J

SCREW, PAN (3X8)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 93500-04010-0H

SCREW, PAN (4X10)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 93500-05008-3J

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 93500-05016-3J

SCREW, PAN (5X16)

$0.99

$

Usually ships in 3-6 days

0

26

Honda 93913-25210

SCREW, TAPPING (5X12)

$0.99

$

Usually ships in 3-6 days

0

27

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 8

0

28

Honda 94101-05000

SEE PART DETAILS - PRI; WASHER, PLAIN (5MM) (Honda Code 0059055).

$1.49

$

In Stock, only 3 left!

0
