EB2500X K1 AG/B (EZCP) - Honda Generator, Made in Japan (SN: EZCP-1018063 - EZCP-1079999) REAR HOUSING Parts Diagram

Generator, Made in Japan

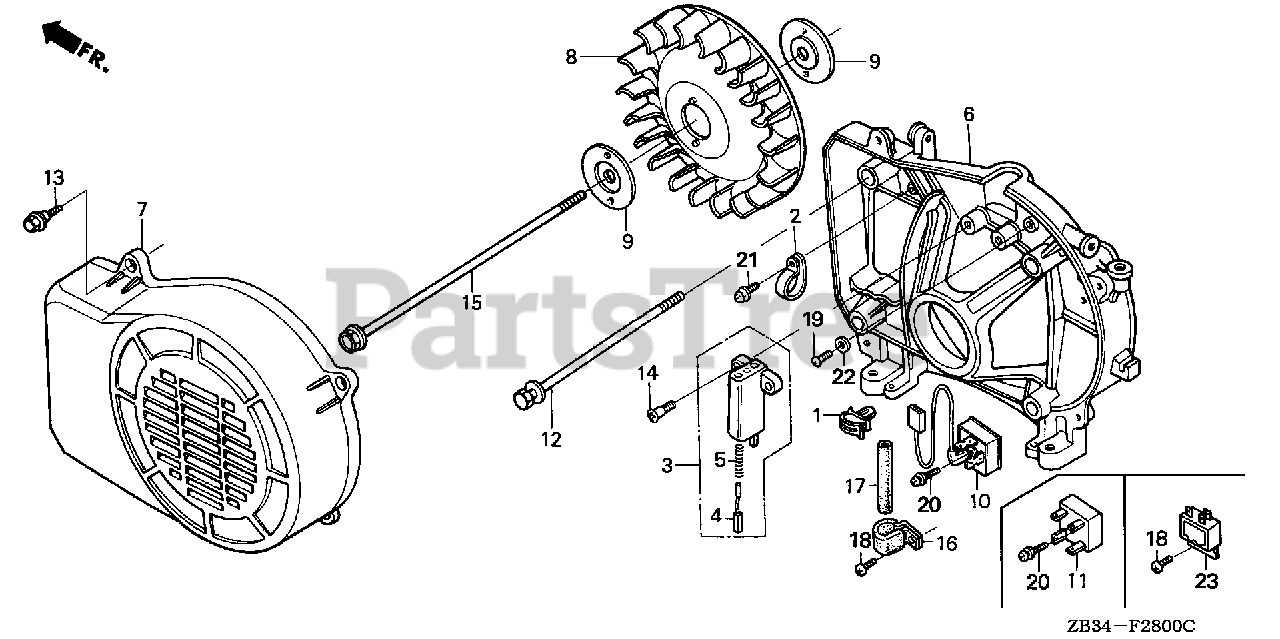

REAR HOUSING Parts Diagram

  • Title

2

Honda 30566-895-000

CLAMP C, CABLE

$4.99

$

Usually ships in 3-6 days

0

3

Honda 31160-ZA5-000

HOLDER ASSY., BRUSH

$78.99

$

In Stock, only 1 left!

0

4

Honda 31162-ZA5-000

BRUSH

$

$

Not available

5

Honda 31163-ZA5-300

SPRING, BRUSH

$2.49

$

Usually ships in 3-6 days

0

6

Honda 31170-ZB2-020

HOUSING, RR.

$252.99

$

Usually ships in 3-6 days

0

7

Honda 31180-ZB3-C01

COVER, GENERATOR END

$49.99

$

Usually ships in 3-6 days

0

8

Honda 31190-ZA5-000

FAN, COOLING

$

$

Not available

9

Honda 31191-ZA5-000

PLATE, FAN

$8.49

$

Usually ships in 3-6 days

0

12

Honda 90102-ZB3-C01

BOLT, FLANGE (6X147)

$8.49

$

Usually ships in 3-6 days

0

13

Honda 90015-ZA5-000

BOLT, GENERATOR END COVER

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90018-ZA5-000

BOLT, STATOR COVER SETTING

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90101-ZB3-C01

BOLT, FLANGE (8X185)

$12.99

$

Usually ships in 3-6 days

0

19

Honda 93500-05012-3J

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 93891-05012-00

SCREW-WASHER (5X12)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0
