EB2500X K1 AG/B (EZCP) - Honda Generator, Made in Japan (SN: EZCP-1018063 - EZCP-1079999) PISTON + CRANKSHAFT Parts Diagram

Generator, Made in Japan

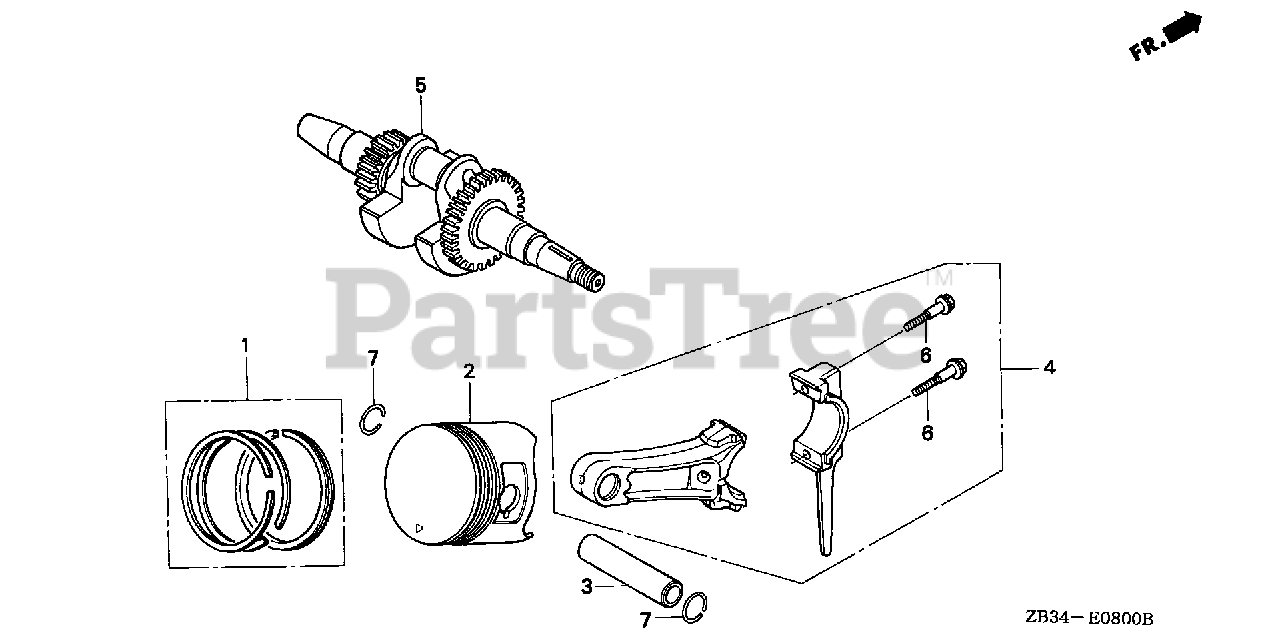

PISTON + CRANKSHAFT Parts Diagram

  • Title

1

Honda 13010-ZF1-023

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TEIKOKU)

Note: Use up to Engine SN 4733210.

$33.99

$

In Stock, only 1 left!

0

1

Honda 13010-ZH8-941

RING SET, PISTON (STD.) (TEIKOKU)

Note: Use from Engine SN 4733211 to 7603338.

$42.99

$

Usually ships in 3-6 days

0

1

Honda 13010-ZL0-003

RING SET, PISTON (STD) (TEIKOKU)

Note: Use from Engine SN 7603339.

$54.99

$

In Stock, only 2 left!

0

1

Honda 13010-ZL0-004

RING SET, PISTON (STD.) (NIPPON)

Note: Use from Engine SN 7603339.

$35.99

$

In Stock, only 2 left!

0

1

Honda 13011-ZF1-023

SEE PART DETAILS - PRI; RING SET, PISTON (0.25) (TEIKOKU)

Note: (Optional). Use up to Engine SN 4733210.

$46.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZH8-941

RING SET, PISTON (0.25) (TEIKOKU)
(Superseded to 13011-ZH8-942)

Note: (Optional). Use from Engine SN 4733211 to 7603338.

$

$

Not available

1

Honda 13011-ZH8-942

RING SET, PISTON (0.25) (NIPPON)

Note: (Optional). Use from Engine SN 4733211 to 7603338.

$

$

Not available

1

Honda 13011-ZL0-003

RING SET, PISTON (0.25) (TEIKOKU)

Note: (Optional). Use from Engine SN 7603339.

$60.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZL0-004

RING SET, PISTON (0.25) (NIPPON)

Note: (Optional). Use from Engine SN 7603339.

$

$

Not available

1

Honda 13012-ZF1-023

SEE PART DETAILS - PRI; RING SET, PISTON (0.50) (TEIKOKU)

Note: (Optional). Use up to Engine SN 4733210.

$

$

Not available

1

Honda 13012-ZH8-941

SEE PART DETAILS - SUP; RING SET, PISTON (0.50) (TEIKOKU)
(Superseded to 13012-ZH8-942)

Note: (Optional). Use from Engine SN 4733211 to 7603338.

$

$

Not available

1

Honda 13012-ZH8-942

SEE PART DETAILS - PRI; RING SET, PISTON (0.50) (NIPPON)

Note: (Optional). Use from Engine SN 4733211 to 7603338.

$

$

Not available

1

Honda 13012-ZL0-003

RING SET, PISTON (0.50) (TEIKOKU)

Note: (Optional). Use from Engine SN 7603339.

$60.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZL0-004

RING SET, PISTON (0.50) (NIPPON)

Note: (Optional). Use from Engine SN 7603339.

$

$

Not available

1

Honda 13013-ZF1-023

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) (TEIKOKU)
(Superseded to 13013-ZF1-024)

Note: (Optional). Use up to Engine SN 4733210.

$

$

Not available

1

Honda 13013-ZF1-024

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (NIPPON) (NOT AVAILABLE)

Note: (Optional). Use up to Engine SN 4733210.

$

$

Not available

1

Honda 13013-ZH8-941

RING SET, PISTON (0.75) (TEIKOKU)

Note: (Optional). Use from Engine SN 4733211 to 7603338.

$42.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZH8-942

RING SET, PISTON (0.75) (NIPPON)

Note: (Optional). Use from Engine SN 4733211 to 7603338.

$44.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZL0-003

RING SET, PISTON (0.75) (TEIKOKU)

Note: (Optional). Use from Engine SN 7603339.

$60.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZL0-004

RING SET, PISTON (0.75) (NIPPON)

Note: (Optional). Use from Engine SN 7603339.

$39.99

$

In Stock, only 1 left!

0

2

Honda 13101-ZH8-010

SEE PART DETAILS - PRI; PISTON (STD)

$45.99

$

In Stock, only 1 left!

0

2

Honda 13102-ZH8-010

PISTON (0.25)

Note: (Optional).

$45.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZH8-000

SEE PART DETAILS - SUP; PISTON (0.50)

Note: (Optional). Use up to Engine SN 7603338.

$

$

Not available

2

Honda 13103-ZH8-010

SEE PART DETAILS - PRI; PISTON (0.50)

Note: (Optional). Use from Engine SN 7603339.

$45.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZH8-000

PISTON (0.75)
(Superseded to 13104-ZH8-010)

Note: (Optional). Use up to Engine SN 7603338.

$45.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZH8-010

PISTON (0.75)

Note: (Optional). Use from Engine SN 7603339.

$45.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZE1-000

PIN, PISTON

$12.99

$

Usually ships in 3-6 days

0

4

Honda 132A0-ZE1-000

ROD ASSY., CONNECTING (0.25 LOWER SIZE)

Note: (Optional).

$

$

Not available

4

Honda 13200-ZE1-010

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (STD)
(Superseded to 13200-Z0T-800)

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-Z0T-800

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (TH)
(Superseded to 13200-Z4V-900)

$13.99

$

In Stock, only 1 left!

0

5

Honda 13310-ZB2-000

CRANKSHAFT

$280.99

$

Usually ships in 3-6 days

0

6

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$3.99

$

In Stock, only 2 left!

0

7

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

$1.49

$

In Stock, Qty 20+

0
