EB2500X K1 AG/B (EZCP) - Honda Generator, Made in Japan (SN: EZCP-1018063 - EZCP-1079999) MUFFLER Parts Diagram

Generator, Made in Japan

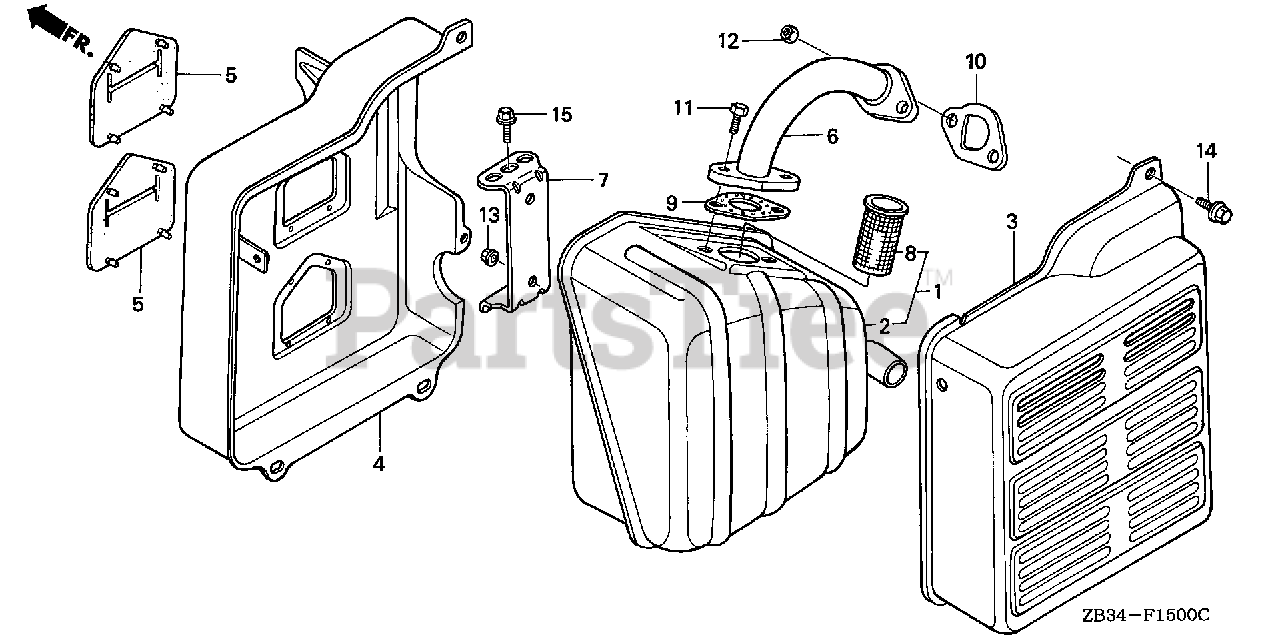

MUFFLER Parts Diagram

  • Title

2

Honda 18310-ZB3-C00

SEE PART DETAILS - SUP; MUFFLER

$

$

Not available

2

Honda 18310-ZB3-C01

SEE PART DETAILS - PRI; MUFFLER

$168.99

$

Usually ships in 3-6 days

0

3

Honda 18320-ZB2-000

PROTECTOR, MUFFLER (OUTER)

$84.99

$

Usually ships in 3-6 days

0

4

Honda 18325-ZB2-000

PROTECTOR, MUFFLER (INNER)

$108.99

$

Usually ships in 3-6 days

0

5

Honda 18329-ZB2-000

SEAL, MUFFLER PROTECTOR

$13.99

$

Usually ships in 3-6 days

0

6

Honda 18330-ZB2-000

PIPE, EX.

$41.99

$

Usually ships in 3-6 days

0

7

Honda 18338-ZB3-E30

STAY, MUFFLER

$21.99

$

Usually ships in 3-6 days

0

8

Honda 18355-898-630

ARRESTER, SPARK

$24.99

$

Usually ships in 3-6 days

0

9

Honda 18381-ZE1-800

SEE PART DETAILS - SUP; GASKET, MUFFLER
(Superseded to 18381-ZE1-801)

$4.99

$

Usually ships in 3-6 days

0

10

Honda 18381-ZH8-800

SEE PART DETAILS - SUP; GASKET, MUFFLER
(Superseded to 18381-ZH8-801)

$4.49

$

In Stock, Qty 7

0

10

Honda 18381-ZH8-801

SEE PART DETAILS - PRI; GASKET, MUFFLER

$4.49

$

In Stock, Qty 7

0

11

Honda 92101-08020-0A

BOLT, HEX. (8X20)

$2.49

$

Usually ships in 3-6 days

0

12

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 6

0

13

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

14

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

15

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0
