EB2500X K1 AG/B (EZCP) - Honda Generator, Made in Japan (SN: EZCP-1018063 - EZCP-1079999) FRAME Parts Diagram

Generator, Made in Japan

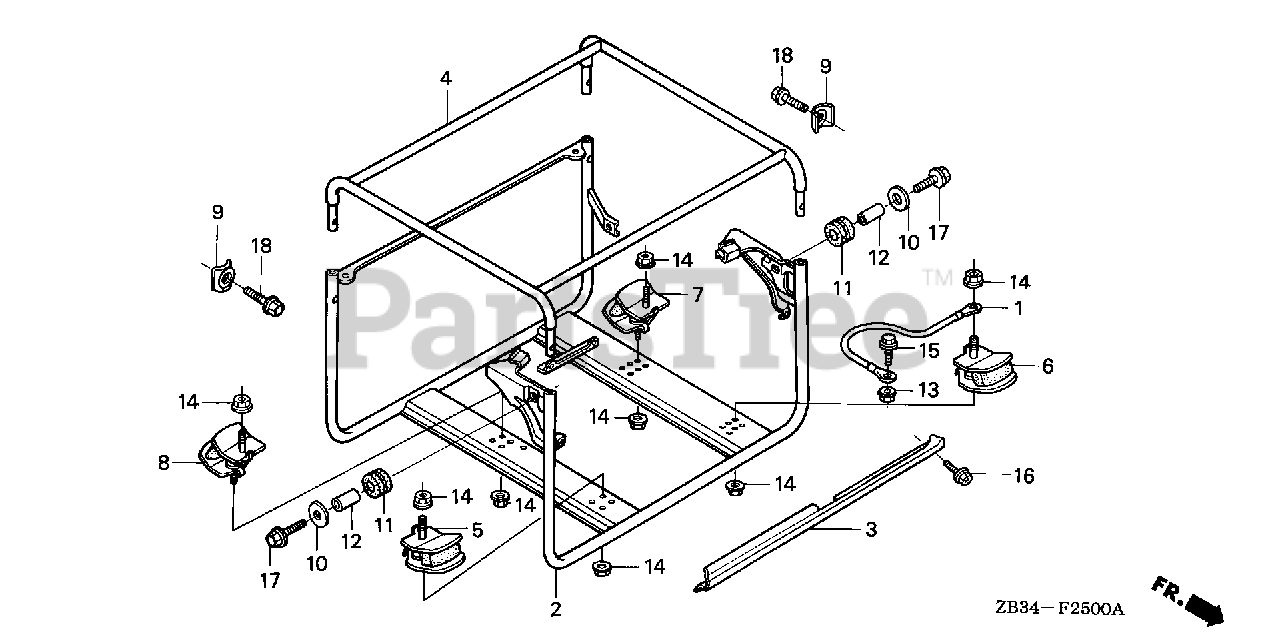

FRAME Parts Diagram

  • Title

1

Honda 32610-899-000

CABLE, GROUND

$15.99

$

Usually ships in 3-6 days

0

2

Honda 50310-ZB2-701ZA

FRAME (LOWER) *NH105* (MAT BLACK)

$

$

Not available

3

Honda 50315-ZB2-700ZA

CHANNEL, FR. *NH105* (MAT BLACK)

$62.99

$

Usually ships in 3-6 days

0

4

Honda 50350-ZB2-701

FRAME (UPPER)

$260.99

$

Usually ships in 3-6 days

0

5

Honda 68327-ZB3-E30

RUBBER, RR. (LOWER)

$

$

Not available

6

Honda 68325-ZB3-E30

RUBBER, FR. (LOWER)

$33.99

$

Usually ships in 3-6 days

0

7

Honda 68326-ZB2-000

RUBBER, FR. (LOWER)

$41.99

$

Usually ships in 3-6 days

0

8

Honda 68327-ZB2-000

RUBBER, RR. (LOWER)

$41.99

$

Usually ships in 3-6 days

0

9

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 9

0

10

Honda 91412-538-000

WASHER, FLAT (20MM)

Note: Use up to Frame SN 1026901.

$

$

Not available

11

Honda 90852-898-000

RUBBER, CONTROL BOX

$5.49

$

In Stock, only 2 left!

0

12

Honda 91552-898-000

COLLAR, CONTROL BOX

Note: Use up to Frame SN 1026901.

$5.49

$

Usually ships in 3-6 days

0

13

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

14

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 7

0

16

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

17

Honda 95701-06020-00

BOLT, FLANGE (6X20)

Note: Use up to Frame SN 1026901.

$2.49

$

In Stock, Qty 6

0

17

Honda 90102-ZS2-H61

BOLT, ADJUSTING (6X20)

Note: Use from Frame SN 1026902.

$

$

Not available

18

Honda 90101-ZB1-G01

BOLT, FLANGE (8X14)

$4.49

$

Usually ships in 3-6 days

0
