EB2500X K1 AG/B (EZCP) - Honda Generator, Made in Japan (SN: EZCP-1018063 - EZCP-1079999) FLYWHEEL + IGNITION COIL Parts Diagram
Generator, Made in Japan

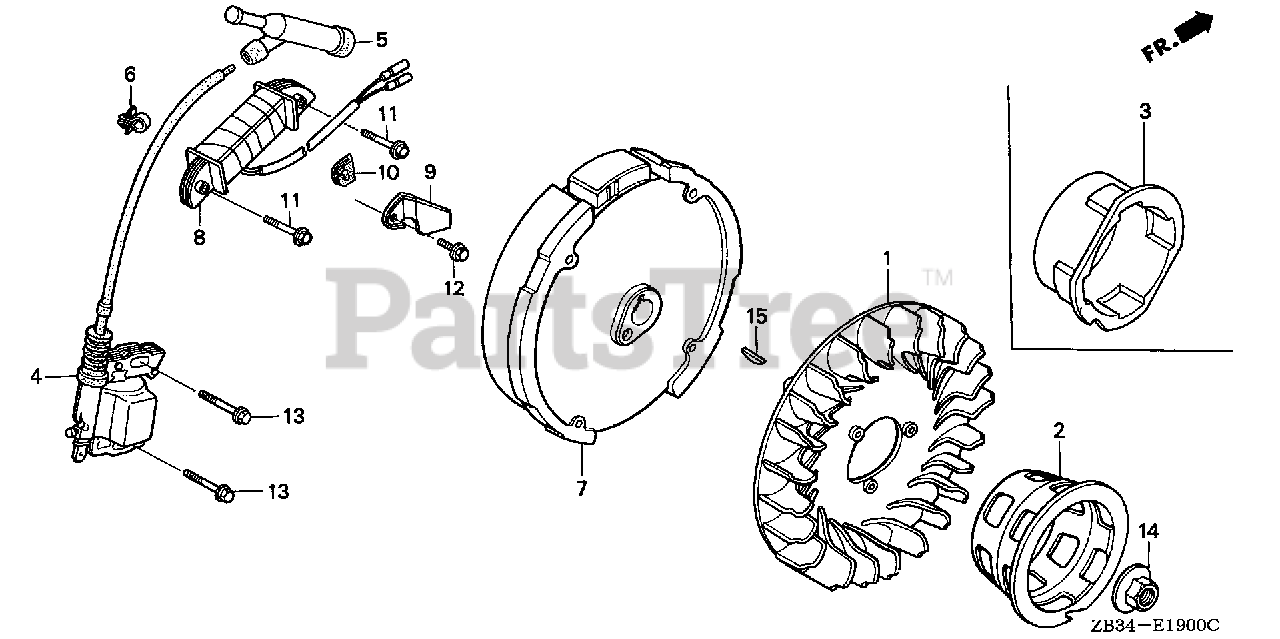

FLYWHEEL + IGNITION COIL Parts Diagram
Honda 19511-ZE1-000
FAN, COOLING
$31.99
$
In Stock, only 1 left!
Honda 28451-ZH8-003
PULLEY, STARTER
$35.99
$
Usually ships in 3-6 days
Honda 30500-ZE1-073
SEE PART DETAILS - PRI; COIL ASSY., IGNITION
$109.99
$
In Stock, only 1 left!
Honda 30700-ZE1-013
CAP ASSY., NOISE SUPPRESSOR (NICHIWA Y-EZ RTFM256)
$24.99
$
In Stock, Qty 6
Honda 31100-ZE1-811
FLYWHEEL (LAMP)
$198.99
$
Usually ships in 3-6 days
Honda 31510-ZB2-003
COIL ASSY., BACK-UP
$75.99
$
In Stock, only 1 left!
Honda 31511-ZE1-000
CLAMP, WIRE
$4.99
$
In Stock, only 2 left!
Honda 31512-ZE1-000
GROMMET, WIRE
$3.49
$
Usually ships in 3-6 days
Honda 90015-883-000
BOLT, FLANGE (6X28) (CT200)
$3.99
$
In Stock, Qty 9
Honda 90019-883-000
BOLT, FLANGE (5X10)
$3.49
$
Usually ships in 3-6 days
Honda 90121-952-000
BOLT, FLANGE (6X25) (CT200)
$2.99
$
In Stock, Qty 20+
Honda 90201-878-003
NUT, SPECIAL (14MM)
$7.99
$
In Stock, only 1 left!
Honda 13331-357-000
KEY, SPECIAL WOODRUFF (25X18)
$5.49
$
In Stock, only 2 left!
