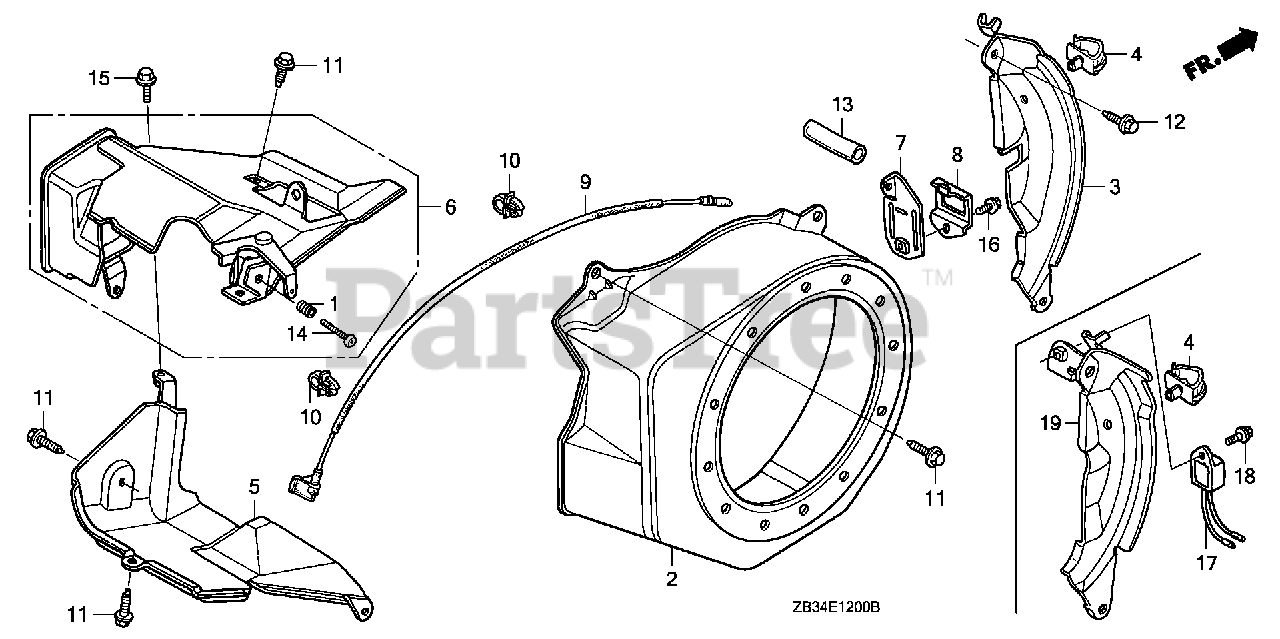

EB2500X K1 AG/B (EZCP) - Honda Generator, Made in Japan (SN: EZCP-1018063 - EZCP-1079999) FAN COVER Parts Diagram

Generator, Made in Japan

FAN COVER Parts Diagram

  • Title
1

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$5.49

$

In Stock, Qty 7

0

2

Honda 19610-ZB2-010ZC

COVER, FAN *NH1* (BLACK)

$86.99

$

Usually ships in 3-6 days

0

3

Honda 19612-ZH8-830

PLATE, SIDE (ALERT & LAMP)

Note: Use up to Engine SN 4795905.

$

$

Not available

3

Honda 19612-ZH8-821

PLATE, SIDE (LAMP)

Note: Use from Engine SN 4795906 to 5372718.

$10.99

$

Usually ships in 3-6 days

0

4

Honda 19613-ZE1-000

CLAMP, CORD

Note: Use up to Engine SN 5313298.

$1.99

$

Usually ships in 3-6 days

0

4

Honda 19613-ZE1-010

CLAMP, CORD

Note: Use from Engine SN 5313299 to 5388112.

$1.99

$

Usually ships in 3-6 days

0

4

Honda 19613-ZE1-020

CLAMP, CORD

Note: Use from Engine SN 5388113.

$1.99

$

Usually ships in 3-6 days

0

5

Honda 19630-ZB2-000

SHROUD (LOWER)

$22.99

$

Usually ships in 3-6 days

0

6

Honda 19640-ZB2-010

SHROUD ASSY. (UPPER)

$36.99

$

In Stock, only 1 left!

0

7

Honda 30561-ZB2-000

BASE, WIRE CLIP

$11.99

$

Usually ships in 3-6 days

0

8

Honda 30562-ZB2-000

COVER, WIRE CLIP

$7.49

$

Usually ships in 3-6 days

0

9

Honda 36101-ZB2-010

WIRE, STOP SWITCH (395MM)

$12.99

$

Usually ships in 3-6 days

0

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

12

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$2.99

$

In Stock, only 2 left!

0

13

Honda 91406-ZB3-740

TUBE, CORD

$5.49

$

Usually ships in 3-6 days

0

14

Honda 93500-05035-0A

SCREW, PAN (5X35)

$1.49

$

In Stock, only 3 left!

0

15

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$4.49

$

In Stock, Qty 20+

0

16

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$4.49

$

In Stock, Qty 20+

0

17

Honda 34150-ZH7-003

SEE PART DETAILS - SUP; ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

Note: Use from Engine SN 5372719.

$53.99

$

In Stock, only 1 left!

0

17

Honda 34150-ZH7-013

SEE PART DETAILS - PRI; ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

Note: Use from Engine SN 5372719.

$53.99

$

In Stock, only 1 left!

0

17

Honda 34150-ZH7-023

SEE PART DETAILS - PRI; ALERT UNIT, OIL

Note: Use from Engine SN 5372719.

$53.99

$

In Stock, only 1 left!

0

18

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: Use from Engine SN 5372719.

$4.49

$

In Stock, Qty 20+

0

19

Honda 19611-ZH8-820

PLATE, SIDE (ALERT & LAMP)

Note: Use from Engine SN 5372719.

$11.99

$

Usually ships in 3-6 days

0
