EB2500X K1 AG/B (EZCP) - Honda Generator, Made in Japan (SN: EZCP-1018063 - EZCP-1079999) CARBURETOR Parts Diagram

Generator, Made in Japan

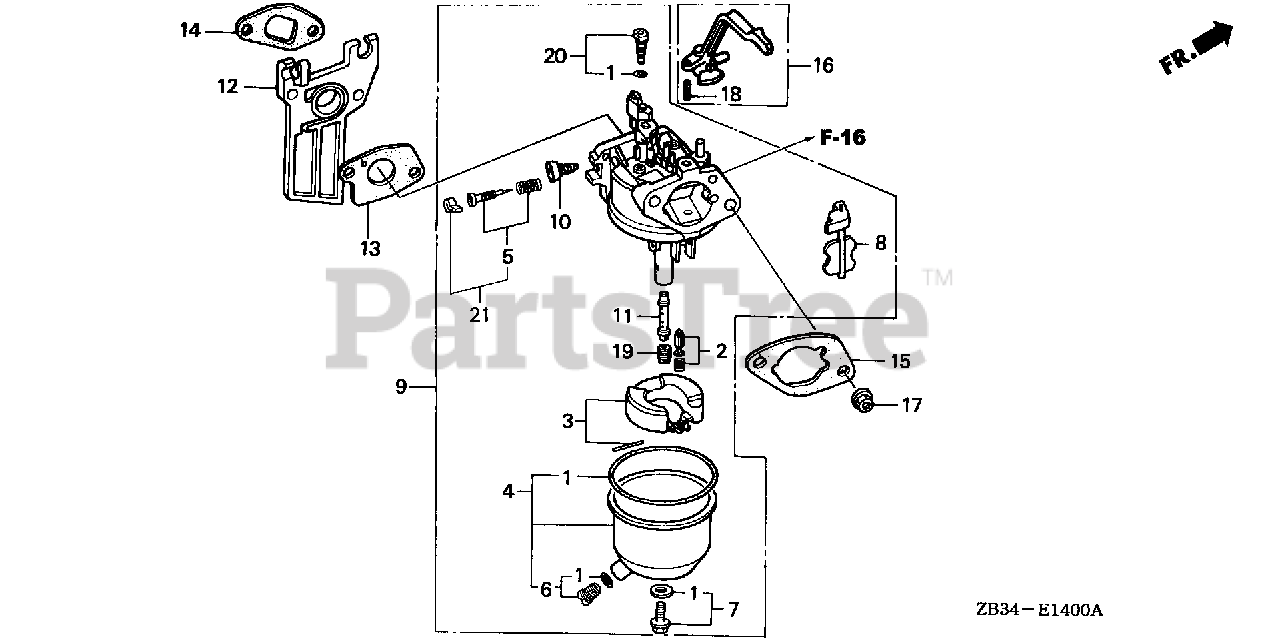

CARBURETOR Parts Diagram

  • Title
1

Honda 16010-ZB1-015

GASKET SET (CARBURETOR NO.)

$18.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$28.99

$

Usually ships in 3-6 days

0

3

$29.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE1-811

CHAMBER SET, FLOAT (CARBURETOR NO.)
(Superseded to 16015-ZE0-831)

Note: Use up to Engine SN BE67A A.

$37.99

$

In Stock, only 2 left!

0

4

Honda 16015-ZE0-831

CHAMBER SET, FLOAT

Note: Use from Engine SN BE67A B.

$37.99

$

In Stock, only 2 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

8

$37.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZH8-E81

CARBURETOR ASSY. (BE67A B)

$89.99

$

In Stock, only 1 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZH8-E80

NOZZLE, MAIN

$28.99

$

Usually ships in 3-6 days

0

12

Honda 16211-ZE1-000

INSULATOR, CARBURETOR

$23.99

$

In Stock, only 1 left!

0

13

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

14

Honda 16212-ZH8-800

GASKET, INSULATOR

$3.49

$

In Stock, Qty 20+

0

15

Honda 16269-ZE1-800

GASKET, AIR CLEANER

$2.99

$

In Stock, only 2 left!

0

16

Honda 16610-ZB2-000

LEVER, CHOKE

$8.99

$

Usually ships in 3-6 days

0

17

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

18

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, Qty 5

0

19

Honda 99101-ZH8-0720

JET, MAIN (#72)

Note: (Optional).

$8.49

$

In Stock, only 1 left!

0

19

Honda 99101-ZH8-0750

JET, MAIN (#75)

$8.49

$

In Stock, only 1 left!

0

19

Honda 99101-ZK7-0700

SEE PART DETAILS - PRI; JET, MAIN (#70)

Note: (Optional).

$9.99

$

In Stock, Qty 9

0

20

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$22.99

$

In Stock, only 1 left!

0

21

Honda 16016-ZH7-W01

SCREW SET, PILOT

$20.99

$

In Stock, only 2 left!

0
