EB2500X K1 AG/B (EZCP) - Honda Generator, Made in Japan (SN: EZCP-1018063 - EZCP-1079999) CAMSHAFT Parts Diagram

Generator, Made in Japan

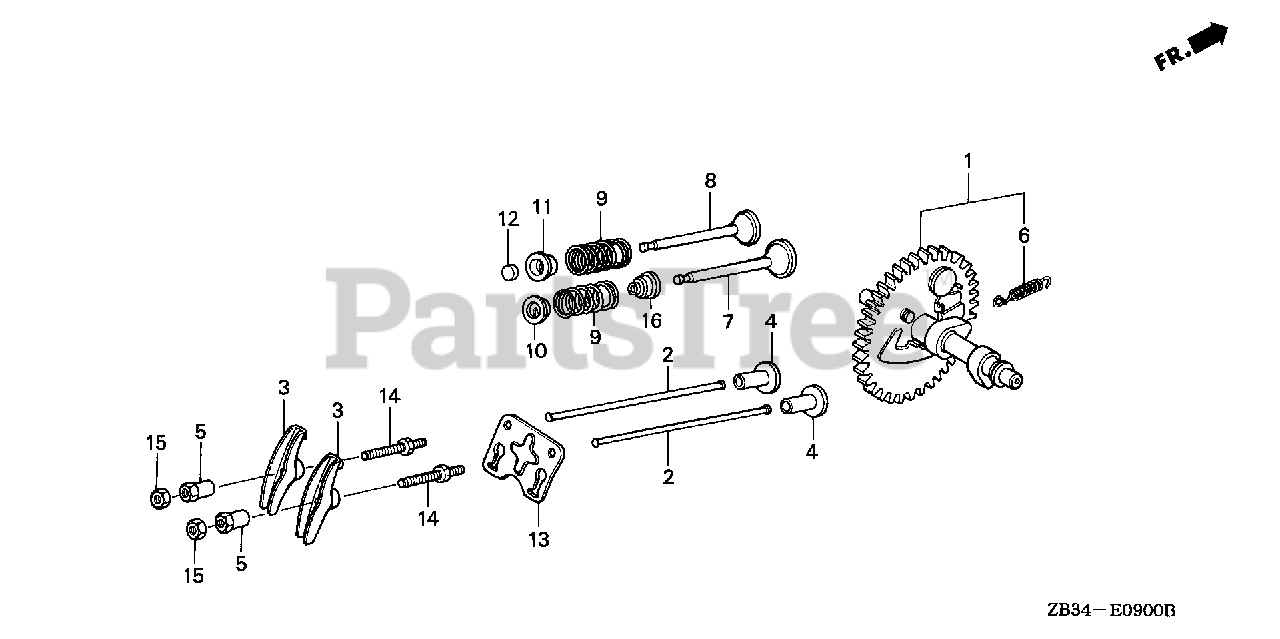

CAMSHAFT Parts Diagram

  • Title

1

Honda 14100-ZE1-812

SEE PART DETAILS - PRI; CAMSHAFT ASSY.

$154.99

$

Usually ships in 3-6 days

0

2

Honda 14410-ZE1-010

SEE PART DETAILS - PRI; ROD, PUSH

$8.49

$

In Stock, only 2 left!

0

3

Honda 14431-ZE1-000

ARM, VALVE ROCKER

$7.99

$

In Stock, only 2 left!

0

4

Honda 14441-ZE1-000

SEE PART DETAILS - SUP; LIFTER, VALVE
(Superseded to 14441-ZE1-010)

Note: Use up to Engine SN 4252173.

$14.99

$

Usually ships in 3-6 days

0

4

Honda 14441-ZE1-010

SEE PART DETAILS - PRI; LIFTER, VALVE

$14.99

$

Usually ships in 3-6 days

0

5

Honda 14451-ZE1-013

PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

$5.99

$

In Stock, Qty 7

0

6

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN

$3.49

$

In Stock, only 2 left!

0

7

Honda 14711-ZF1-000

VALVE, IN.

$20.99

$

Usually ships in 3-6 days

0

8

Honda 14721-ZF1-000

VALVE, EX.
(Superseded to 14721-ZH8-810)

$66.99

$

Usually ships in 3-6 days

0

9

Honda 14751-ZF1-000

SPRING, VALVE

$4.99

$

In Stock, only 2 left!

0

10

Honda 14771-ZE1-000

RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, Qty 16

0

11

Honda 14773-ZE1-000

RETAINER, EX. VALVE SPRING

$10.99

$

In Stock, only 1 left!

0

12

Honda 14781-ZE1-000

ROTATOR, VALVE

$5.99

$

In Stock, only 1 left!

0

13

Honda 14791-ZE1-010

PLATE, PUSH ROD GUIDE

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

$8.49

$

In Stock, only 2 left!

0

15

Honda 90206-ZE1-000

NUT, PIVOT ADJUSTING

$4.49

$

In Stock, Qty 8

0

16

Honda 12209-ZH8-003

SEE PART DETAILS - PRI; SEAL, VALVE STEM

Note: Use from Engine SN 7664037.

$8.99

$

In Stock, only 1 left!

0
