EB2200i T AG (EAJT) - Honda Generator, Made in Thailand (SN: EAJT-1000001 - EAJT-9999999) CONTROL PANEL (8) Parts Diagram

Generator, Made in Thailand

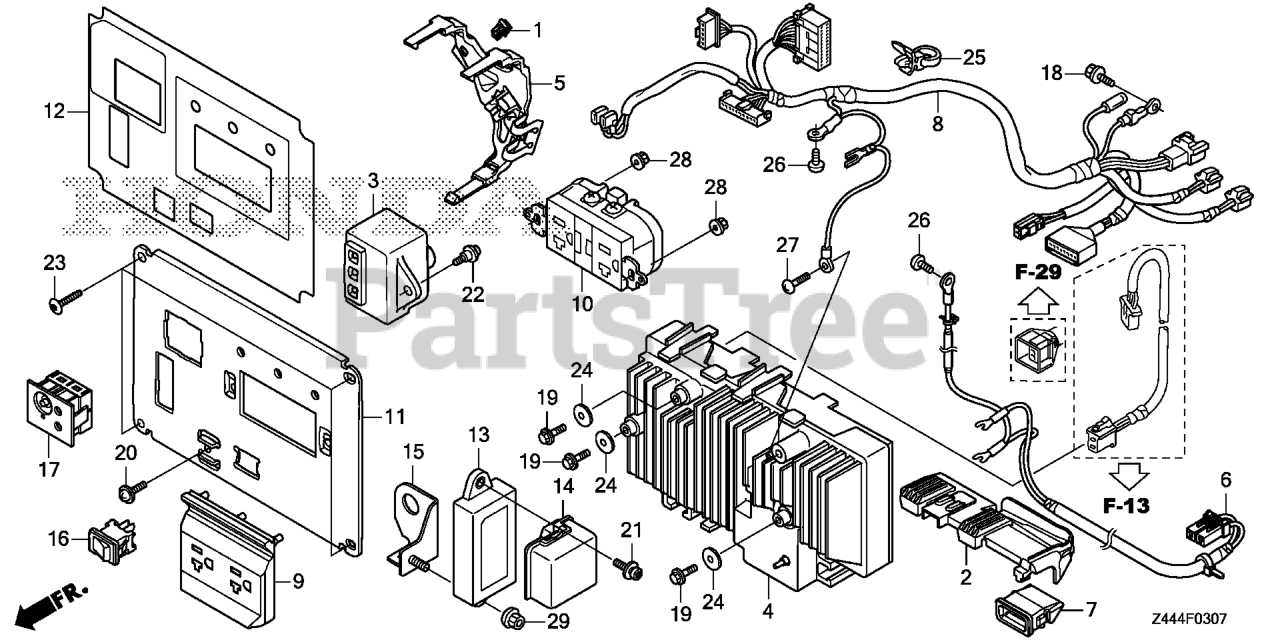

CONTROL PANEL (8) Parts Diagram

  • Title

1

Honda 16731-MEN-A71

CLIP, TUBE

$2.99

$

Usually ships in 3-6 days

0

2

Honda 17533-Z44-A30

RUBBER B, TANK MOUNTING

$5.49

$

Usually ships in 3-6 days

0

3

Honda 30400-Z44-A01

SPARK UNIT

$63.99

$

In Stock, only 4 left!

0

4

Honda 31310-Z44-A32

INVERTER UNIT

$447.99

$

Usually ships in 3-6 days

0

5

Honda 31314-Z44-A30

BRACKET, INVERTER HARNESS

$1.99

$

Usually ships in 3-6 days

0

6

Honda 32105-Z44-J30

SUB-WIRE HARNESS ASSY.

$38.99

$

Usually ships in 3-6 days

0

7

Honda 32137-Z44-A30

COVER, CONNECTOR

$1.49

$

Usually ships in 3-6 days

0

8

Honda 32150-Z44-J30

WIRE HARNESS ASSY., CONTROL
(Superseded to 32150-Z44-J31)

Note: Use up to Frame SN 1020390.

$74.99

$

Usually ships in 3-6 days

0

8

Honda 32150-Z44-J31

HARN, CONTL WIRE

$74.99

$

Usually ships in 3-6 days

0

9

Honda 32320-Z44-F30

COVER, RECEPTACLE (20A-125V)

$6.49

$

Usually ships in 3-6 days

0

10

Honda 32330-Z44-J31

RECEPTACLE (20A-125V) (GFCI)
(Superseded to 32330-Z44-J32)

Note: Use up to Frame SN 1021362.

$139.99

$

In Stock, only 2 left!

0

10

Honda 32330-Z44-J32

RECEPTACLE (20A-125V) (GFCI)

$139.99

$

In Stock, only 2 left!

0

11

Honda 32346-Z44-J30

PANEL, CONTROL

$20.99

$

Usually ships in 3-6 days

0

12

Honda 32366-Z44-J30

MARK, CONTROL PANEL

$58.99

$

Usually ships in 3-6 days

0

13

Honda 35610-Z44-PA0

SENSING UNIT (CO)

$245.99

$

Usually ships in 3-6 days

0

14

Honda 35611-Z44-F30

COVER, SENSING UNIT PROOF (CO)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 35615-Z44-F30

BRACKET, SENSOR UNIT (CO)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 36214-Z11-A01

SWITCH, AUTO-THROTTLE (OTAX)

$27.99

$

In Stock, only 2 left!

0

17

Honda 38530-ZS9-W32

LED ASSY., INDICATER

$37.99

$

Usually ships in 3-6 days

0

18

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90101-P4V-010

BOLT, FLANGE (5X12)

$3.49

$

In Stock, only 2 left!

0

20

Honda 90102-899-003

SCREW, PAN (5X12) (GROUND CABLE)

$4.49

$

Usually ships in 3-6 days

0

21

Honda 90107-ZS9-W30

BOLT-WASHER (5X15) (TORX)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 90108-MN0-000

SCREW, PAN (5X13)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 90133-Z44-F30

SCREW, TAPPING (5X16) (TORX)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 90581-310-000

WASHER, PLAIN (20MM)

$2.99

$

Usually ships in 3-6 days

0

25

Honda 90676-692-000

BAND (100MM) (BLACK)

$9.49

$

Usually ships in 3-6 days

0

26

Honda 93500-05008-3J

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 93500-05010-0H

SEE PART DETAILS - PRI; SCREW, PAN (5X10)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 8

0

29

Honda 94050-05080

NUT, FLANGE (5MM) (Honda Code 0612671).

$0.99

$

In Stock, only 4 left!

0
