EB2000i A (EBCJ) - Honda Generator, Made in Japan (SN: EBCJ-1000001 - EBCJ-9999999) FRONT COVER + SIDE COVER + REAR COVER Parts Diagram

Generator, Made in Japan

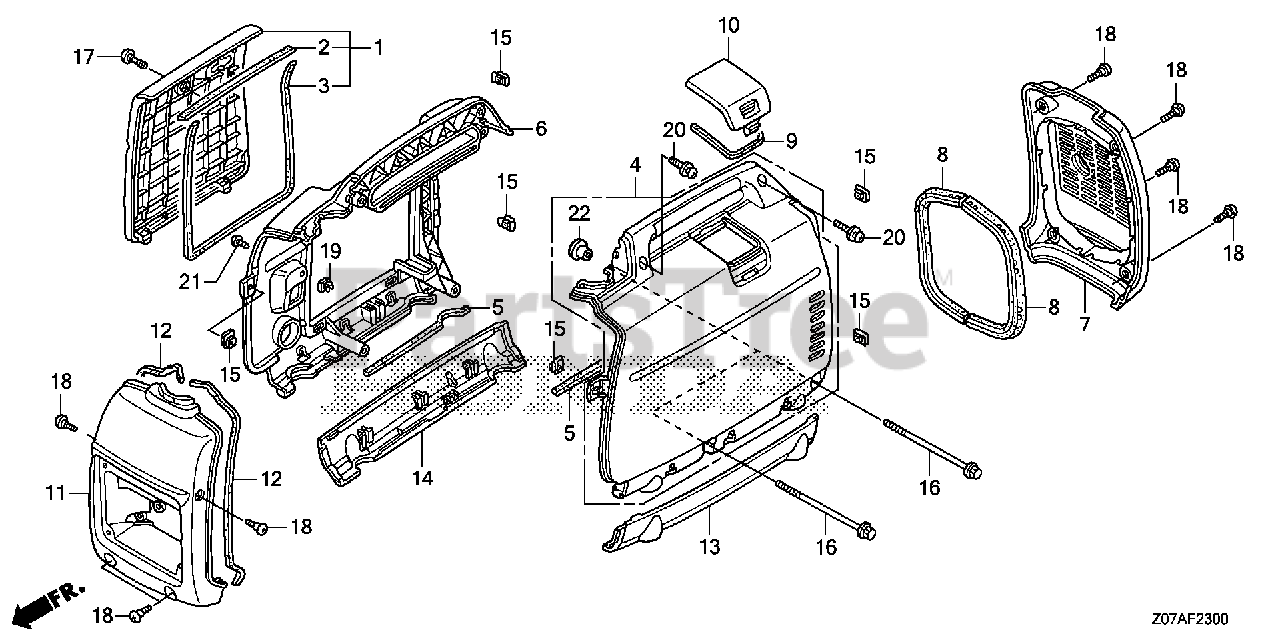

FRONT COVER + SIDE COVER + REAR COVER Parts Diagram

  • Title
1

Honda 63150-Z07-000ZC

COVER ASSY., MAINTENANCE *R280* (POWER RED)

$38.99

$

In Stock, only 1 left!

0

2

Honda 63153-Z07-000

SEAL A, MAINTENANCE COVER

$2.99

$

In Stock, Qty 14

0

3

Honda 63154-Z07-000

SEAL B, MAINTENANCE COVER

$5.49

$

In Stock, only 2 left!

0

4

Honda 63210-Z07-C20ZA

COVER, SIDE *R280* (POWER RED) (L. SIDE)

$106.99

$

Usually ships in 3-6 days

0

5

Honda 63218-Z07-000

SEAL A, SIDE COVER

$2.99

$

In Stock, only 4 left!

0

6

Honda 63220-Z07-C20ZA

SEE PART DETAILS - PRI; COVER, SIDE *R280* (POWER RED) (R. SIDE)

$110.99

$

In Stock, only 1 left!

0

7

Honda 63311-Z07-000ZA

COVER, RR. *NH314* (CONDUCT GRAY)

$68.99

$

In Stock, only 1 left!

0

8

Honda 63318-Z07-000

RUBBER, RR. COVER SEAL

$15.99

$

In Stock, only 2 left!

0

9

Honda 63344-Z07-000

SEAL, PLUG CHECK

$3.49

$

In Stock, Qty 12

0

10

Honda 63347-Z07-000ZC

COVER, PLUG CHECK *R280* (POWER RED)

$10.99

$

Usually ships in 3-6 days

0

11

Honda 63511-Z07-000ZA

COVER, FR. *NH314* (CONDUCT GRAY)

$64.99

$

Usually ships in 3-6 days

0

12

Honda 63512-Z07-000

SEAL, FR. COVER

$3.49

$

In Stock, Qty 13

0

13

Honda 63724-Z07-000ZA

PLATE, SIDE (LOWER) *NH314* (CONDUCT GRAY) (L. SIDE)

$10.99

$

In Stock, Qty 11

0

14

Honda 63729-Z07-000ZA

PLATE, SIDE (LOWER) *NH314* (CONDUCT GRAY) (R. SIDE)

$10.99

$

In Stock, Qty 6

0

15

Honda 84601-HA7-670

NUT, FENDER SETTING

$7.99

$

In Stock, only 2 left!

0

16

Honda 90013-ZB3-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X137)

$10.99

$

In Stock, only 4 left!

0

17

Honda 90102-Z07-003

SCREW, SPECIAL (6X16)

$4.49

$

In Stock, Qty 19

0

18

Honda 90380-GM9-740

SCREW, SPECIAL (6X15)

$1.99

$

In Stock, Qty 20+

0

19

Honda 90652-SA5-670

GROMMET, SCREW (6MM)

$4.49

$

In Stock, only 2 left!

0

20

Honda 93891-06020-07

SCREW-WASHER (6X20)

$1.99

$

In Stock, Qty 7

0

21

Honda 93913-15480

SCREW, TAPPING (5X16) (PO)

$1.49

$

In Stock, Qty 9

0

22

Honda 19619-ZL8-300

COLLAR, FAN COVER

$1.49

$

In Stock, Qty 9

0
