EB2000i A (EBCJ) - Honda Generator, Made in Japan (SN: EBCJ-1000001 - EBCJ-9999999) CONTROL PANEL Parts Diagram

Generator, Made in Japan

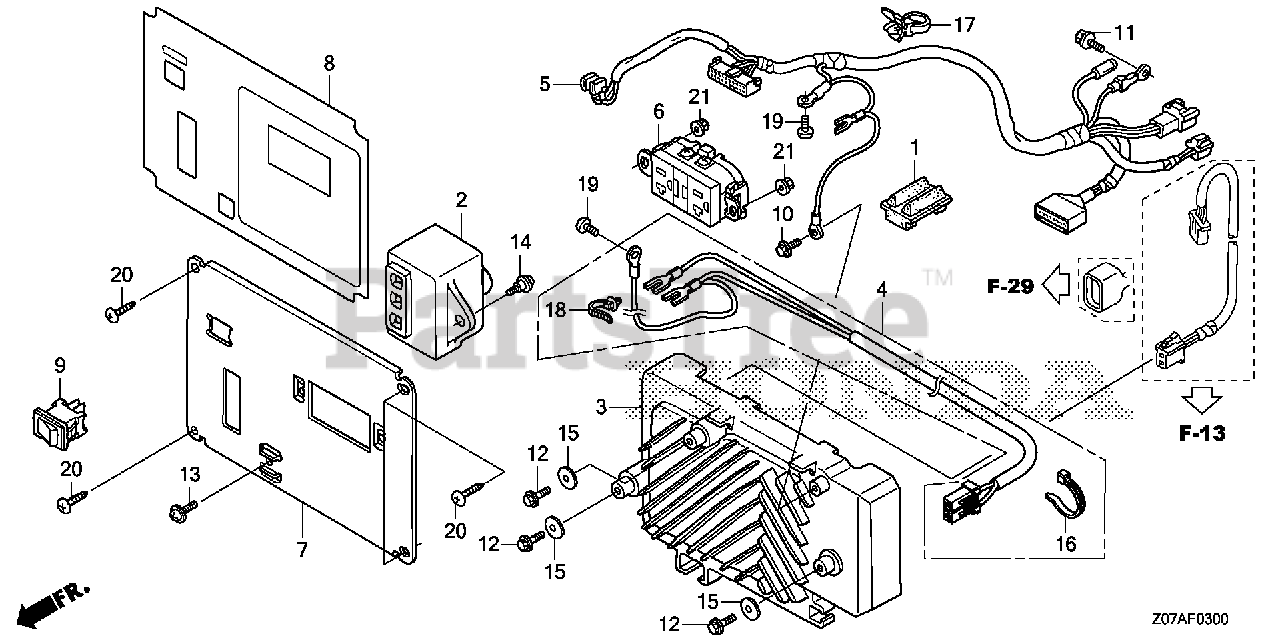

CONTROL PANEL Parts Diagram

  • Title

1

Honda 17533-Z07-000

RUBBER B, TANK MOUNTING

$4.49

$

In Stock, only 1 left!

0

2

Honda 30400-Z07-013

SPARK UNIT
(Superseded to 30400-Z39-C91)

$71.99

$

In Stock, only 2 left!

0

3

Honda 31310-Z07-E21

INVERTER UNIT

$721.99

$

Usually ships in 3-6 days

0

4

Honda 32105-Z07-G30

SUB-WIRE HARNESS ASSY. (EB-A)

$

$

Not available

5

Honda 32150-Z07-G31

SEE PART DETAILS - PRI; WIRE HARNESS ASSY., CONTROL

$92.99

$

Usually ships in 3-6 days

0

6

Honda 32330-Z23-G11

SEE PART DETAILS - SUP; RECEPTACLE (20A-125V) (GFCI)
(Superseded to 32330-Z23-G12)

$

$

Not available

6

Honda 32330-Z23-G12

SEE PART DETAILS - PRI; RECEPTACLE (20A-125V) (GFCI)

$

$

Not available

7

Honda 32346-Z07-G30

PANEL, CONTROL (EB-A)

$93.99

$

Usually ships in 3-6 days

0

8

Honda 32366-Z07-G30

MARK, CONTROL PANEL (EB-A)

$81.99

$

Usually ships in 3-6 days

0

9

Honda 36214-ZS9-A01

SEE PART DETAILS - PRI; SWITCH, AUTO-THROTTLE

$25.99

$

In Stock, only 1 left!

0

10

Honda 90002-892-000

BOLT, FLANGE (5X10)

$1.99

$

In Stock, Qty 5

0

11

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90101-P4V-010

BOLT, FLANGE (5X12)

$3.49

$

In Stock, only 2 left!

0

13

Honda 90102-899-003

SCREW, PAN (5X12)

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90108-MN0-000

SCREW, PAN (5X13)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90581-310-000

WASHER, PLAIN (20MM)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90651-MA6-720

BAND, WIRE HARNESS

$5.99

$

Usually ships in 3-6 days

0

17

Honda 90676-692-000

BAND (100MM) (BLACK)

$9.49

$

Usually ships in 3-6 days

0

18

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0

19

Honda 93500-05008-3J

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 93913-25480

SCREW, TAPPING (5X16) (PO)

$1.49

$

In Stock, Qty 14

0

21

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 8

0
