EB12D AG (ECD) - Honda Generator, Made in Japan (SN: ECD-1000001 - ECD-1009999) WIRE HARNESS Parts Diagram

Generator, Made in Japan

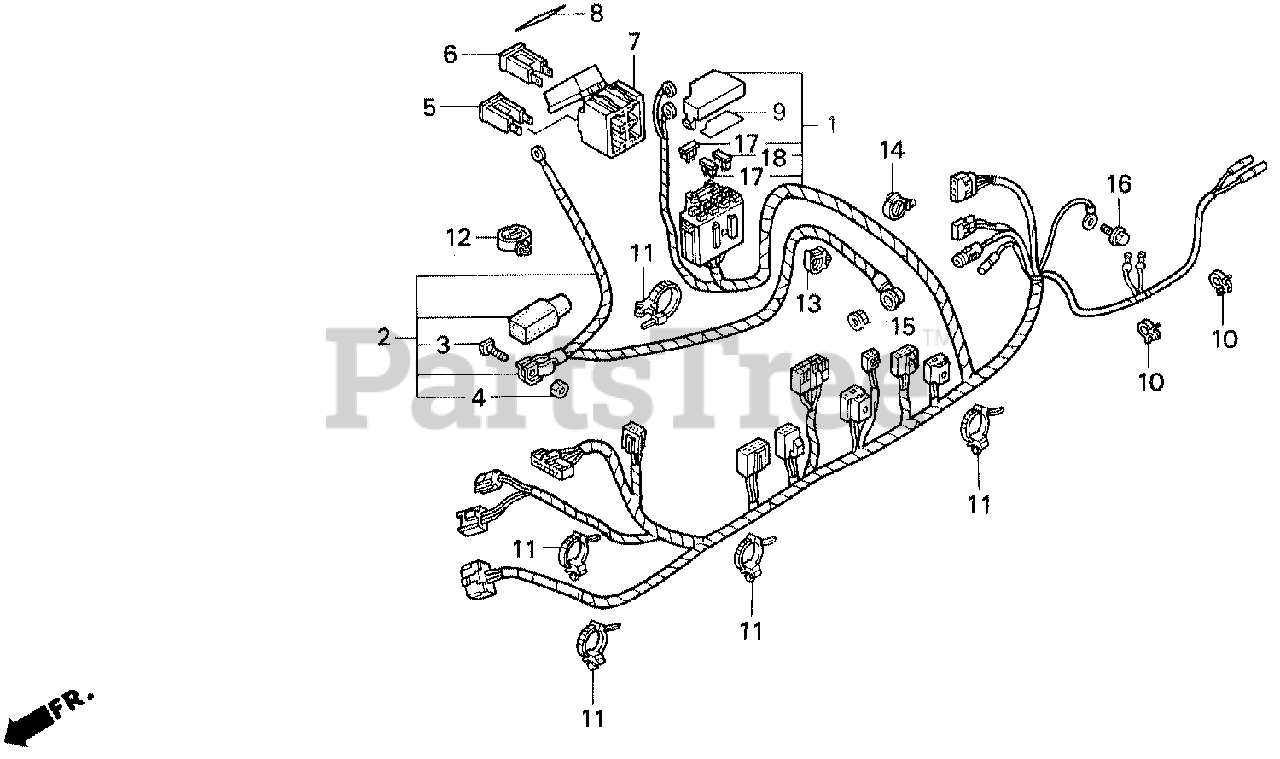

WIRE HARNESS Parts Diagram

  • Title

1

Honda 32100-ZC6-631

WIRE HARNESS ASSY., MAIN

$

$

Not available

2

Honda 32410-ZC6-690

SEE PART DETAILS - SUP; CABLE ASSY., STARTER

$

$

Not available

3

Honda 32601-SA5-003

SEE PART DETAILS - SUP; BOLT, BATTERY TERMINAL (SUMITOMO)

$12.99

$

Usually ships in 3-6 days

0

4

Honda 32602-SA5-003

NUT, BATTERY TERMINAL (SUMITOMO)

$7.99

$

Usually ships in 3-6 days

0

5

Honda 38201-759-003

FUSE, BLOCK (50A)

$12.99

$

Usually ships in 3-6 days

0

6

Honda 38202-762-003

FUSE, BLOCK (70A)

$13.99

$

Usually ships in 3-6 days

0

7

Honda 38221-762-003

CASE, MAIN FUSE

$27.99

$

Usually ships in 3-6 days

0

8

Honda 87117-ZC6-691

MARK, FUSE

$

$

Not available

9

Honda 87118-ZC6-000

MARK, BRANCH FUSE

$8.49

$

Usually ships in 3-6 days

0

10

Honda 90623-SB0-003

CLIP, WIRE HARNESS (8MM) *NH1* (BLACK)

$7.49

$

Usually ships in 3-6 days

0

11

Honda 90649-SC2-003

BAND, WIRE HARNESS (WHITE)

$9.49

$

Usually ships in 3-6 days

0

12

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$12.99

$

Usually ships in 3-6 days

0

13

Honda 90684-ZA0-601

CLIP, WIRE HARNESS

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90690-SA0-003

STRAP, WIRE HARNESS (25MM) (BLACK)

$9.99

$

Usually ships in 3-6 days

0

15

Honda 94070-08080

NUT-WASHER (8MM)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 95701-10012-08

BOLT, FLANGE (10X12)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 98200-30500

FUSE, BLADE (5A)

$1.99

$

In Stock, Qty 5

0

18

Honda 98200-31000

FUSE, BLADE (10A)

$1.99

$

Usually ships in 3-6 days

0
