EB12D AG (ECD) - Honda Generator, Made in Japan (SN: ECD-1000001 - ECD-1009999) LOWER COVER + CENTER BEAM Parts Diagram

Generator, Made in Japan

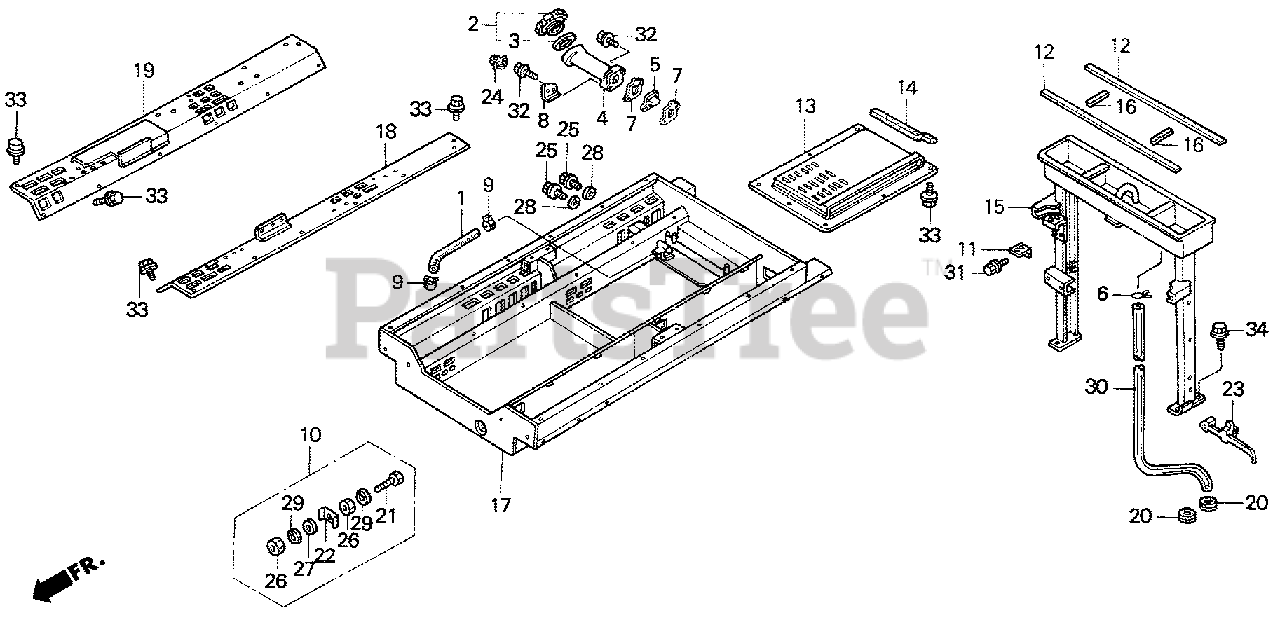

LOWER COVER + CENTER BEAM Parts Diagram

  • Title

1

Honda 15552-ZC6-000

TUBE, OIL DRAIN

$41.99

$

Usually ships in 3-6 days

0

2

Honda 15610-PC6-000

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER

$23.99

$

Usually ships in 3-6 days

0

2

Honda 15610-PE7-000

SEE PART DETAILS - SUP; CAP ASSY., OIL FILLER

$

$

Currently unavailable

3

Honda 15613-PC6-000

GASKET, OIL FILLER

$11.99

$

Usually ships in 3-6 days

0

4

Honda 15632-ZC6-000

PIPE, OIL

$88.99

$

Usually ships in 3-6 days

0

5

Honda 15638-ZC6-000

GUIDE, OIL

$20.99

$

Usually ships in 3-6 days

0

6

Honda 15772-551-000

CLIP, BREATHER TUBE

$2.99

$

In Stock, Qty 5

0

7

Honda 16663-ZG5-000

GASKET, RACK COVER (NOT AVAILABLE)

Note: Use up to Frame SN 1002746.

$

$

Currently unavailable

7

Honda 16663-ZG5-800

GASKET, RACK COVER (NON-ASBESTOS)

Note: Use from Frame SN 1002747.

$3.99

$

Usually ships in 3-6 days

0

8

Honda 17579-ZC6-000

BRACKET, FUEL TUBE

$8.99

$

Usually ships in 3-6 days

0

9

Honda 19506-KS6-700

CLAMP B, WATER HOSE

$10.99

$

Usually ships in 3-6 days

0

10

Honda 31428-899-840

TERMINAL SET, GROUND

$24.99

$

Usually ships in 3-6 days

0

11

Honda 38228-ZC6-000

BRACKET, MAIN FUSE

$9.99

$

Usually ships in 3-6 days

0

12

Honda 63147-ZC6-000

SEAL, COVER (UPPER)

$9.99

$

Usually ships in 3-6 days

0

13

Honda 63210-ZC6-000ZA

COVER, OIL PAN MAINTENANCE *NH105* (MAT BLACK)

$686.99

$

Usually ships in 3-6 days

0

14

Honda 63218-ZC6-000

OIL SEAL, PAN MAINTENANCE COVER

$5.49

$

Usually ships in 3-6 days

0

15

Honda 63570-ZC6-000ZA

BEAM, CENTER *B132* (JOHN BLUE)

$1261.99

$

Usually ships in 3-6 days

0

16

Honda 63577-ZC6-000

SEAL, CENTER BEAM (B)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 63710-ZC6-020ZA

COVER (LOWER) *NH105* (MAT BLACK)

$3085.99

$

Usually ships in 3-6 days

0

18

Honda 63722-ZC6-010ZA

PLATE, R. (LOWER) *NH105* (MAT BLACK)

$416.99

$

Usually ships in 3-6 days

0

19

Honda 63727-ZC6-010ZA

PLATE, L. (LOWER) *NH105* (MAT BLACK)

$624.99

$

Usually ships in 3-6 days

0

20

Honda 88911-MJ3-000

GROMMET, FENDER

$2.49

$

In Stock, Qty 5

0

21

Honda 90011-899-840

BOLT, HEX. (6X28)

$4.99

$

Usually ships in 3-6 days

0

22

Honda 90501-ZA7-640

RETAINER (6MM)

$3.99

$

In Stock, only 1 left!

0

23

Honda 90649-SC2-003

BAND, WIRE HARNESS (WHITE)

$9.49

$

Usually ships in 3-6 days

0

24

Honda 90659-680-013

CLIP, WIRE HARNESS

$8.49

$

Usually ships in 3-6 days

0

25

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

26

Honda 94001-06390-0S

NUT, HEX. (6MM)

$2.49

$

Usually ships in 3-6 days

0

27

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

28

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

29

Honda 94111-06800

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 95003-40003-60M

BULK HOSE, VINYL (12X16X3000) (12X16X690)

$

$

Not available

31

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

32

Honda 95701-06025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

33

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

34

Honda 95701-12020-08

BOLT, FLANGE (12X20)

$3.49

$

Usually ships in 3-6 days

0
