EB12D AG (ECD) - Honda Generator, Made in Japan (SN: ECD-1000001 - ECD-1009999) CAMSHAFT + VALVE Parts Diagram

Generator, Made in Japan

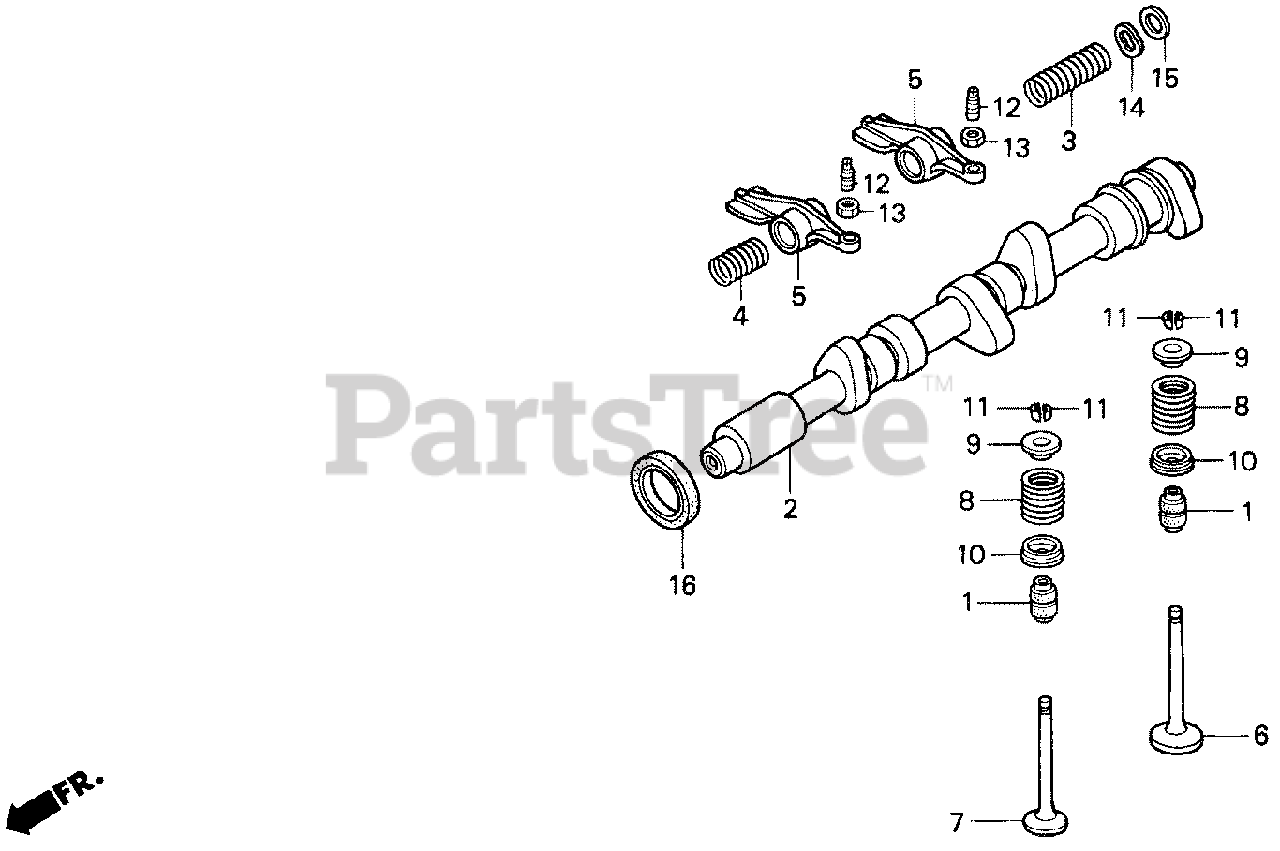

CAMSHAFT + VALVE Parts Diagram

  • Title

1

Honda 12209-ZG5-003

SEAL, VALVE STEM

$9.99

$

Usually ships in 3-6 days

0

2

Honda 14111-ZG5-000

CAMSHAFT

$588.99

$

Usually ships in 3-6 days

0

3

Honda 14485-ZG5-000

SPRING, ROCKER ARM A SHAFT

$3.49

$

Usually ships in 3-6 days

0

4

Honda 14486-ZG5-000

SPRING, ROCKER ARM B SHAFT

$3.49

$

Usually ships in 3-6 days

0

5

Honda 14620-ZG5-010

ARM, ROCKER

$

$

Not available

6

Honda 14711-ZG5-000

VALVE, IN.

$49.99

$

Usually ships in 3-6 days

0

7

Honda 14721-ZG5-000

VALVE, EX.

$43.99

$

Usually ships in 3-6 days

0

8

Honda 14751-ZG5-000

SPRING, VALVE

$

$

Not available

9

Honda 14765-PE0-000

RETAINER, VALVE SPRING

$

$

Not available

10

Honda 14775-PE0-000

SEAT, VALVE SPRING

$

$

Not available

11

Honda 14781-PE0-003

COTTER, VALVE (FUJI VALVE)

$

$

Not available

12

Honda 90041-ZG5-000

SCREW, TAPPET ADJUSTING

$7.49

$

Usually ships in 3-6 days

0

13

Honda 90206-250-000

NUT, TAPPET ADJ.

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90444-125-770

WASHER, WAVE

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90448-KE1-000

WASHER, THRUST (16MM)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 91214-ZG5-003

OIL SEAL (29X45X8)

$12.99

$

Usually ships in 3-6 days

0
