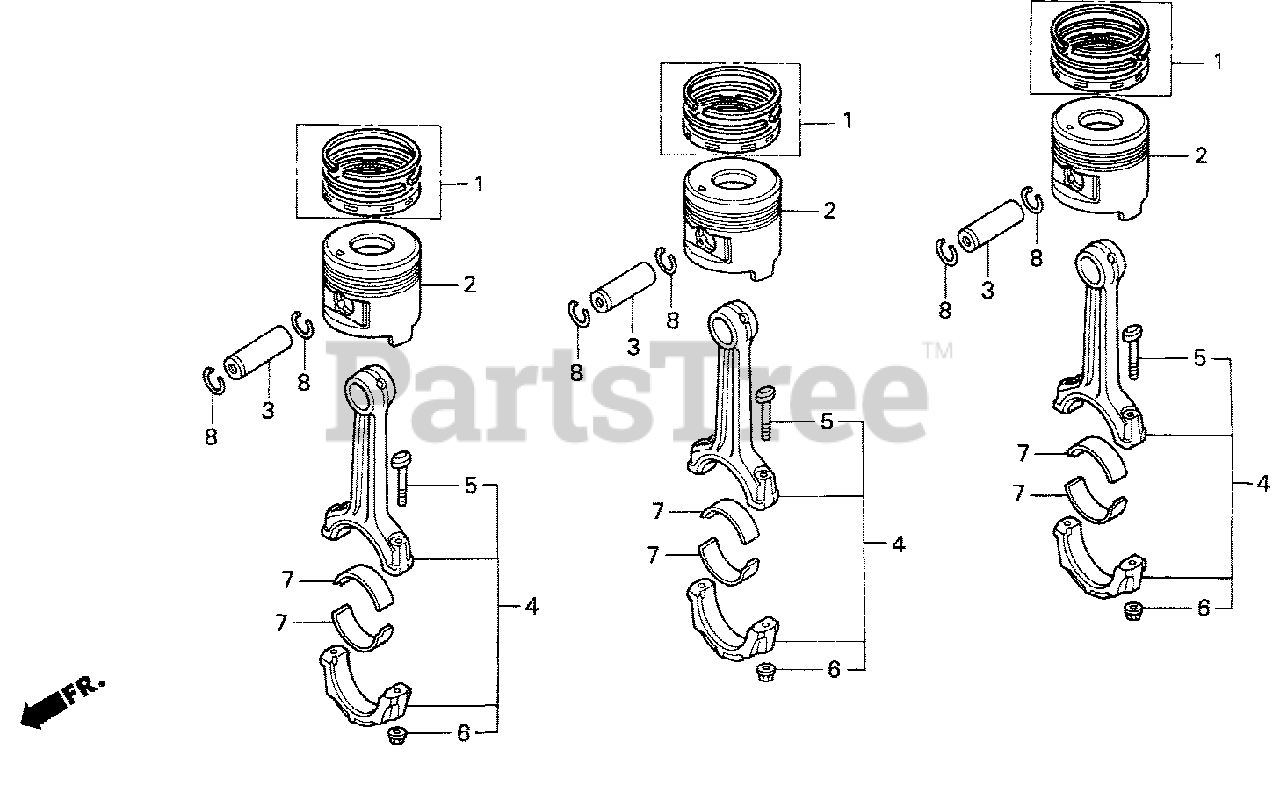

EB12D AG/A (ECD) - Honda Generator, Made in Japan (SN: ECD-1010001 - ECD-1099999) PISTON Parts Diagram

Generator, Made in Japan

PISTON Parts Diagram

  • Title

1

Honda 13010-ZG5-010

RING SET, PISTON (STD)

$80.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZG5-010

RING SET, PISTON (OS 0.25)

$89.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZG5-010

RING SET, PISTON (OS 0.50)

$

$

Not available

2

Honda 13101-ZG5-D41

PISTON (STD)

$

$

Not available

2

Honda 13104-ZG5-D60

PISTON (OS 0.25)

$

$

Not available

2

Honda 13105-ZG5-D60

PISTON (OS 0.50)

$

$

Not available

3

Honda 13111-ZG5-000

PIN, PISTON

$33.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZG3-000

ROD ASSY., CONNECTING

$279.99

$

Usually ships in 3-6 days

0

5

Honda 13204-ZG3-003

BOLT, CONNECTING ROD (8X51)

$7.99

$

Usually ships in 3-6 days

0

6

Honda 13205-ZG3-003

NUT, CONNECTING ROD

$4.99

$

Usually ships in 3-6 days

0

7

Honda 13211-ZG3-003

BEARING A, CONNECTING ROD (BLUE)

$26.99

$

Usually ships in 3-6 days

0

7

Honda 13212-ZG3-003

BEARING B, CONNECTING ROD (BLACK)

$26.99

$

Usually ships in 3-6 days

0

7

Honda 13213-ZG3-003

BEARING C, CONNECTING ROD (BROWN)

$26.99

$

Usually ships in 3-6 days

0

7

Honda 13214-ZG3-003

BEARING D, CONNECTING ROD (GREEN)

$26.99

$

Usually ships in 3-6 days

0

7

Honda 13215-ZG3-003

BEARING E, CONNECTING ROD (YELLOW)

$26.99

$

Usually ships in 3-6 days

0

7

Honda 13216-ZG3-003

BEARING, CONNECTING ROD (F)(PINK)

$26.99

$

Usually ships in 3-6 days

0

7

Honda 13217-ZG3-003

BEARING G, CONNECTING ROD (RED)

$24.99

$

Usually ships in 3-6 days

0

8

Honda 90601-ZG3-000

CLIP, PISTON PIN

$2.49

$

Usually ships in 3-6 days

0
