EB12D A (ECD) - Honda Generator, Made in Japan (SN: ECD-1000001 - ECD-1099999) SIDE COVER Parts Diagram

Generator, Made in Japan

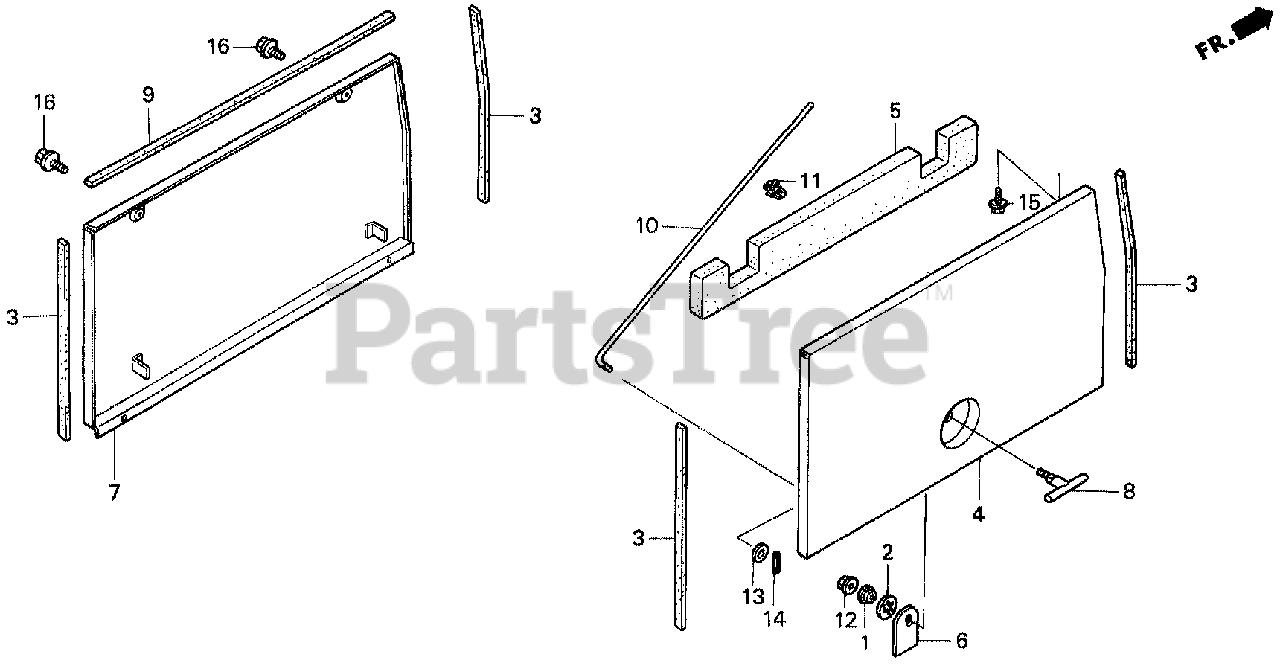

SIDE COVER Parts Diagram

  • Title

1

Honda 24124-750-A00

COLLAR, CLUTCH ROD

$5.99

$

Usually ships in 3-6 days

0

2

Honda 42915-959-000

SPRING, ADJUSTING ARM

$6.99

$

Usually ships in 3-6 days

0

3

Honda 63147-ZC6-000

SEAL, COVER (UPPER)

$8.99

$

Usually ships in 3-6 days

0

4

Honda 63150-ZC6-631ZA

COVER, MAINTENANCE *NH213M* (MILD SILVER METALLIC)

$

$

Not available

5

Honda 63154-ZC6-000

SEAL, MAINTENANCE COVER

$42.99

$

Usually ships in 3-6 days

0

6

Honda 63157-ZC6-000

PLATE, LOCK

$18.99

$

Usually ships in 3-6 days

0

7

Honda 63170-ZC6-630ZA

COVER, R. SIDE *NH213M* (MILD SILVER METALLIC)

$

$

Not available

8

Honda 63182-ZC6-000

HANDLE

$39.99

$

Usually ships in 3-6 days

0

9

Honda 63219-ZC6-000

RUBBER, SIDE COVER SEAL

$12.99

$

Usually ships in 3-6 days

0

10

Honda 63228-ZC6-000

STICK, MAINTENANCE COVER STOPPER

$

$

Not available

11

Honda 90671-ZC6-003

SEE PART DETAILS - PRI; CLIP, ROD HOLDER

$

$

Not available

12

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

13

Honda 94101-10800

WASHER, PLAIN (10MM)

$2.49

$

In Stock, only 2 left!

0

14

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0

15

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

16

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0
